11. Make sure that all parts are properly tightened before the weight bench is used. Note: Some hardware
may be left over after assembly is completed. The use of all remaining parts will be explained in ADJUSTMENT,
starting on page 10.

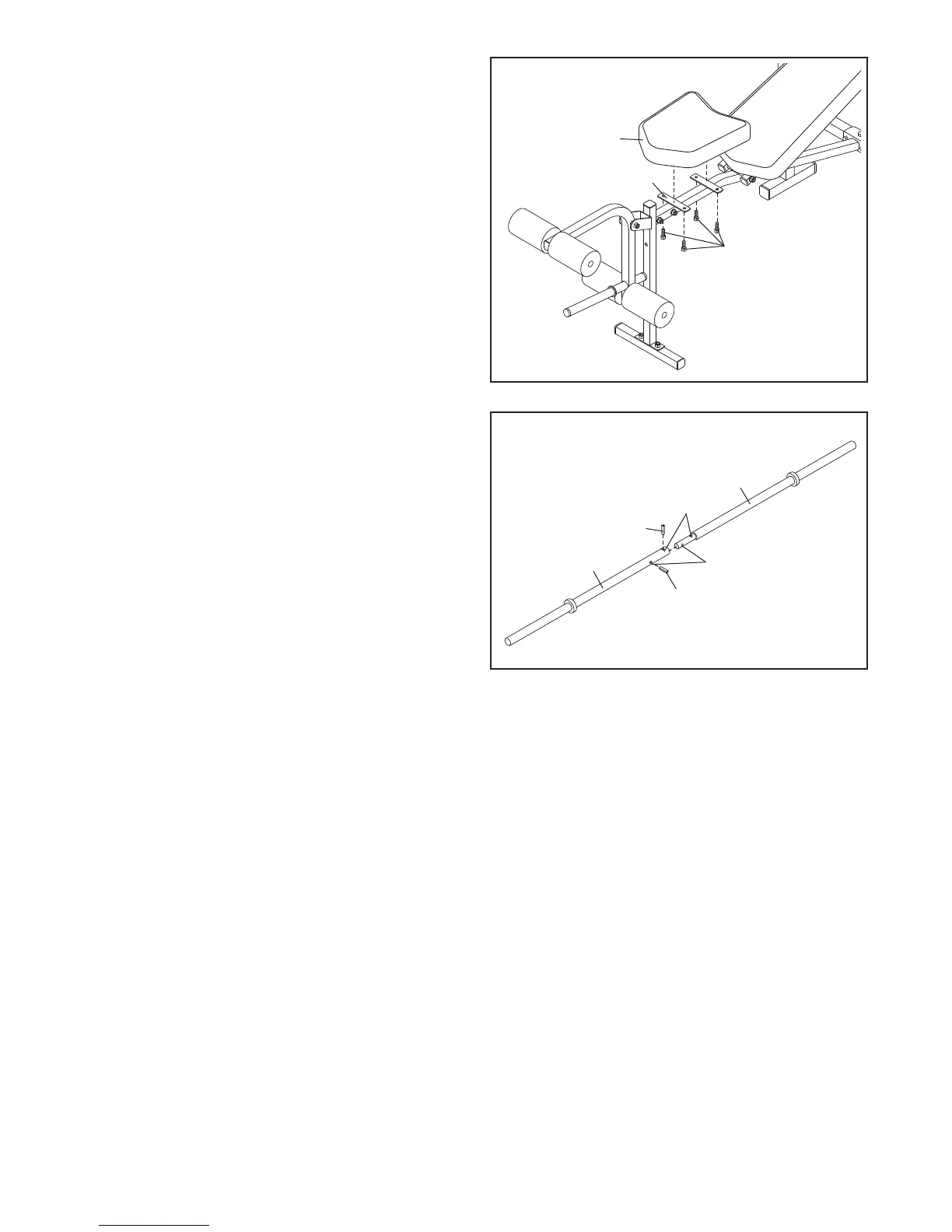

10. Insert the Inner Bar (12) into the Outer Bar (25)
and align the indicated holes. Using a hammer,
tap the two Roll Pins (19) into the holes until they
are flush with the Outer Bar.
10
12
25
19
19
Holes
Holes
9. Attach the Seat (11) to the Frame (2) with four M6
x 16mm Screws (29).
9
1
1
29
2
