Before beginning assembly, carefully read the
following information and instructions:
•
Assembly requires two persons.
• For help identifying small parts, see the PART
IDENTIFICATION CHART on page 5.
•
Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
m
aterials until assembly is completed.
In addition to the included hex key
and grease packets, the following tools (not
included) may be required for assembly:
• Two adjustable spanners
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end span-
ners, or a set of ratchet spanners.
Make Assembly Easier
This manual is designed to ensure that the
weight bench can be assembled successfully
by anyone. Most people find that by setting
aside plenty of time, assembly will go smoothly.
ASSEMBLY

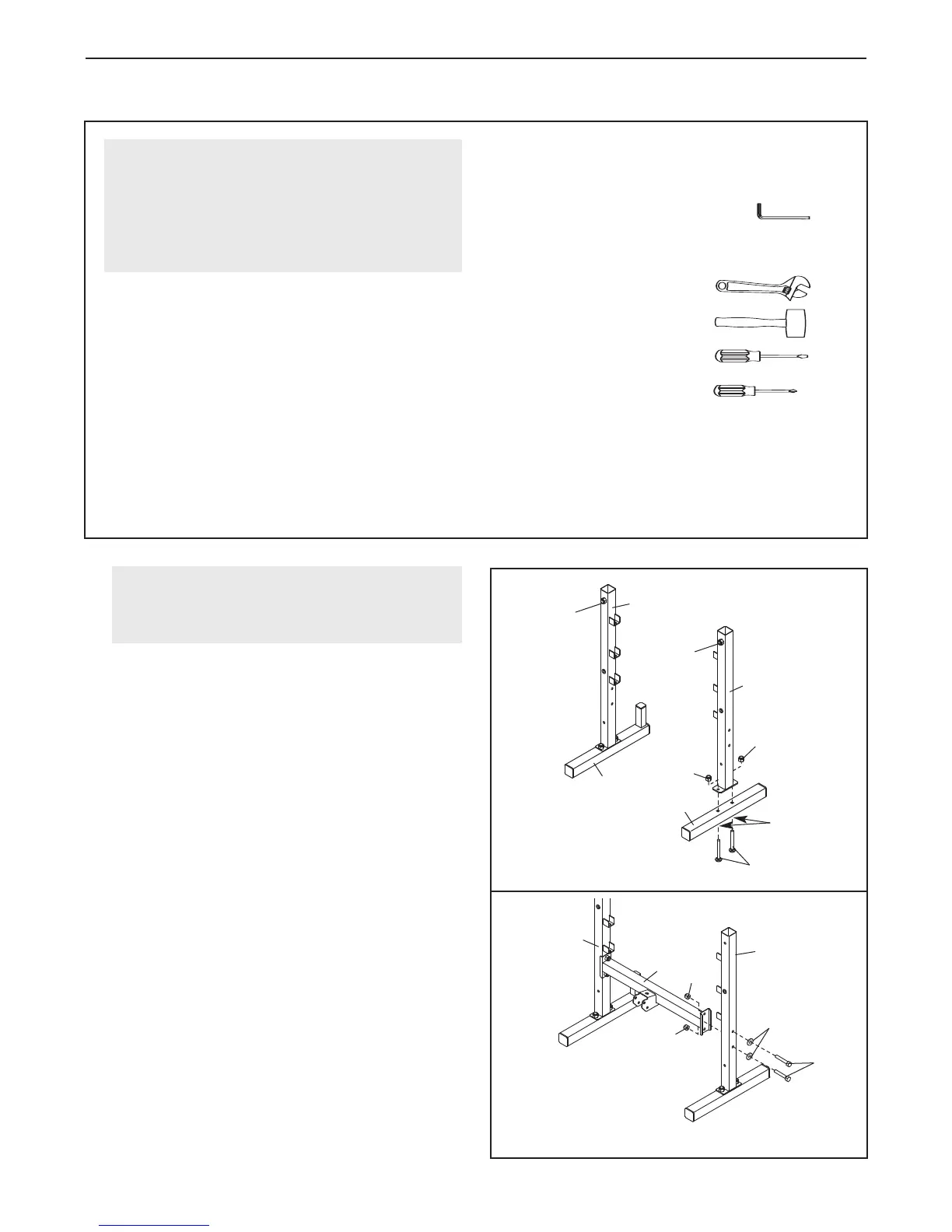

1.
Orient the Left Base (4) with the recessed holes
facing downward. Attach the Left Upright (6) to
the Left Base with two M10 x 63mm Carriage
Bolts (68) and two M10 Black Nylon Locknuts (66).
Do not tighten the Nylon Locknuts yet.
Attach the Right Upright (7) to the Right Base
(5) in the same way
.
2. Attach the Crossbar (12) to the Left Upright (6)
with two M10 x 65mm Bolts (55), two M10 Black
W
ashers (64), and two M10 Black Nylon Locknuts
(66). Do not tighten the Nylon Locknuts yet.
Attach the Crossbar (12) to the Right
Upright (7) in the same way.
See steps 1–2. Tighten the M10 Black Nylon
Locknuts (66).
2
1
12
7
66
66
64
55
6
6
7
5
Nut
68
Recessed
Holes
4
Nut
66
66
Before assembling the weight bench, make
sure that you have read and understand the
information in the box above.
To Next Page
