12
14
15
16

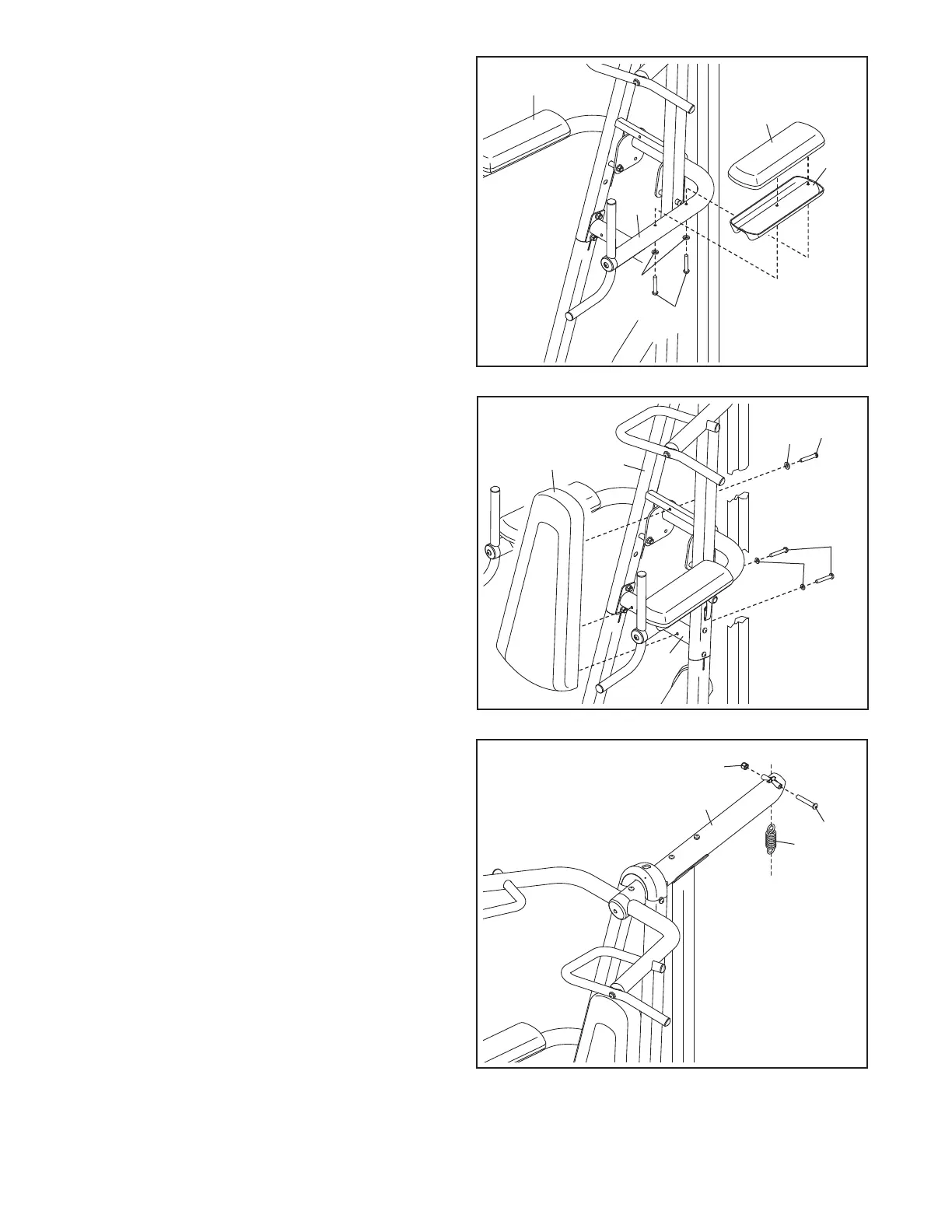

14. Attach an Armrest Base (18) and an Armrest
(19) to the Dip Arm (10) with two M6 x 65mm
Screws (34) and two M6.5 Curved Washers
(36).
Attach the other Armrest (19) in the same
way.
19
18
17
43
31
34
36
35
30
11
36
10
34
19
15. Attach the Backrest (17) to the Front Frame (4)
and the Backrest Frame (8) with an M6 x 35mm
Screw (43), an M6 Washer (31), two M6 x
65mm Screws (34), and two M6.5 Curved
Washers (36).
16. Insert the Spring (11) upward into the Top
Frame (6).
Attach the Spring (11) to the Top Frame (6) with
an M10 x 85mm Bolt (30) and an M10 Locknut
(35).
4
6
8
To Next Page
