8

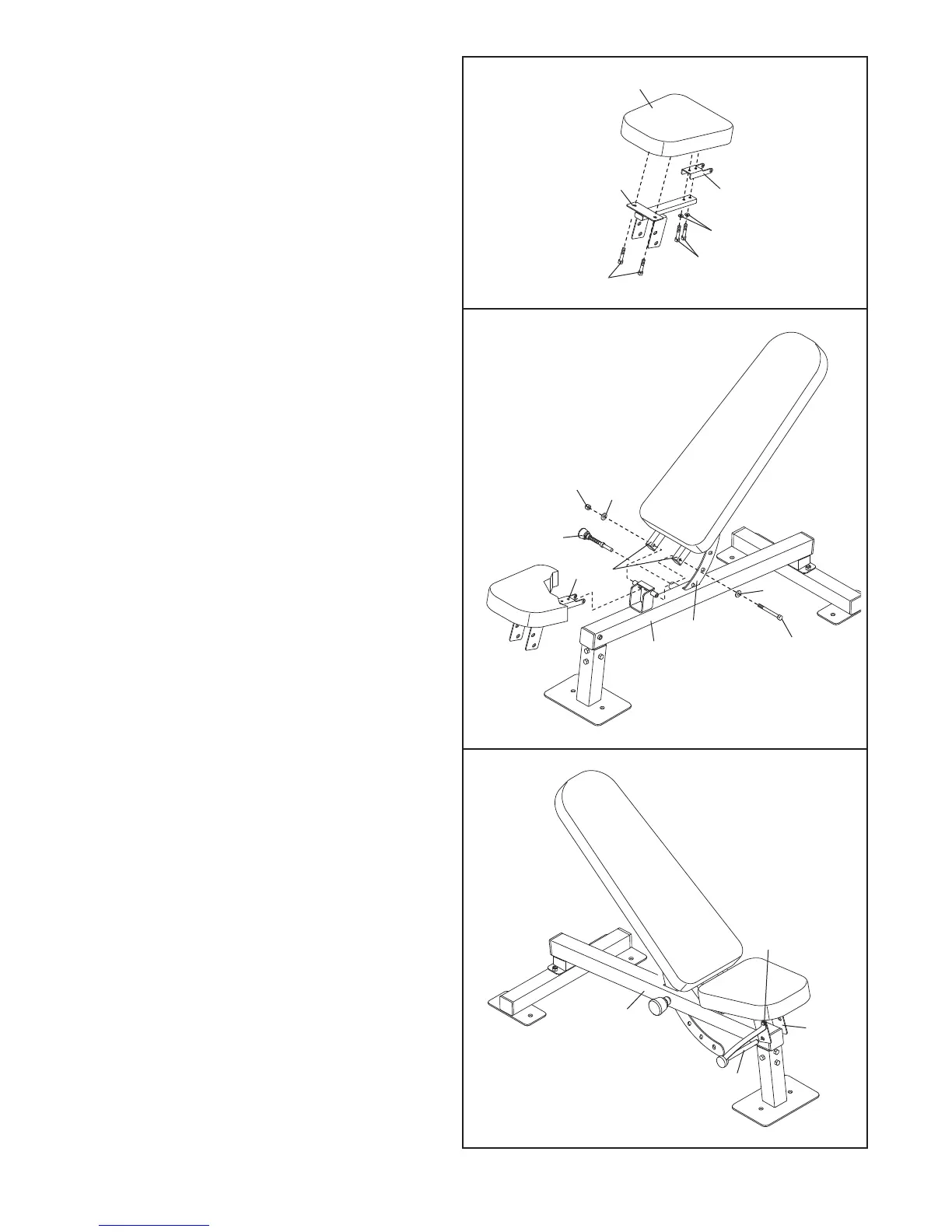

6. Attach the Seat (17) and the Seat Carriage
(14) to the Seat Frame (13) with two M6 x
1
5mm Screws (30), two M6 x 35mm Screws
(31), and two M6 Washers (32).
7. Insert the Backrest Bracket (23) into the slot in
the Bench Frame (8). Apply a portion of the
included grease to an M10 x 180mm Bolt (36).
Attach the Backrest Frames (19) and the Seat
Carriage (14) to the Bench Frame with the
Bolt, two M10 Washers (37), and an M10
Nylon Locknut (34).
Do not overtighten the
Nylon Locknut; the Backrest Frames and
the Seat Carriage must pivot freely.
Tighten the Backrest Knob (16) into the Bench
Frame (8). Make sure that the Backrest
Knob engages a hole in the Backrest
Bracket (23).
See step 4 and tighten the four M8 Nylon
Locknuts (26).
See step 5 and tighten the four M6 x 55mm
Screws (35).
8. Insert the Seat Pin (18) through the Seat
Frame (13) and the Bench Frame (8).
Attach the strap on the Seat Pin (18) to the
Seat Frame (13) as shown with an M4 x
15mm Screw (28).
6
17
14
32
31
30
13
14
34
37
37
36
19
16
8
7
8
8
18
13
28
23
To Next Page
