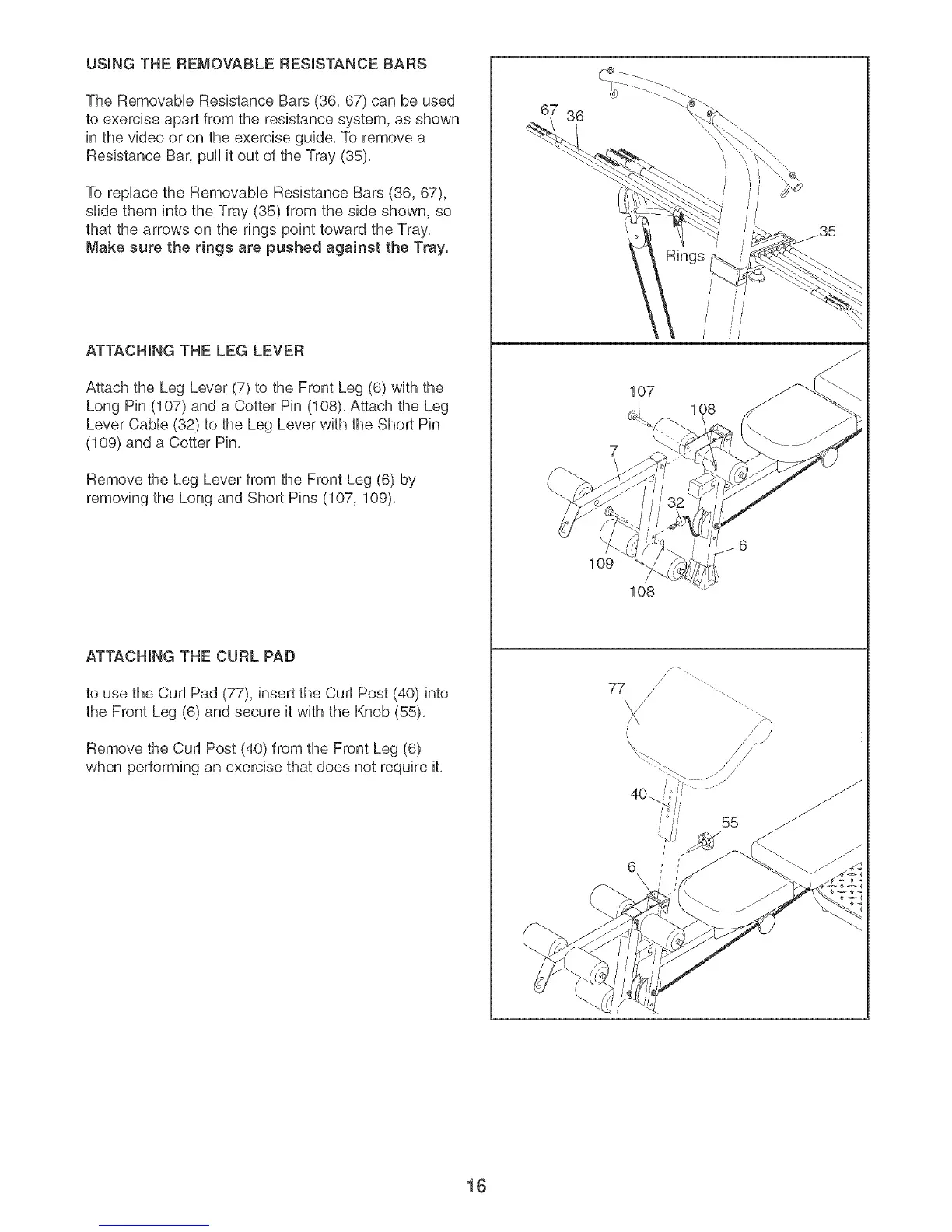

USmNGTHE REMOVABLE RESmSTANCE BARS
The Removabb Resistance Bars (36, 67) can be used
to exercise apart from the resistance system, as shown
in the video or on the exercise guide, To remove a
Resistance Bar, pull it out of the Tray (35),
To repUacethe RemovaMe Resistance Bars (36, 67),
slide them into the Tray (35) from the side shown, so
that the arrows on the rings point toward the Tray,
Make sure the rings are pushed against the Tray,
ATTACHING THE LEG LEVER
Attach the Leg Lever (7) to the Front Leg (6) with the
Long Pin (107) and a Cotter Pin (108), Attach the Leg
Lever CaMe (32) to the Leg Lever with the Short Pin
(109) and a Cotter Pin,
Remove the Leg Lever from the Front Leg (6) by
removing the Long and Short Pins (107, 109),
ATTACHING THE CURL PAD
to use the CurUPad (77), insert the CurUPost (40) into
the Front Leg (6) and secure it with the Knob (55),
Remove the Curl Post (40) from the Front Leg (6)
when performing an exercise that does not require it,
67 36
107
108
6
109
108
77 / ...........
16
