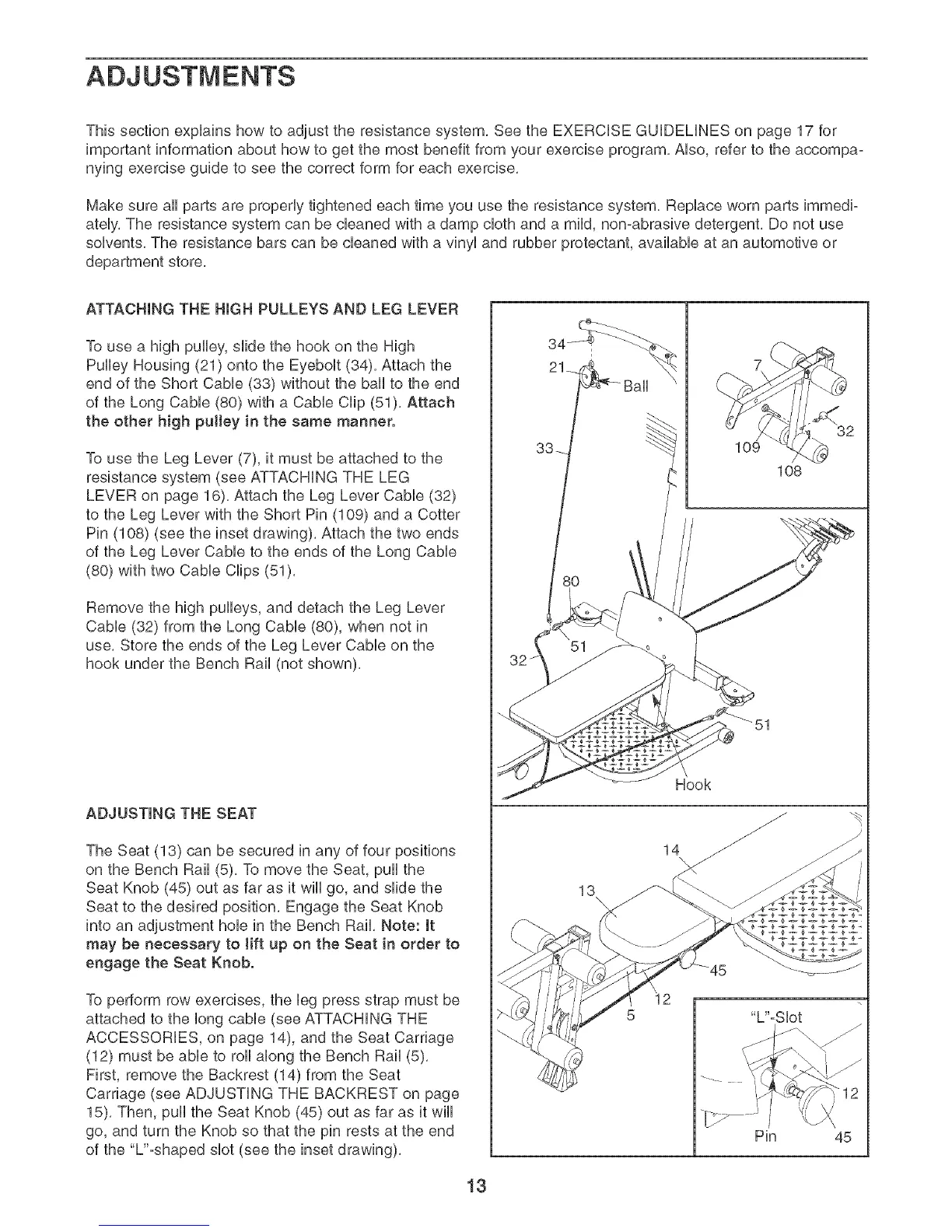

ADJUSTMENTS
This section explains how to adjust the resistance system, See the EXERCISE GUiDELiNES on page 17 for
important information about how to get the most benefit from your exercise program, Also, refer to the accompa-
nying exercise guide to see the correct form for each exercise,
Make sure all parts are properly tightened each time you use the resistance system, Replace worn parts immedi-
ately, The resistance system can be cbaned with a damp cloth and a mild, non-abrasive detergent, Do not use
solvents, The resistance bars can be cbaned with a vinyl and rubber protectant, availabb at an automotive or
department store,
ATTACHING THE HIGH PULLEYS AND LEG LEVER
To use a high pulby, slide the hook on the High
Pulby Housing (21) onto the Eyebolt (34), Attach the
end of the Short Cabb (33) without the ball to the end
of the Long Cabb (80) with a Cabb Clip (51), Attach
the other high pulley in the same manner.
To use the Leg Lever (7), it must be attached to the
resistance system (see ATTACHING THE LEG
LEVER on page 16), Attach the Leg Lever Cable (32)
to the Leg Lever with the Short Pin (109) and a Cotter
Pin (108) (see the inset drawing), Attach the two ends
of the Leg Lever Cable to the ends of the Long Cable
(80) with two Cable Clips (51),
Remove the high pulleys, and detach the Leg Lever
Cable (32) from the Long Cable (80), when not in
use, Store the ends of the Leg Lever Cable on the
hook under the Bench Rail (not shown),
ADJUSTING THE SEAT
The Seat (13) can be secured in any of four positions
on the Bench Rail (5), To move the Seat, pull the
Seat Knob (45) out as far as it will go, and slide the
Seat to the desired position, Engage the Seat Knob
into an adjustment hob in the Bench Rail, Note: It
may be necessary to Hft up on the Seat in order to
engage the Seat Knob.
To perform row exercises, the leg press strap must be
attached to the long cable (see ATTACHING THE
ACCESSORIES, on page 14), and the Seat Carriage
(12) must be able to roll along the Bench Rail (5),
First, remove the Backrest (14) from the Seat
Carriage (see ADJUSTING THE BACKREST on page
15), Then, puii the Seat Knob (45) out as far as it wiii
go, and turn the Knob so that the pin rests at the end
of the "L"-shaped slot (see the inset drawing),
13
8O
51
13
\
2
109
108
Hook
14_
12
i
Pin 45
To Next Page
