3
4

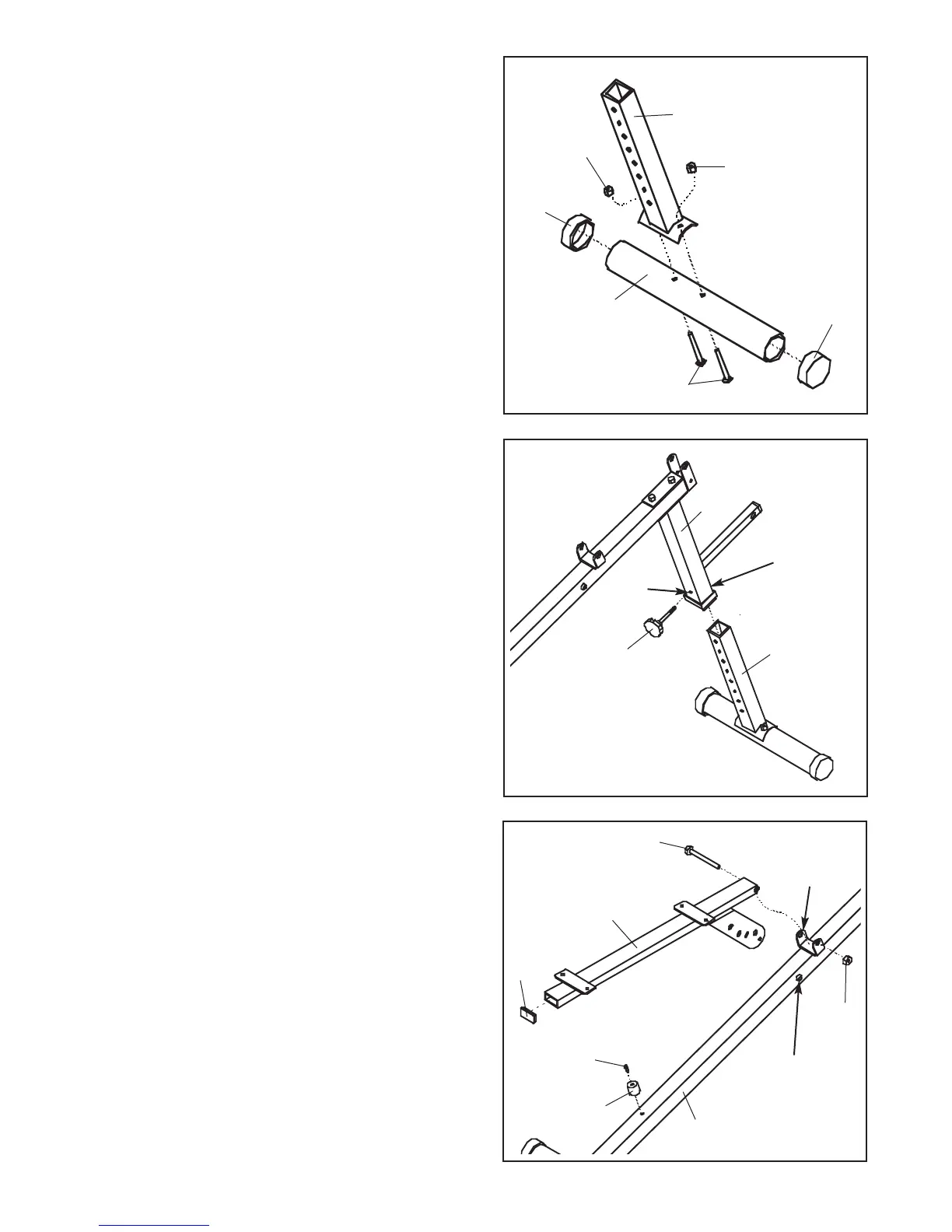

3. Locate the second Stabiliser (2) and note the inden-
tations around the holes. Insert two M10 x 72mm
Carriage Bolts (21) through the holes in the
Stabiliser so that the bolt heads fit into the indenta-
tions.
Slide the bracket on the Adjustment Leg (7) onto
the two M10 x 72mm Carriage Bolts (21) in the
Stabiliser (2). Tighten an M10 Nylon Locknut (18)
onto each Bolt.
Press a 60mm Round Endcap (10) onto each end
of the Stabiliser (2).
4. Slide the Adjustment Leg (7) up into the Leg (6).
Line up one of the holes in the Adjustment Leg with
the indicated hole in the Leg.
Insert the Adjustment Knob (23) into the holes in
the Leg (6) and the Adjustment Leg (7). Fully tighten
the Adjustment Knob into the indicated welded nut.
6
18
7
18
10
7
6
Welded
Nut
Hole
23
2
21
10
5.
Attach a 30mm x 25mm Bumper (26) to the indicated
hole in the Main Frame (1) with a Bumper Screw
(25).
Press a 25mm x 50mm Inner Cap (14) into the indi
-
cated end of the Backrest Frame (4).
Lubricate an M10 x 80mm Bolt (17) with grease.
Hold the opposite end of the Backrest Frame (4)
inside the indicated bracket on the Main Frame (1).
Attach the Backrest Frame to the Main Frame with
the bolt and an M10 Nylon Locknut (18).
Do not
overtighten the Nylon Locknut; the Backrest
Frame must pivot easily.
17
14
1
25
26
Bracket
18
4
5
Welded
Tube
To Next Page
