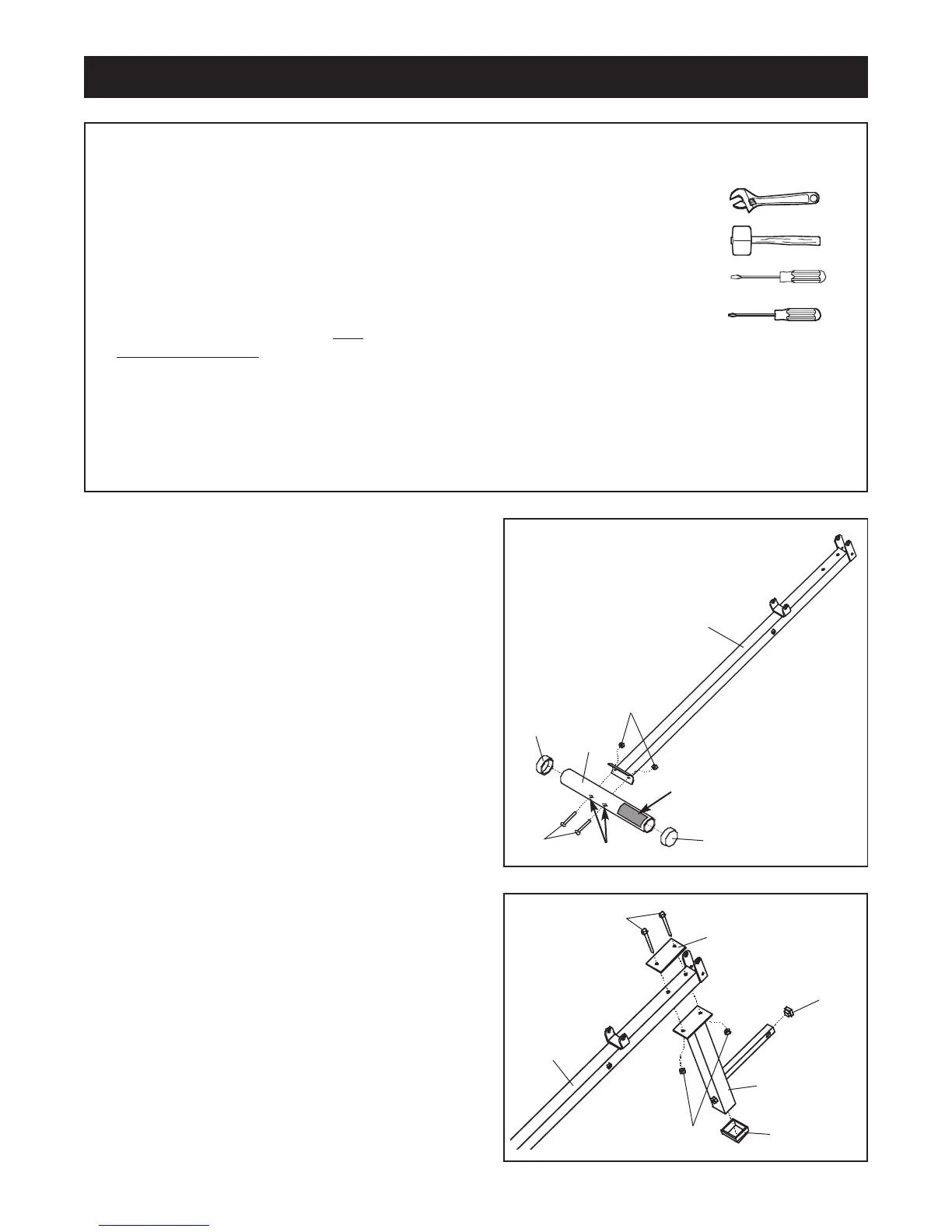

1. Before assembling this product, make sure that
you understand the information in the box
above.
Orient the Stabiliser (2) with the warning decal as
shown. Insert two M10 x 72mm Carriage Bolts (21)
through the holes in the Stabiliser so that the bolt
heads fit into the indentations.
Slide the bracket on the Main Frame (1) onto the
two M10 x 72mm Carriage Bolts (21) in the
Stabiliser (2). Make sure that the Main Frame is
turned as shown. Tighten an M10 Nylon Locknut
(18) onto each Carriage Bolt.
Press a 60mm Round Endcap (10) onto each end of
the Stabiliser (2).
1
Before beginning assembly, carefully read the
following information and instructions. If assis-
tance is needed, call
08457 089 009.
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• To identify small parts, use the Part
Identification Chart in the centre of this manual.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
The following tools (not included) are required
for assembly:
• two adjustable spanners
• one rubber mallet
• one standard screwdriver
• one phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end span-
ners, or a set of ratchet spanners.
Assembly
1
10
10
18
21
Decal
2
2.
Press a Square Bushing (22) onto the lower end of
the Leg (6). Press a 25mm Square Inner Cap (24)
into the tube on the Leg.
Insert two M10 x 70mm Bolts (19) through the holes
in the Support Plate (27) and then through the indi-
cated holes in the Main Frame (1).
Slide the bracket on the Leg (6) onto the two M10 x
70mm Bolts (19). Tighten two M10 Nylon Locknuts
(18) onto the Bolts.
19
1
6
18
24
22
27
2
Indentations
To Next Page
