Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• A
s you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
•
For help identifying small parts, use the PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• two adjustable spanners
• one rubber mallet
• one standard screwdriver
• one Phillips screwdriver
• lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end span-
ners, or a set of ratchet spanners.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled suc-
cessfully by anyone. However, it is important to
realize that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
ASSEMBLY
1
2
68
59
59
Indent
Indent
These
holes are
smaller
than on
the oppo-
site side.

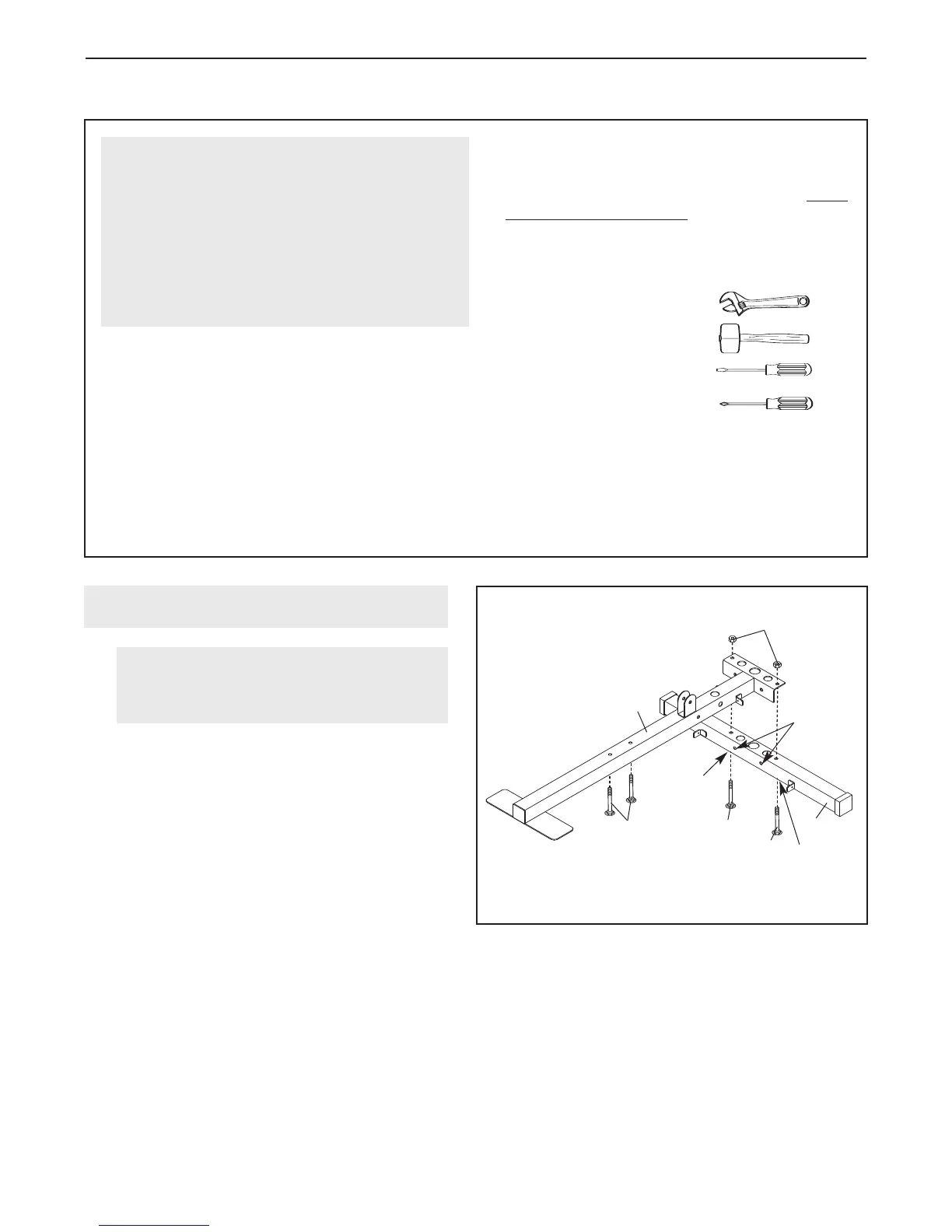

1.
Orient the Stabilizer (2) as shown with the
indents around the holes facing downward.
Attach the Base (1) to the Stabilizer with two
M10 x 65mm Carriage Bolts (59) and two M10
Nylon Locknuts (68).
Do not tighten the Nylon
Locknuts yet.
Insert two M8 x 63mm Carriage Bolts (58) into
the bottom of the Base (1). Note: It may be
helpful to place tape over the bolt heads to
hold them in place.
FRAME ASSEMBLY
Before beginning assembly, be sure that
you have read and understand the infor-
mation in the box above.
1
58
To Next Page
