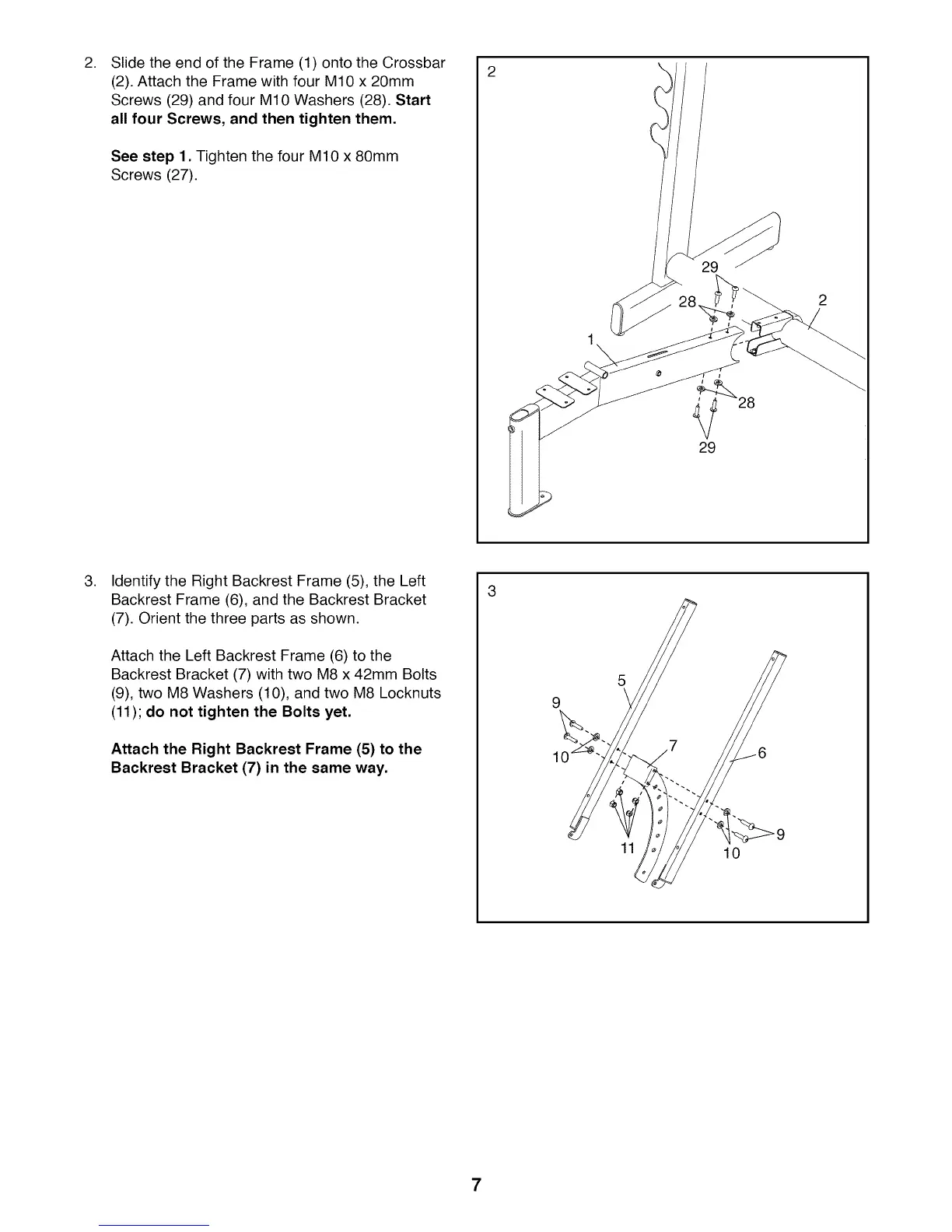

Slide the end of the Frame (1) onto the Crossbar
(2). Attach the Frame with four M10 x 20mm
Screws (29) and four M10 Washers (28). Start
all four Screws, and then tighten them.
See step 1. Tighten the four M10 x 80mm
Screws (27).
29
.
Identify the Right Backrest Frame (5), the Left
Backrest Frame (6), and the Backrest Bracket
(7). Orient the three parts as shown.
Attach the Left Backrest Frame (6) to the
Backrest Bracket (7) with two M8 x 42mm Bolts
(9), two M8 Washers (10), and two M8 Locknuts
(11); do not tighten the Bolts yet.
Attach the Right Backrest Frame (5) to the
Backrest Bracket (7) in the same way.
9
5
11
10
7
