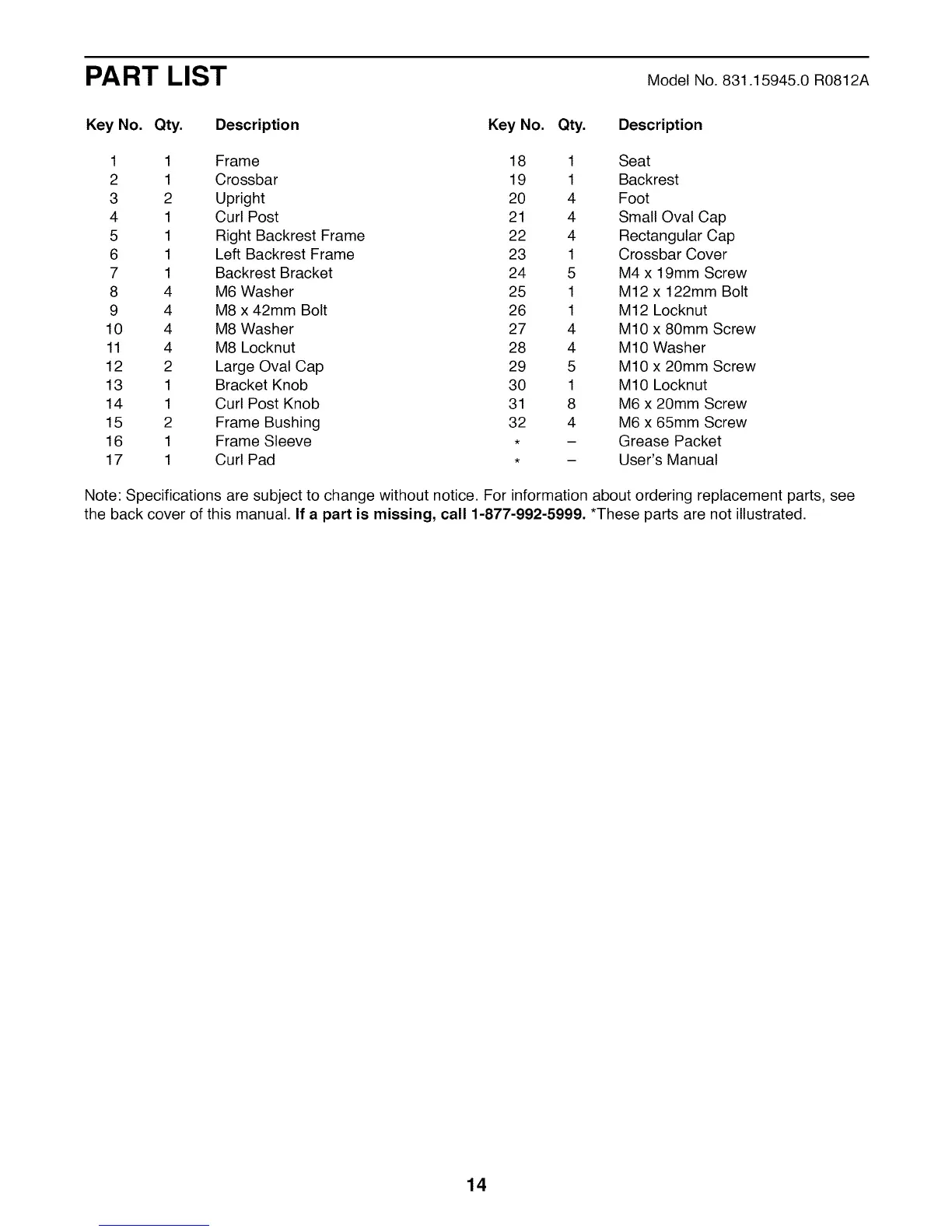

PART LIST Model No. 831.15945.0 R0812A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 18 1 Seat
2 1 Crossbar 19 1 Backrest
3 2 Upright 20 4 Foot
4 1 Curl Post 21 4 Small Oval Cap
5 1 Right Backrest Frame 22 4 Rectangular Cap
6 1 Left Backrest Frame 23 1 Crossbar Cover
7 1 Backrest Bracket 24 5 M4 x 19mm Screw
8 4 M6 Washer 25 1 M12 x 122mm Bolt
9 4 M8 x 42mm Bolt 26 1 M12 Locknut
10 4 M8 Washer 27 4 M10 x 80mm Screw
11 4 M8 Locknut 28 4 M10 Washer
12 2 Large Oval Cap 29 5 M10 x 20mm Screw
13 1 Bracket Knob 30 1 M10 Locknut
14 1 Curl Post Knob 31 8 M6 x 20mm Screw
15 2 Frame Bushing 32 4 M6 x 65mm Screw
16 1 Frame Sleeve , - Grease Packet
17 1 Curl Pad , - User's Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. If a part is missing, call 1-877-992-5999. *These parts are not illustrated.
