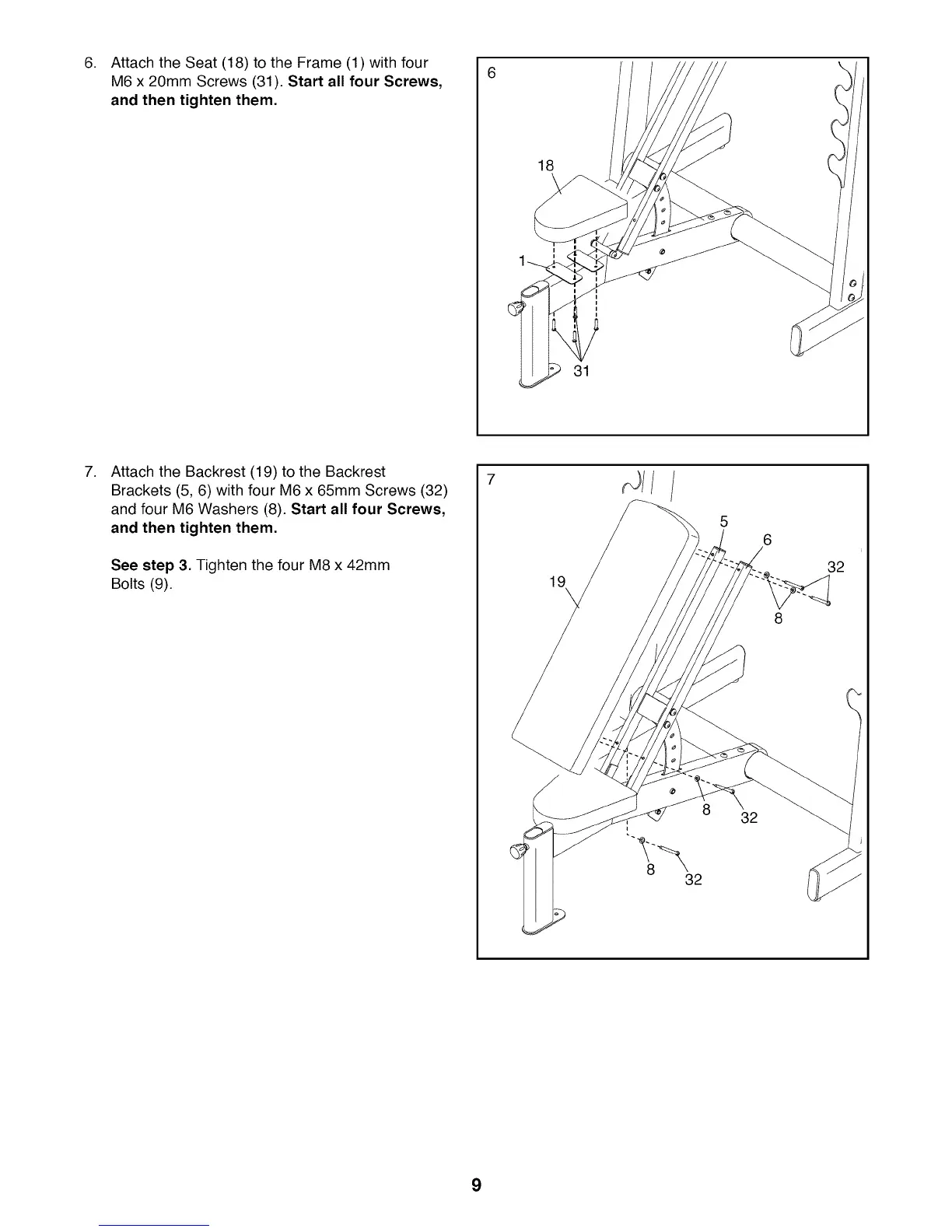

Attach the Seat (18) to the Frame (1) with four
M6 x 20mm Screws (31). Start all four Screws,
and then tighten them.
18
31
°
Attach the Backrest (19) to the Backrest
Brackets (5, 6) with four M6 x 65mm Screws (32)
and four M6 Washers (8). Start all four Screws,
and then tighten them.
See step 3. Tighten the four M8 x 42mm
Bolts (9).
19
\
32
5
32
32
9
