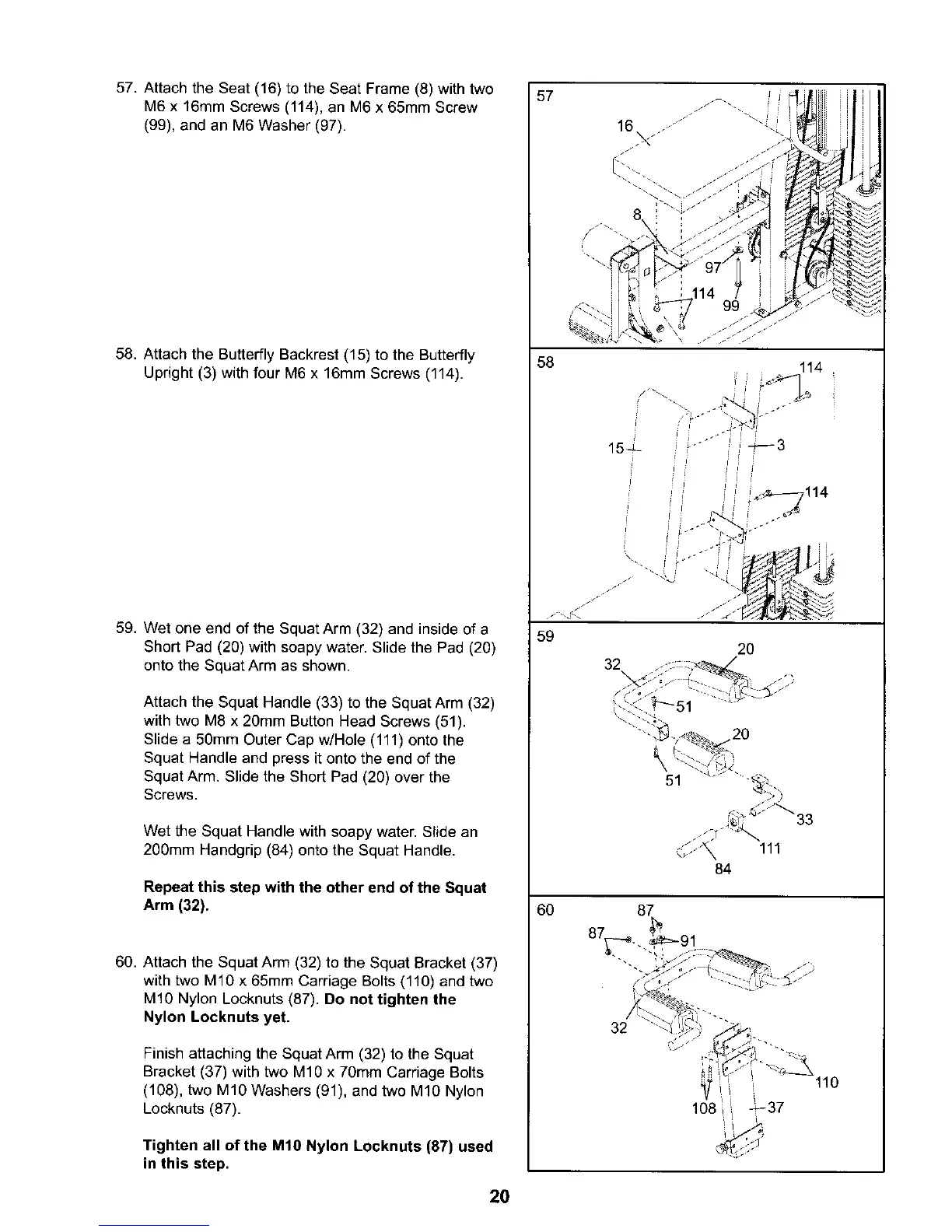

57.AttachtheSeat(16)totheSeatFrame(8)withtwo
M6x16mmScrews(114),anM6x 65mmScrew
(99),andanM6Washer(97).
58.AttachtheButterflyBackrest(15)totheButterfly
Upright(3)withfourM6x 16mmScrews(114).
59.WetoneendoftheSquatArm(32)andinsideofa
ShortPad(20)withsoapywater.SlidethePad(20)
ontotheSquatArmasshown.
AttachtheSquatHandle(33)totheSquatArm(32)
withtwoM8x20mmButtonHeadScrews(51).
Slidea50mmOuterCapw/Hole(111)ontothe
SquatHandleandpressitontotheendofthe
SquatArm.SlidetheShortPad(20)overthe
Screws.
WettheSquatHandlewithsoapywater.Slidean
200mmHandgrip(84)ontotheSquatHandle.
Repeat this step with the other end of the Squat
Arm (32).
60. Attach the Squat Arm (32) to the Squat Bracket (37)
with two M10 x 65mm Carriage Bolts (110) and two
M10 Nylon Locknuts (87). Do not tighten the
Nylon Locknuts yet.
Finish attaching the Squat Arm (32) to the Squat
Bracket (37) with two M10 x 70mm Carriage Bolts
(108), two M10 Washers (91), and two M10 Nylon
Locknuts (87).
Tighten all of the M10 Nylon Locknuts (87) used
in this step.
57
58
59
=
15_-
,114
6O
,_;-"_ 111
84
32
110
20
