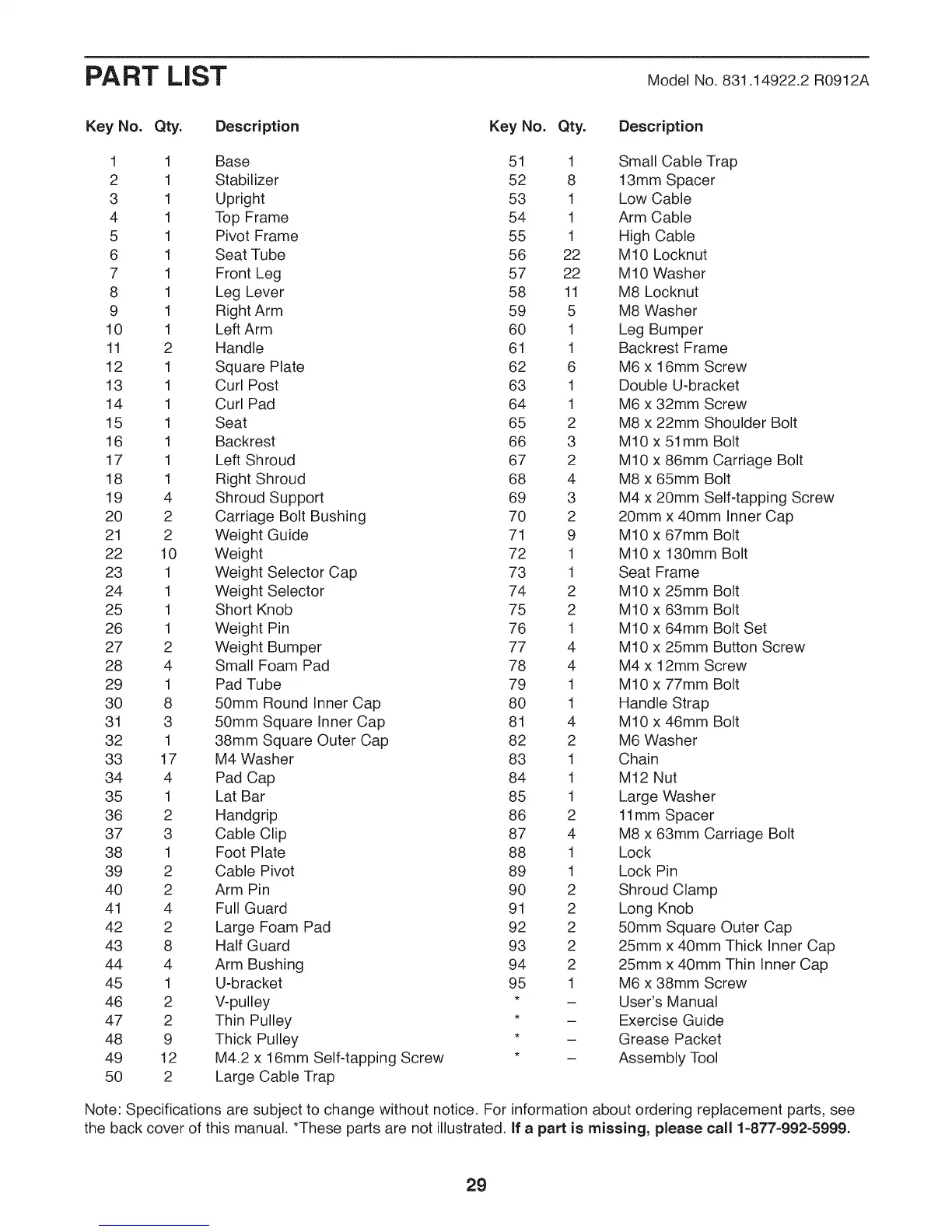

PART LIST Model No. 831.14922.2 R0912A
Key No. Qty. Description Key No. Qty. Description
1 1 Base 51 1 Small Cable Trap
2 1 Stabilizer 52 8 13mm Spacer
3 1 Upright 53 1 Low Cable
4 1 Top Frame 54 1 Arm Cable
5 1 Pivot Frame 55 1 High Cable
6 1 Seat Tube 56 22 M10 Locknut
7 1 Front Leg 57 22 M10 Washer
8 1 Leg Lever 58 11 M8 Locknut
9 1 Right Arm 59 5 M8 Washer
10 1 Left Arm 60 1 Leg Bumper
11 2 Handle 61 1 Backrest Frame
12 1 Square Plate 62 6 M6 x 16mm Screw
13 1 Curl Post 63 1 Double U-bracket
14 1 Curl Pad 64 1 M6 x 32mm Screw
15 1 Seat 65 2 M8 x 22mm Shoulder Bolt
16 1 Backrest 66 3 M10 x 51mm Bolt
17 1 Left Shroud 67 2 M10 x 86mm Carriage Bolt
18 1 Right Shroud 68 4 M8 x 65mm Bolt
19 4 Shroud Support 69 3 M4 x 20mm Self-tapping Screw
20 2 Carriage Bolt Bushing 70 2 20mm x 40mm Inner Cap
21 2 Weight Guide 71 9 M10 x 67mm Bolt
22 10 Weight 72 1 M10 x 130mm Bolt
23 1 Weight Selector Cap 73 1 Seat Frame
24 1 Weight Selector 74 2 M10 x 25mm Bolt
25 1 Short Knob 75 2 M10 x 63mm Bolt
26 1 Weight Pin 76 1 M10 x 64mm Bolt Set
27 2 Weight Bumper 77 4 M10 x 25mm Button Screw
28 4 Small Foam Pad 78 4 M4 x 12mm Screw
29 1 Pad Tube 79 1 M10 x 77mm Bolt
30 8 50mm Round Inner Cap 80 1 Handle Strap
31 3 50mm Square Inner Cap 81 4 M10 x 46mm Bolt
32 1 38mm Square Outer Cap 82 2 M6 Washer
33 17 M4 Washer 83 1 Chain
34 4 Pad Cap 84 1 M12 Nut
35 1 Lat Bar 85 1 Large Washer
36 2 Handgrip 86 2 11mm Spacer
37 3 Cable Clip 87 4 M8 x 63mm Carriage Bolt
38 1 Foot Plate 88 1 Lock
39 2 Cable Pivot 89 1 Lock Pin
40 2 Arm Pin 90 2 Shroud Clamp
41 4 Full Guard 91 2 Long Knob
42 2 Large Foam Pad 92 2 50mm Square Outer Cap
43 8 Half Guard 93 2 25mm x 40mm Thick Inner Cap
44 4 Arm Bushing 94 2 25mm x 40mm Thin Inner Cap
45 1 U-bracket 95 1 M6 x 38mm Screw
46 2 V-pulley * - User's Manual
47 2 Thin Pulley * - Exercise Guide
48 9 Thick Pulley * - Grease Packet
49 12 M4.2 x 16mm Self-tapping Screw * - Assembly Tool
50 2 Large Cable Trap
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated. If a part is missing, please call 1-877-992-5999.
