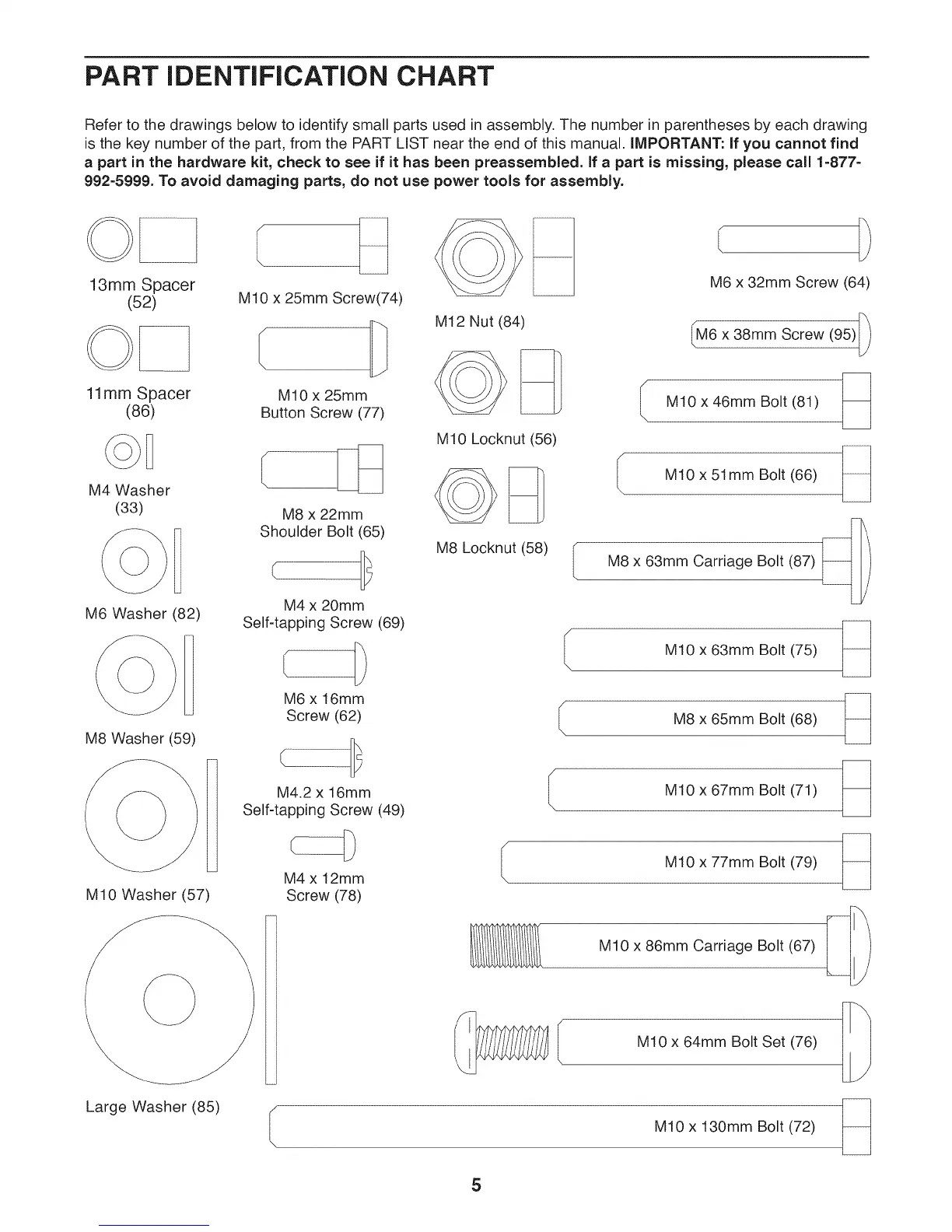

PART iDENTiFiCATiON CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each drawing
is the key number of the part, from the PART LIST near the end of this manual, iMPORTANT: If you cannot find
a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call 1=877=
992=5999. To avoid damaging parts, do not use power tools for assembly.
13mm Spacer
(52)
11mm Spacer
(86)
M4 Washer
(33)
H
M6 Washer (82)
M8 Washer (59)
M10 Washer (57)
Large Washer (85)
M10 x 25mm Screw(74)
MIO x 25mm
Button Screw (77)
M8 x 22mm
Shoulder Bolt (65)
M4 x 20mm
Self-tapping Screw (69)
M12 Nut (84)
M10 Locknut (56)
M8 Locknut (58) (
L
M6 x 32mm Screw (64)
M6 x 38mm Screw (95)
I M10 x 46mm Bolt (81)
I M10 x 51 mm Bolt (66)
M8 x 63mm Carriage Bolt (87)
MIO x 63mm Bolt (75) _
M8 x 65mm Bolt (68)
M6 x 16mm
Screw (62)
M4.2 x 16mm
Self-tapping Screw (49)
M4 x 12ram
Screw (78)
M10 x 67mm Bolt (71)
M10 x 77mm Bolt (79)
M10 x 86mm Carriage Bolt (67)
M10 x 64mm Bolt Set (76)
M10 x 130mm Bolt (72)
5
