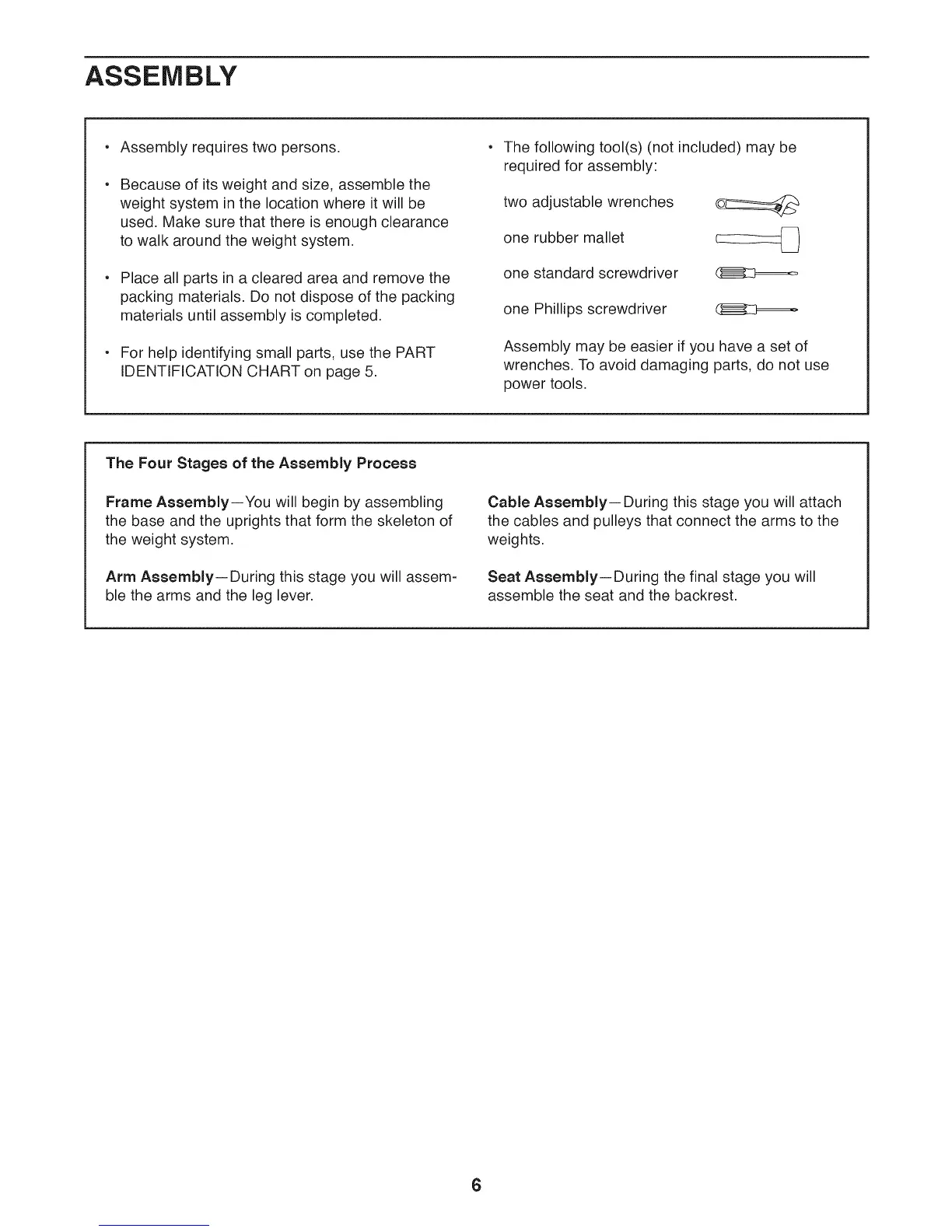

ASSEMBLY
Assembly requires two persons.
Because of its weight and size, assemble the
weight system in the location where it will be
used. Make sure that there is enough clearance
to walk around the weight system.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• The following tool(s) (not included) may be
required for assembly:
two adjustable wrenches
one rubber mallet c (_
one standard screwdriver (_:3====_
one Phillips screwdriver
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
The Four Stages of the Assembly Process
Frame Assembly--You will begin by assembling
the base and the uprights that form the skeleton of
the weight system.
Arm Assembly--During this stage you will assem-
ble the arms and the leg lever.
Cable Assembly--During this stage you will attach
the cables and pulleys that connect the arms to the
weights.
Seat Assembly--During the final stage you will
assemble the seat and the backrest.
