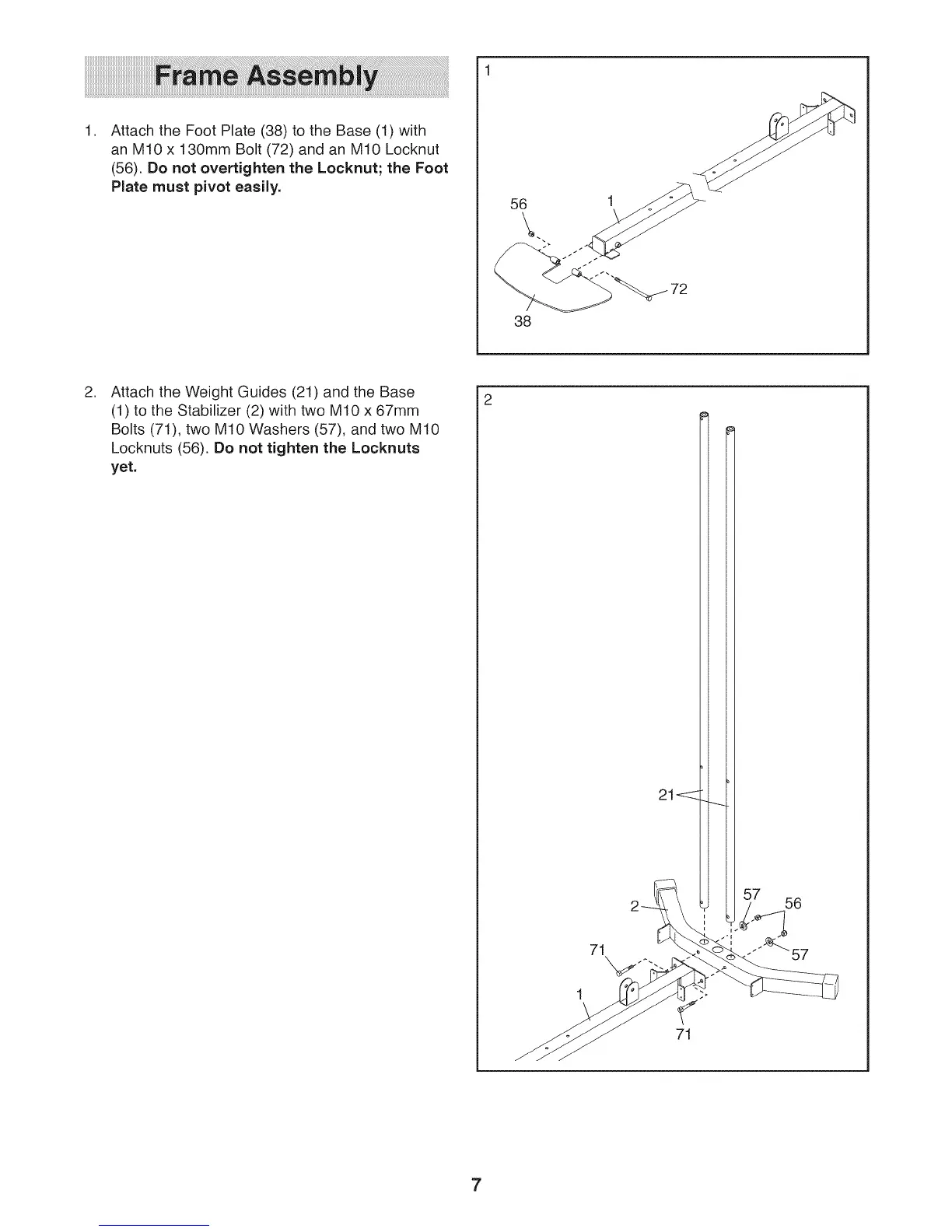

Attach the Foot Plate (38) to the Base (1) with
an M10 x 130mm Bolt (72) and an M10 Locknut
(56). Do not overtighten the Locknut; the Foot
Plate must pivot easily.
56
38
,
Attach the Weight Guides (21) and the Base
(1) to the Stabilizer (2) with two M10 x 67mm
Bolts (71), two M10 Washers (57), and two M10
Locknuts (56). Do not tighten the Locknuts
yet.
71
71
7
