Weider Pro 6900 - Page 8

,

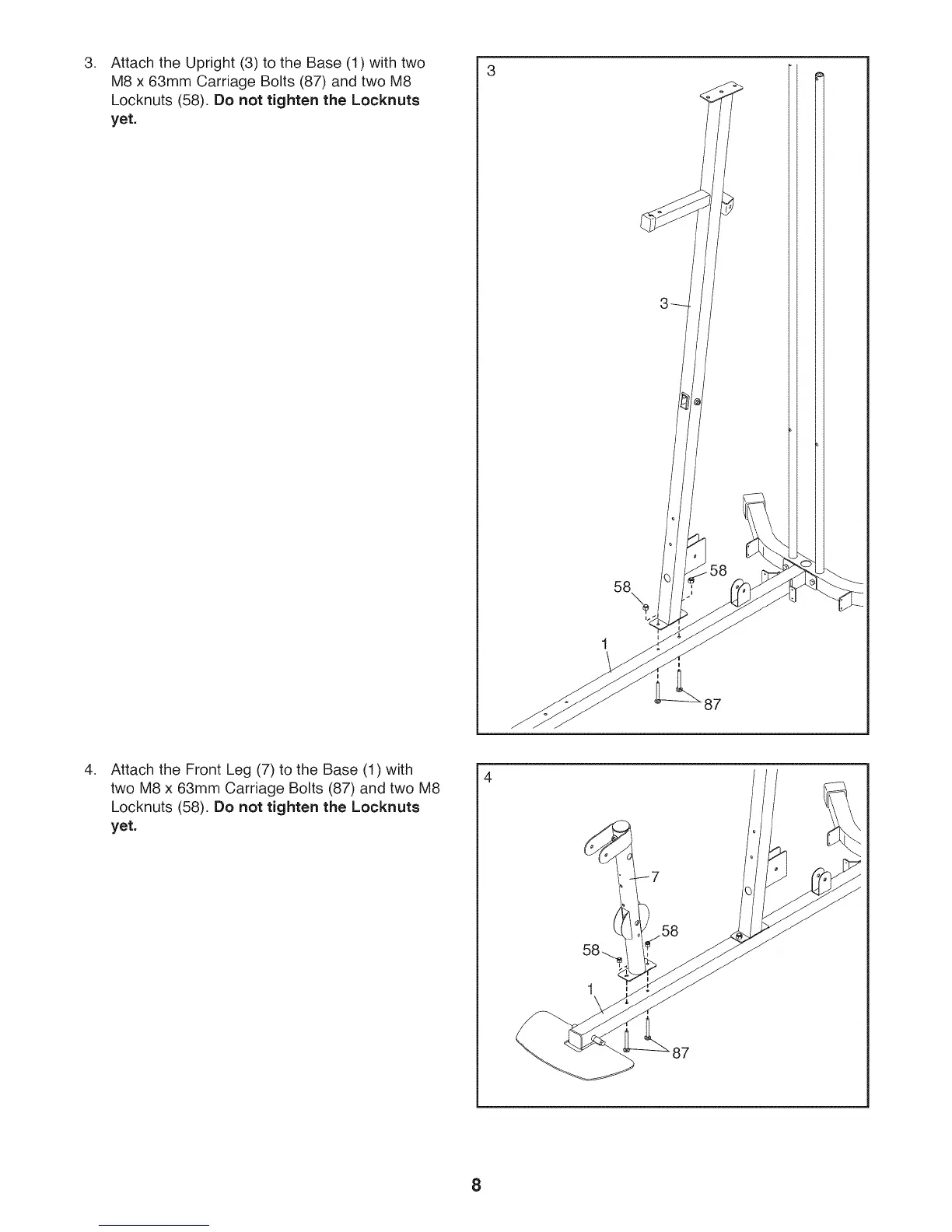

Attach the Upright (3) to the Base (1) with two
M8 x 63mm Carriage Bolts (87) and two M8
Locknuts (58). Do not tighten the Locknuts
yet.
58
58
87
,
Attach the Front Leg (7) to the Base (1) with
two M8 x 63mm Carriage Bolts (87) and two M8
Locknuts (58). Do not tighten the Locknuts
yet.
4
58
87
8
