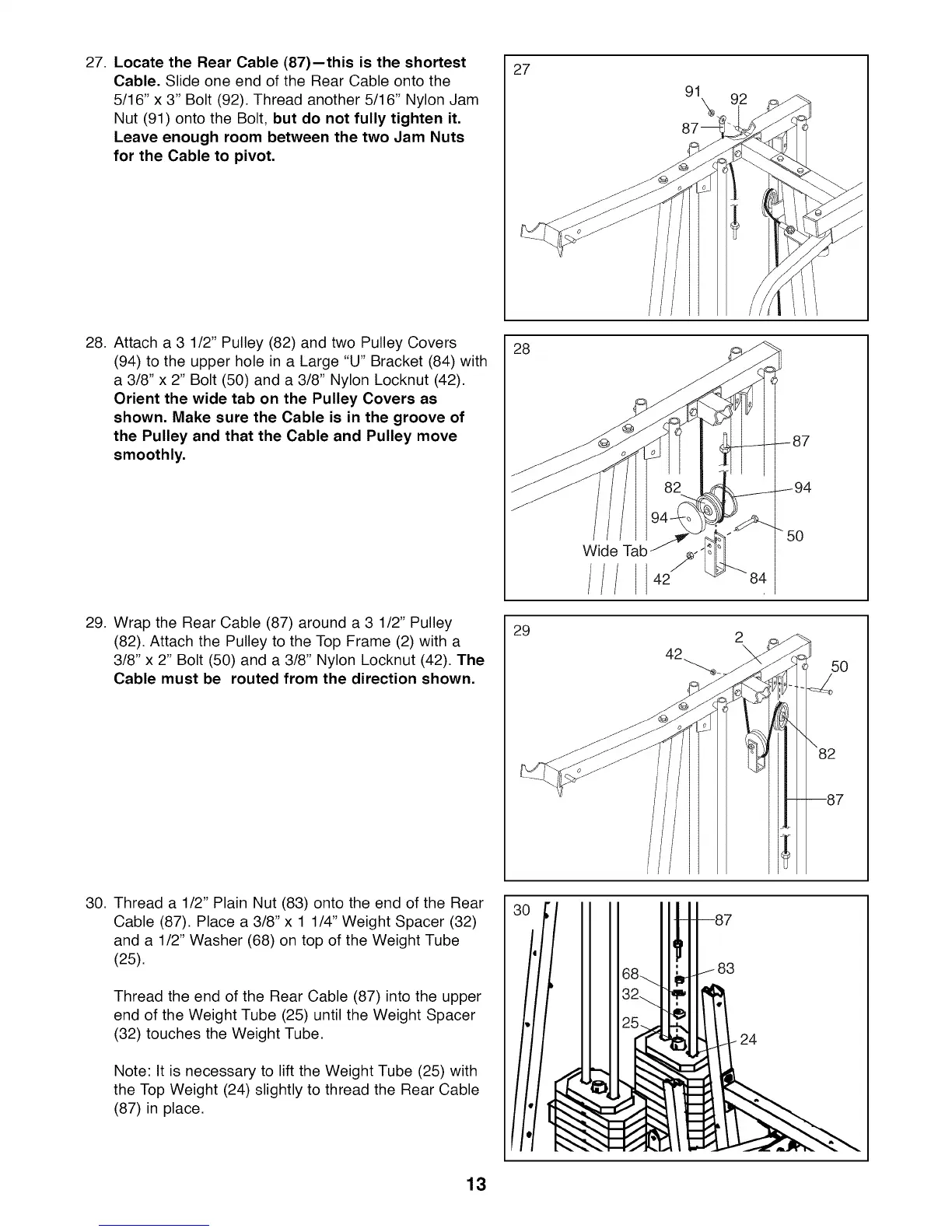

27. Locate the Rear Cable (87)--this is the shortest
Cable. Slide one end of the Rear Cable onto the
5/16" x 3" Bolt (92). Thread another 5/16" Nylon Jam
Nut (91) onto the Bolt, but do not fully tighten it.
Leave enough room between the two Jam Nuts
for the Cable to pivot.
28. Attach a 3 1/2" Pulley (82) and two Pulley Covers
(94) to the upper hole in a Large "U" Bracket (84) with
a 3/8" x 2" Bolt (50) and a 3/8" Nylon Locknut (42).
Orient the wide tab on the Pulley Covers as
shown. Make sure the Cable is in the groove of
the Pulley and that the Cable and Pulley move
smoothly.
29. Wrap the Rear Cable (87) around a 3 1/2" Pulley
(82). Attach the Pulley to the Top Frame (2) with a
3/8" x 2" Bolt (50) and a 3/8" Nylon Locknut (42). The
Cable must be routed from the direction shown.
27
28
29
91
Wide
///
42
50
30. Thread a 1/2" Plain Nut (83) onto the end of the Rear
Cable (87). Place a 3/8" x 1 1/4" Weight Spacer (32)
and a 1/2" Washer (68) on top of the Weight Tube
(25).
Thread the end of the Rear Cable (87) into the upper
end of the Weight Tube (25) until the Weight Spacer
(32) touches the Weight Tube.
Note: It is necessary to lift the Weight Tube (25) with
the Top Weight (24) slightly to thread the Rear Cable
(87) in place.
83
13
