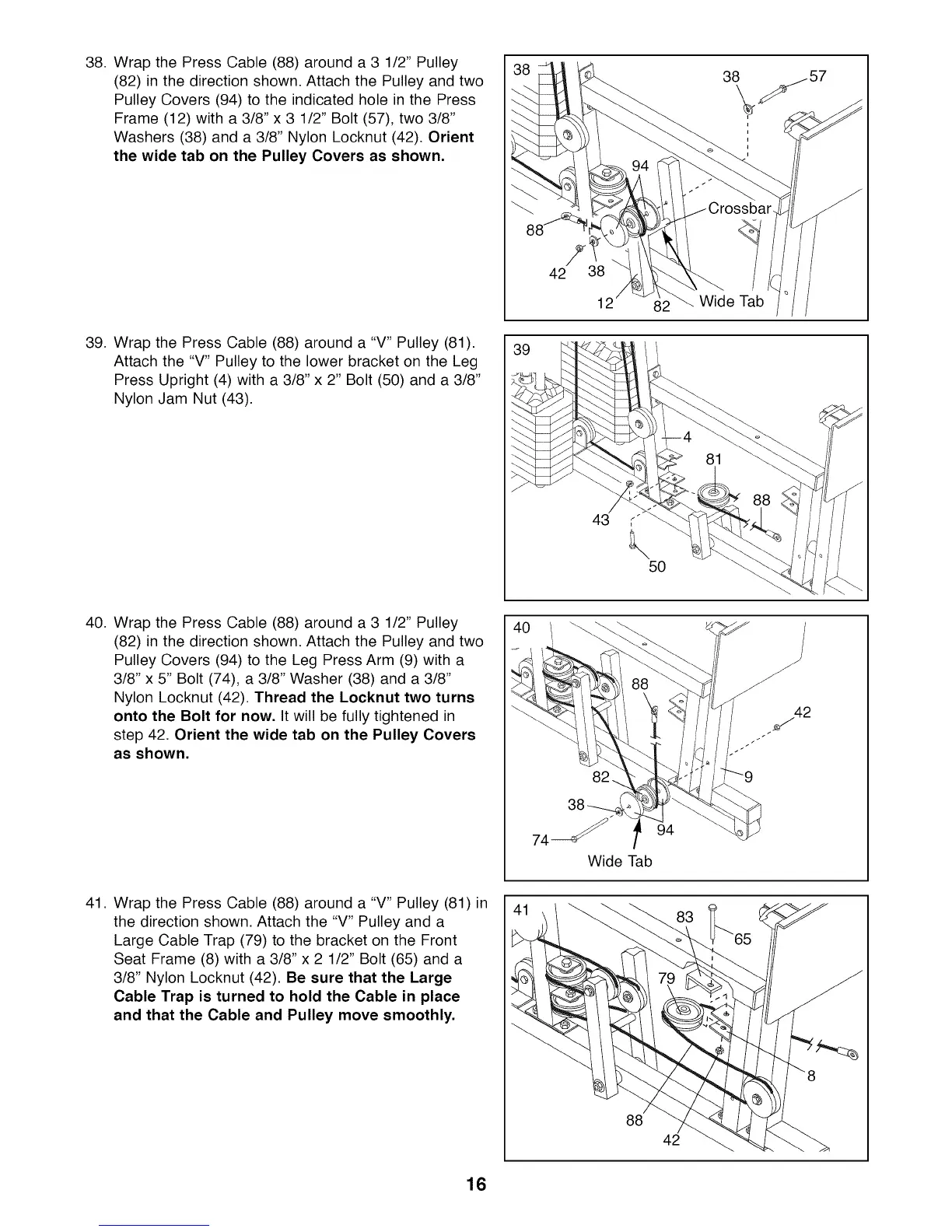

38. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Press
Frame (12) with a 3/8" x 3 1/2" Bolt (57), two 3/8"
Washers (38) and a 3/8" Nylon Locknut (42). Orient
the wide tab on the Pulley Covers as shown.
39. Wrap the Press Cable (88) around a "V" Pulley (81).
Attach the "V" Pulley to the lower bracket on the Leg
Press Upright (4) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Jam Nut (43).
12
43
82
50
Wide Tab
40. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Leg Press Arm (9) with a
3/8" x 5" Bolt (74), a 3/8" Washer (38) and a 3/8"
Nylon Locknut (42). Thread the Locknut two turns
onto the Bolt for now. It will be fully tightened in
step 42. Orient the wide tab on the Pulley Covers
as shown.
74_ 94
Wide Tab
41. Wrap the Press Cable (88) around a "V" Pulley (81) in
the direction shown. Attach the "V" Pulley and a
Large Cable Trap (79) to the bracket on the Front
Seat Frame (8) with a 3/8" x 2 1/2" Bolt (65) and a
3/8" Nylon Locknut (42). Be sure that the Large
Cable Trap is turned to hold the Cable in place
and that the Cable and Pulley move smoothly.
88
42
16
