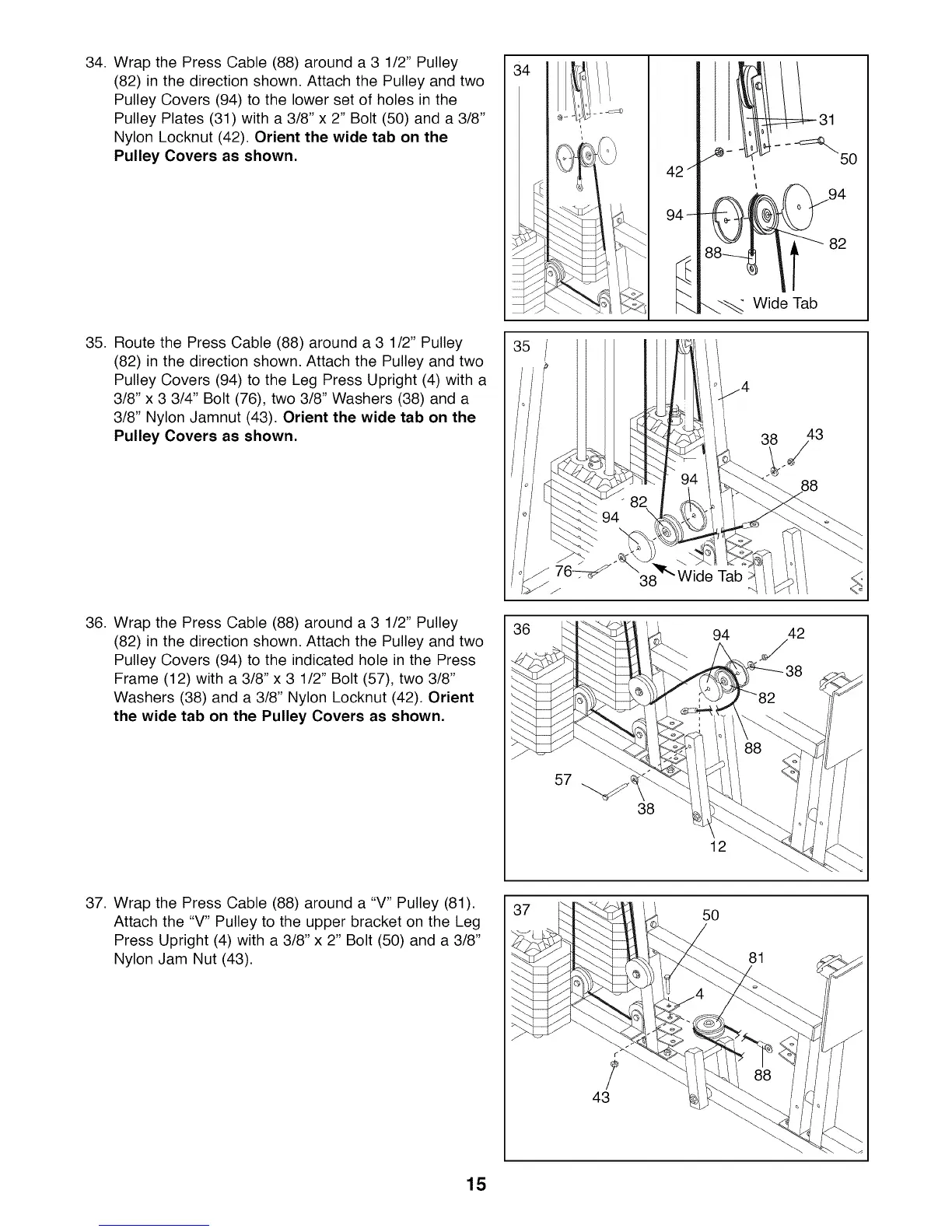

34. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the lower set of holes in the
Pulley Plates (31) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Locknut (42), Orient the wide tab on the
Pulley Covers as shown.
35. Route the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the Leg Press Upright (4) with a
3/8" x 3 3/4" Bolt (76), two 3/8" Washers (38) and a
3/8" Nylon Jamnut (43). Orient the wide tab on the
Pulley Covers as shown.
36. Wrap the Press Cable (88) around a 3 1/2" Pulley
(82) in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Press
Frame (12) with a 3/8" x 3 1/2" Bolt (57), two 3/8"
Washers (38) and a 3/8" Nylon Locknut (42). Orient
the wide tab on the Pulley Covers as shown.
42 /
94-
/f
82
Wide Tab
35
94 \
38
"Wide Tab
38
43
88
94 42
J
57
38
12
37. Wrap the Press Cable (88) around a "V" Pulley (81).
Attach the "V" Pulley to the upper bracket on the Leg
Press Upright (4) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Jam Nut (43).
50
81
15
To Next Page
