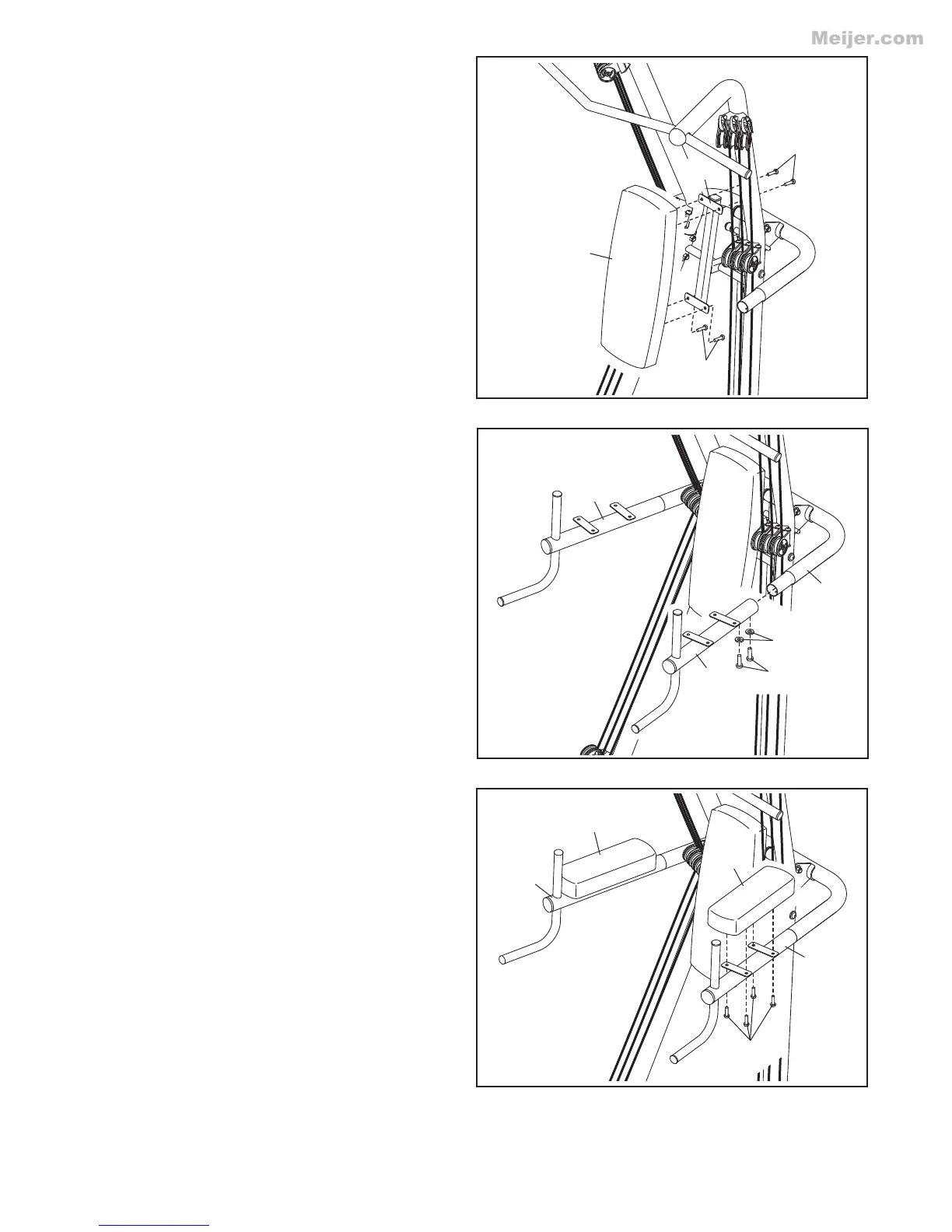

14. Orient the Backrest (12) so that the logo is at
the top.
Attach the Backrest (12) to the Backrest Frame
(10) with four M8 x 15mm Patch Screws (50).
15. Attach a Dip Arm (9) to the right side of the Dip
Frame (8) with two M10 x 20mm Patch Screws
(32) and two M10 Curved Washers (48).
Attach the other Dip Arm (9) in the same
way.
16. Attach an Armrest (20) to the right Dip Arm (9)
with four M8 x 15mm Patch Screws (50).
Attach the other Armrest (20) to the left Dip
Arm (9) in the same way.
17. Make sure that all parts are properly tightened before you use the exercise rack. The use of all
remaining parts will be explained in ADJUSTMENT on pages 13 and 14.
12
50
48
8
9
32
9
50
9
20
20
50
9
10
