6

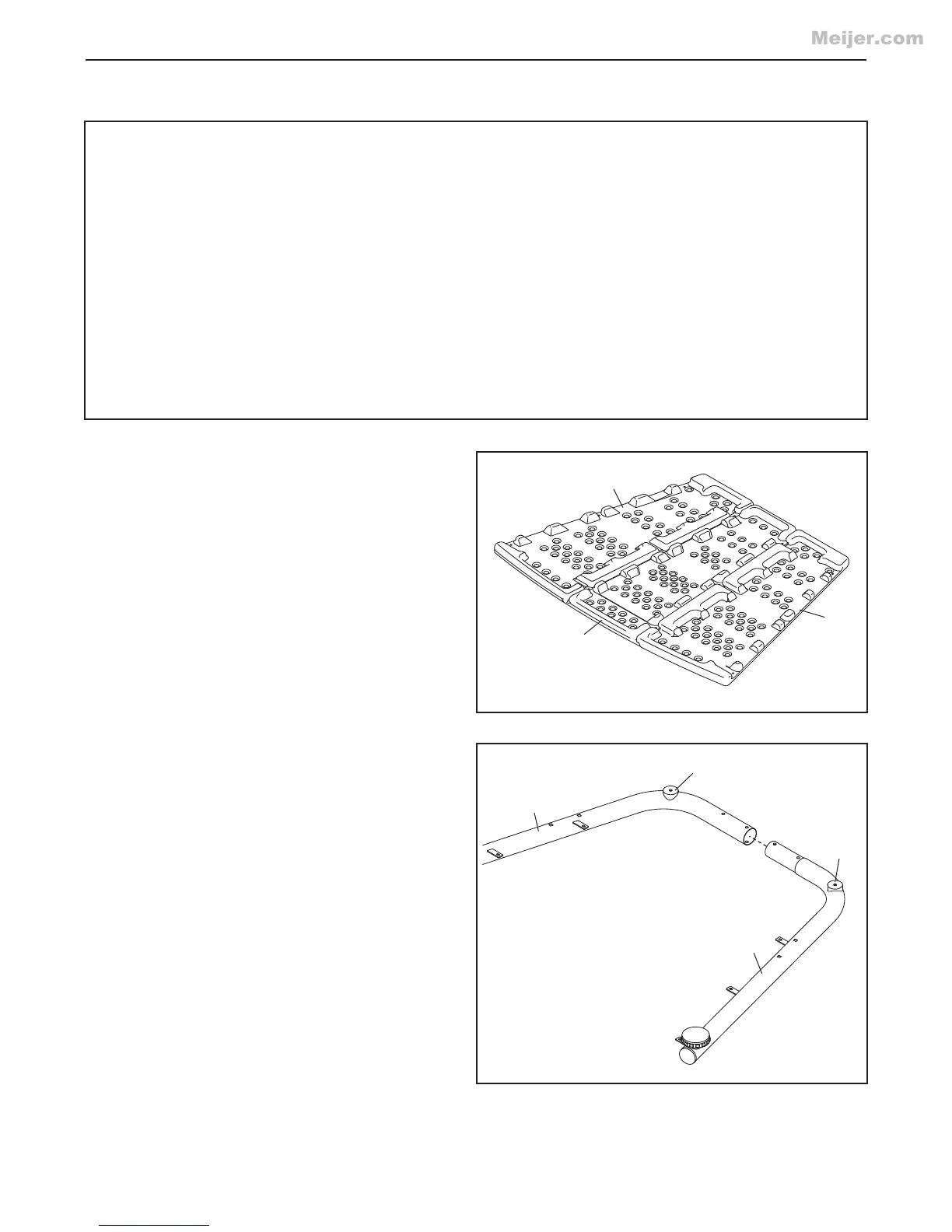

1. Lay the Right, Center, and Left Platform
Sections (13, 14, 15) upside-down on the floor.
Slide the Right, Center, and Left Platform
Sections (13, 14, 15) together as shown.
1
2. Lay the Right and Left Bases (1, 2) upside-
down on the floor, so that the Feet (27) are
facing upward.
Insert the Left Base (2) into the Right Base (1).
2
13
1
27
27
2
15
14
To make assembly easier, carefully read the
following assembly tips:
• To hire an authorized service technician to
assemble the exercise rack in your home, call
1-800-445-2480.
• Assembly requires two persons.
• Because of its weight and size, the exercise rack
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the exercise rack as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• Assembly can be completed using the included
tools.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
ASSEMBLY
