8
6
3

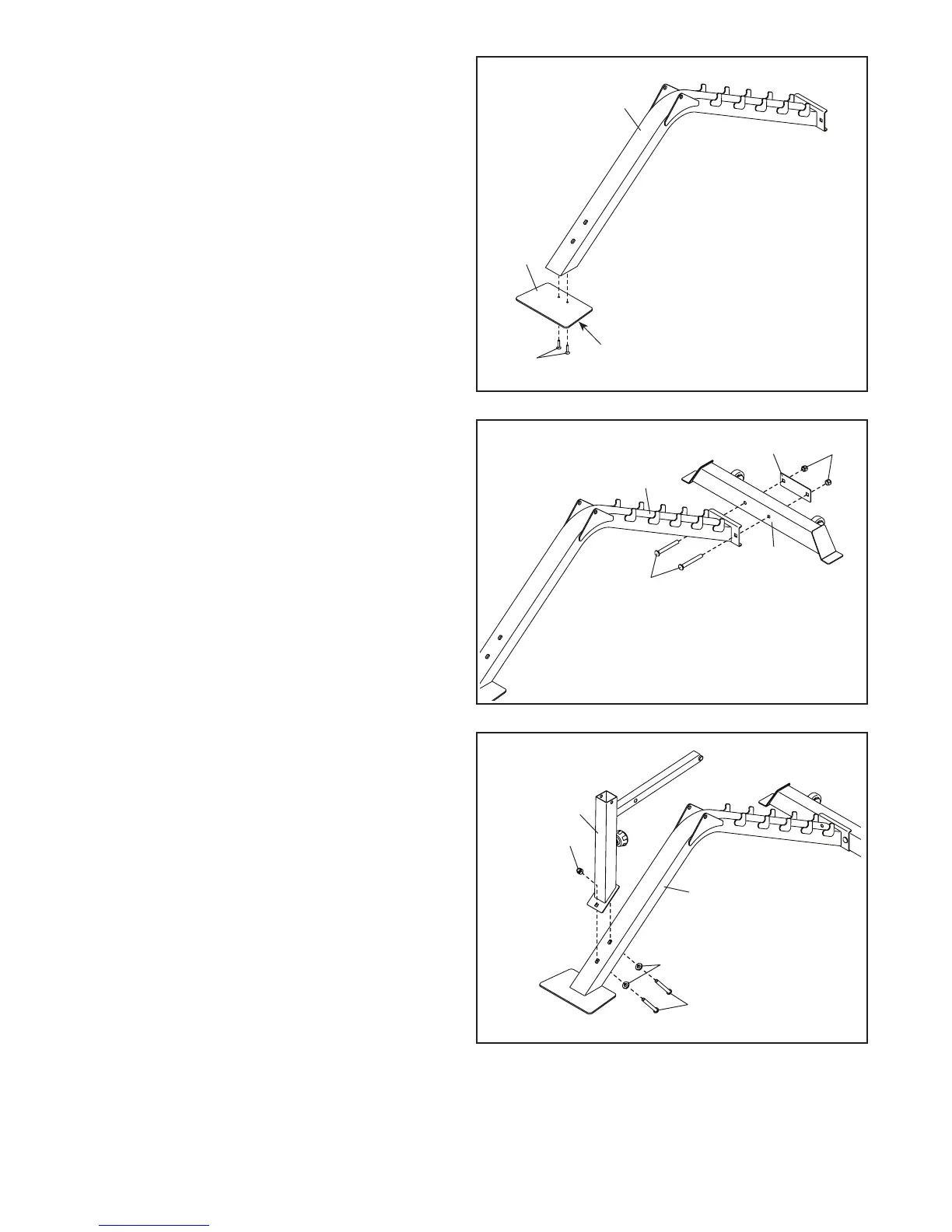

6. Orient the Foot Plate (2) so that the recessed
holes are underneath.
Attach the Foot Plate (2) to the Main Frame (1)
with two M8 x 20mm Flat Head Screws (43).
1
43
Recessed Holes
2
13
54
44
7
7. Attach the Stabilizer (3) to the Main Frame (1)
with two M10 x 68mm Carriage Bolts (54), a
Support Plate (13), and two M10 Locknuts (44).
8. Attach the Post Frame (4) to the Main Frame
(1) with two M10 x 65mm Bolts (48), two M10
Washers (41), and an M10 Locknut (44); do not
tighten the Bolts or the Locknut yet.
8
44
1
1
4
48
41
