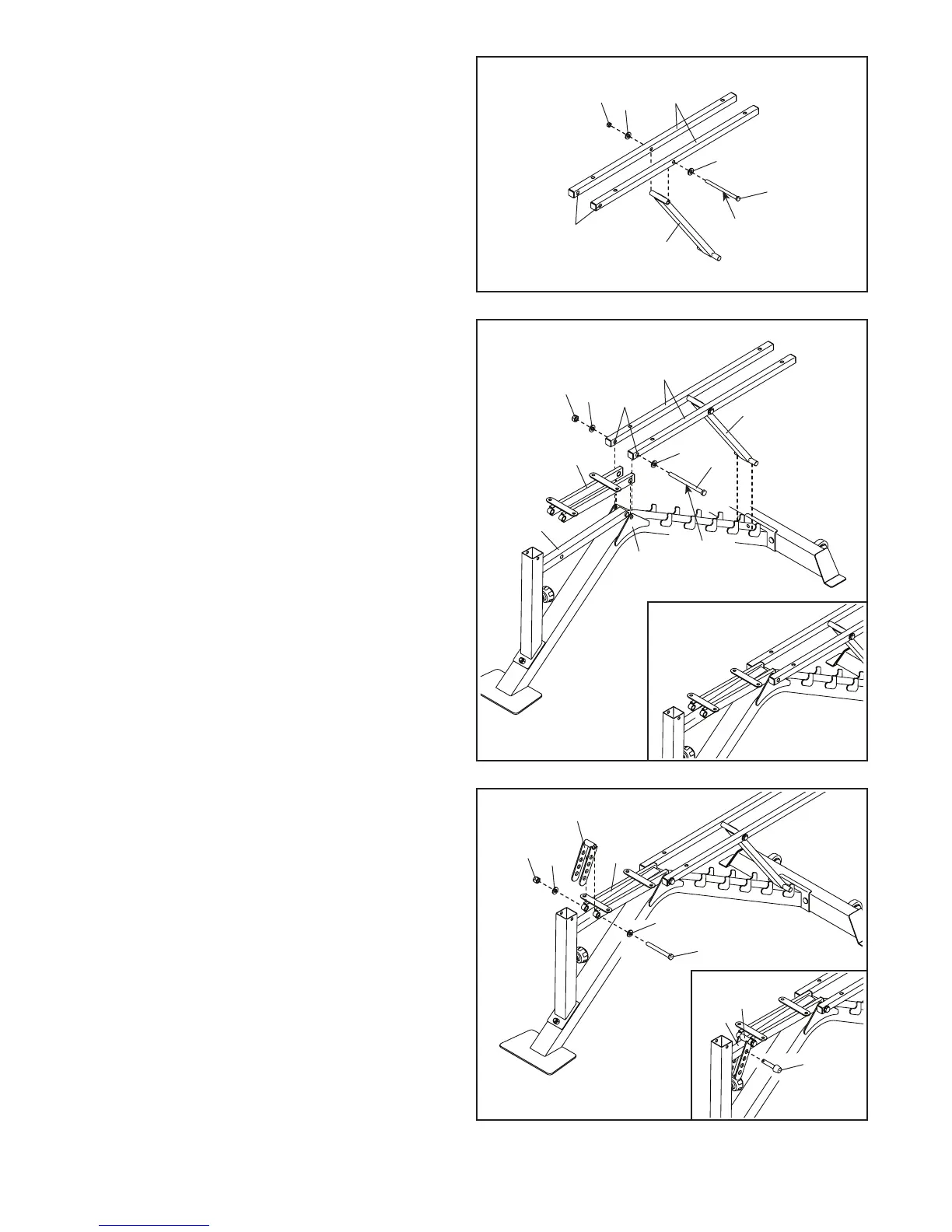

10. Apply a small amount of the included grease to
an M12 x 147mm Bolt (56). Next, slide an M12
Washer (42) onto the Bolt.
With the help of a second person, align the
indicated ends of the Backrest Frames (8) and
the indicated end of the Seat Frame (10) with
the triangular brackets on the Main Frame (1)
(see the inset drawing). Next, insert the M12 x
147mm Bolt (56) through all parts, slide an M12
Washer (42) onto the Bolt, and tighten an M12
Locknut (45) onto the Bolt; do not overtighten
the Locknut.
Then, set the Backrest Support (9) in the desired
pair of brackets on the Main Frame (1).
See step 9. Tighten the M10 Locknut (44); do
not overtighten the Locknut.
See step 8. Tighten the M10 x 65mm Bolts (48)
and the M10 Locknut (44).
9. Using a plastic bag to keep your fingers clean,
apply a small amount of the included grease to
an M10 x 145mm Bolt (55).
Next, orient the Backrest Frames (8) as shown.
Attach the Backrest Support (9) to the Backrest
Frames (8) with the M10 x 145mm Bolt (55), two
M10 Washers (41), and an M10 Locknut (44); do
not tighten the Locknut yet.
9
55
41
41
44
9
Holes
10
11
11. Attach the Seat Support (11) to the Seat Frame
(10) with an M12 x 87mm Bolt (52), two M12
Washers (42), and an M12 Locknut (45); do not
overtighten the Locknut.
See the inset drawing. Insert the Seat Pin (21)
into the desired hole in the Seat Support (11)
and into the hole in the Post Frame (4).
8
52
42
42
45
10
11
21
4
11
9
56
42
42
45
10
1
4
8
Holes
Grease
Grease
