17

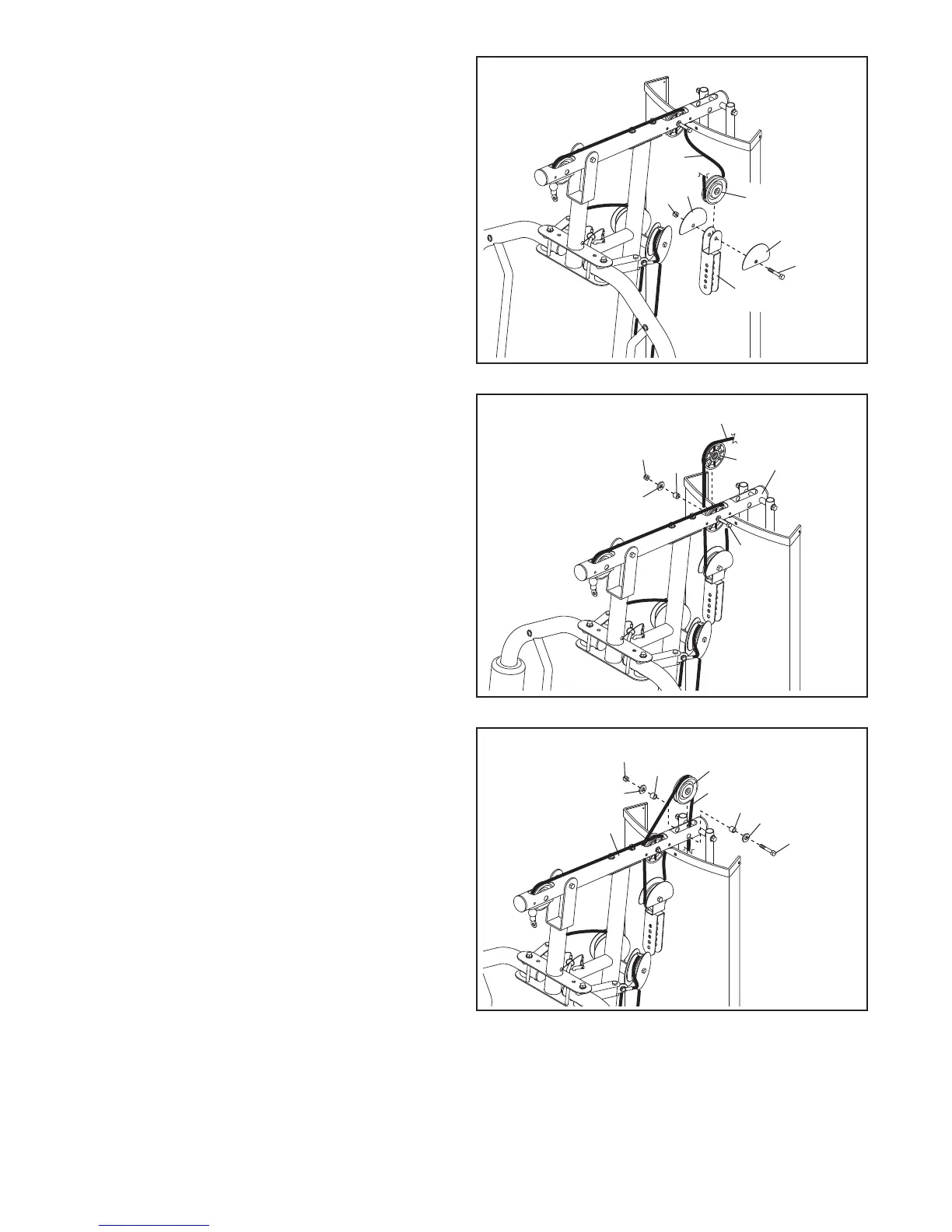

20. Wrap the High Cable (55) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
at the upper hole in the Adjustable U-bracket
(45) with an M10 x 45mm Bolt (81) and an M10
Locknut (56). Make sure that the Half Guards
are on the outside of the Adjustable U-
bracket.
21. Route the High Cable (55) up through the Top
Frame (4) and over a 90mm Thin Pulley (47).
Attach the Thin Pulley inside the Top Frame
with the M10 x 80mm Bolt (71) used in step 19,
a 19mm Spacer (33), an M10 Washer (57), and
an M10 Locknut (56).
20
21
81
56
4
8
5
5
43
43
45
55
47
71
4
33
57
56
22. Route the High Cable (55) over a 90mm Pulley
(48) and down through the Top Frame (4).
Attach the Pulley inside the Top Frame with an
M10 x 80mm Bolt (71), two M10 Washers (57),
two 19mm Spacers (33), and an M10 Locknut
(56).
22
71
55
33
33
48
57
4
57
56
