ACT20X
ACT20X
CBX200 with Configuration Software Configuration in safe area only!
-
+
54
53
52
51
44
43
42
41
CBX200 with Configuration Software Configuration in safe area only!
T
4-20 mA
Loop-powered
transmitter
Hazardous area
Class I/II/III, Division 1,
Group A, B, C, D, E, F, G
or Class I Zone 0/1/2, Group IIC, IIB, IIA
or Class I Zone 20/21
Non Hazardous area
Class I, Division 2,
Group A, B, C, D T4
or Class I, Zone 2,
Group IIC, IIB, IIA T4
24
23
22
21
14
13
12
11
24
23
22
21
14
13
12
11

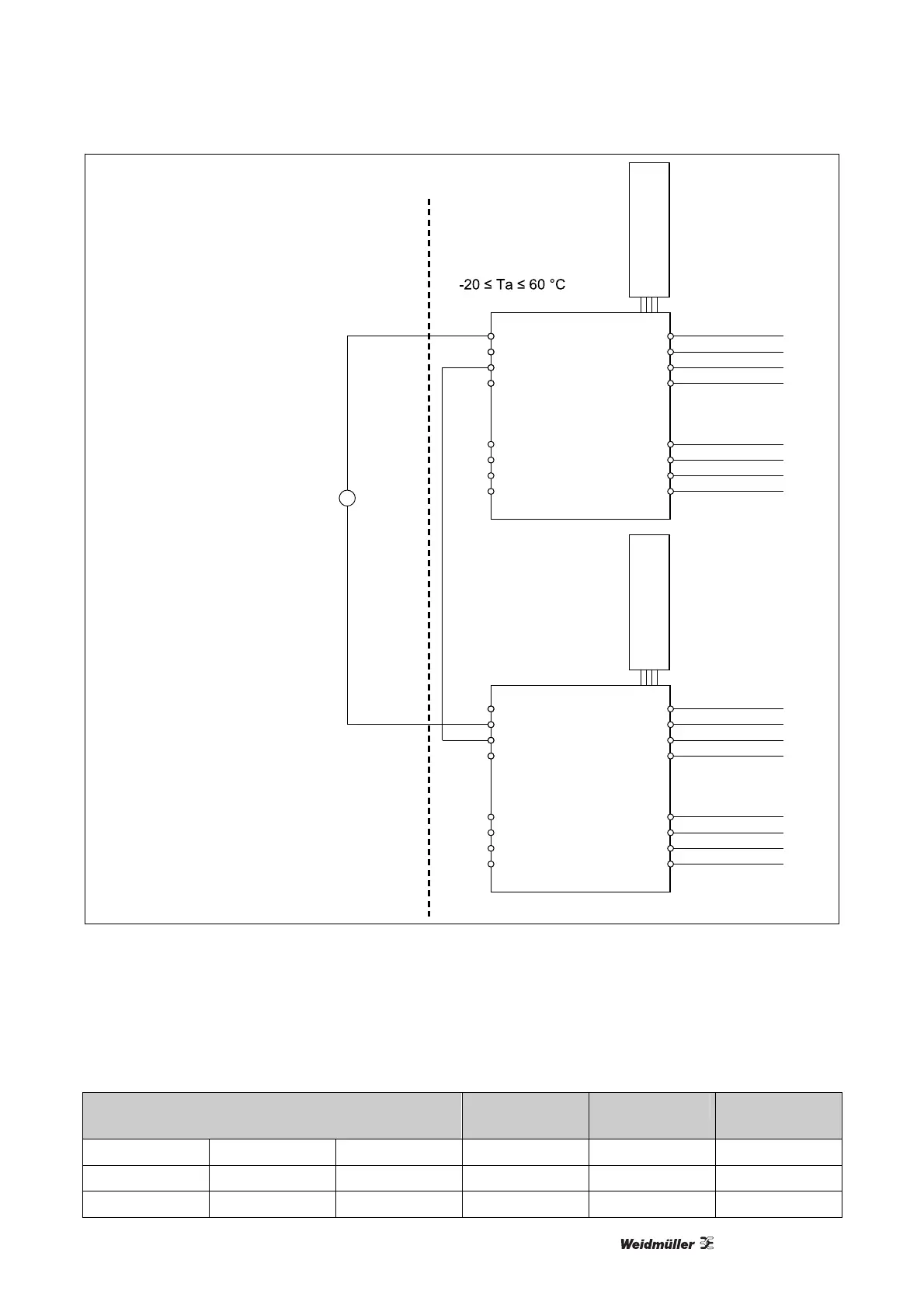

Illustration 7-34: FM Installation Drawing
Supply / Input
(terminal 41, 42, 43, 44)
(terminal 51, 52, 53, 54)
U
m
: 253 V, max. 400 Hz
896549 (ACT20X-HUI-SAO),
Terminal 24–22 / 21–22
Co Lo Lo/Ro
Uo, Voc 28 V IIC or A, B 80 nF 4.2 mH 54 µH/Ω
Io, Isc 93 mA IIB or C, E, F 640 nF 16.8 mH 218 µH/Ω
Po 0.65 W IIA or D, G 2.1 µF 32.6 mH 436 µH/Ω
