Weidmüller ACT20X - Page 73

1066540000/00/02.09 73
U
i
: 10 V
I
i
: 30 mA
C
i
: 30 nF
L
i
: 820 μH
Terminal (53, 54)
Status Relay: Non Hazardous location Zone 2 installation
Voltage max. 125 V AC / 110 V DC 32 V AC / 32 V DC
Power max. 62.5 VA / 32 W 16 VA / 32 W
Current max. 0.5 A AC / 0.3 A DC 0.5 A AC / 1 A DC
44
43
42
41
54
53
52
51
24
23
22
21
14
CH1
CH2
-
+
13
12
11
ACT20X
CBX200 with Configuration Software Configuration in safe area only!
Hazardous area
Class I/II/III, Division 1, Group A,B,C,D,E,F,G
or Class I, Zone 0/1 Group IIC
Non Hazardous area or
Class I, Division 2, Group A,B,C, D T4
or Class I, Zone 2 Group IIC T4

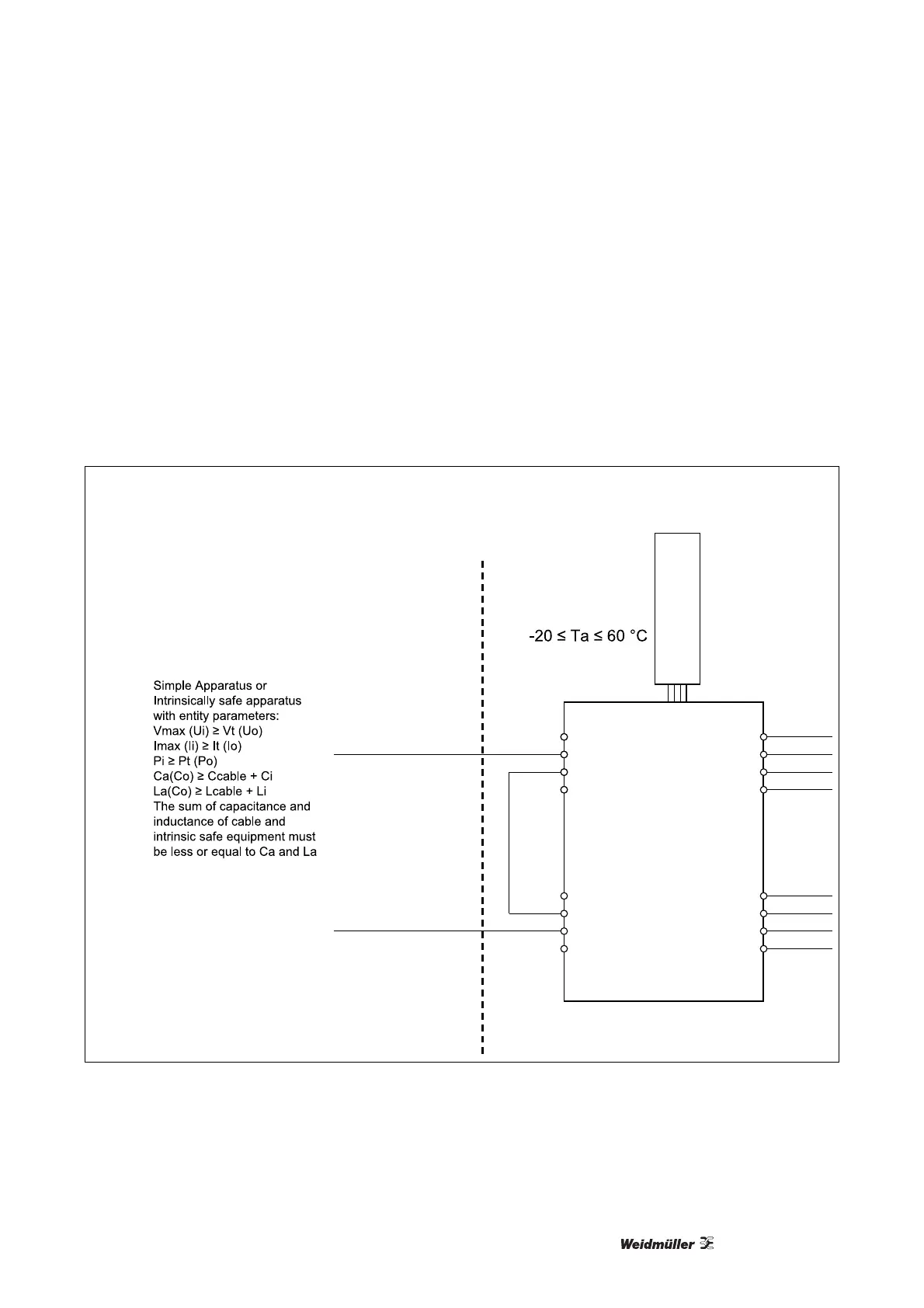

Illustration 7-23: FM Installation Drawing
