Weidmüller ACT20X - Page 84

84 1066540000/00/02.09
44
43
42
41
54
53
52
51
24
23
22
21
14
+
CH1
CH2
-
+
-
13
12
11
ACT20X
CBX200 with Configuration Software Configuration in safe area only!
Hazardous area
Class I/II/III, Division 1, Group A,B,C,D,E,F,G
or Class I, Zone 0/1 Group IIC, [AEx ia] IIC
or Class I, Zone 0/1 Group IIC, [Ex ia] IIC
Non Hazardous area or
Class I, Division 2, Group A,B,C,D T4
or Class I, Zone 2 Group IIC T4

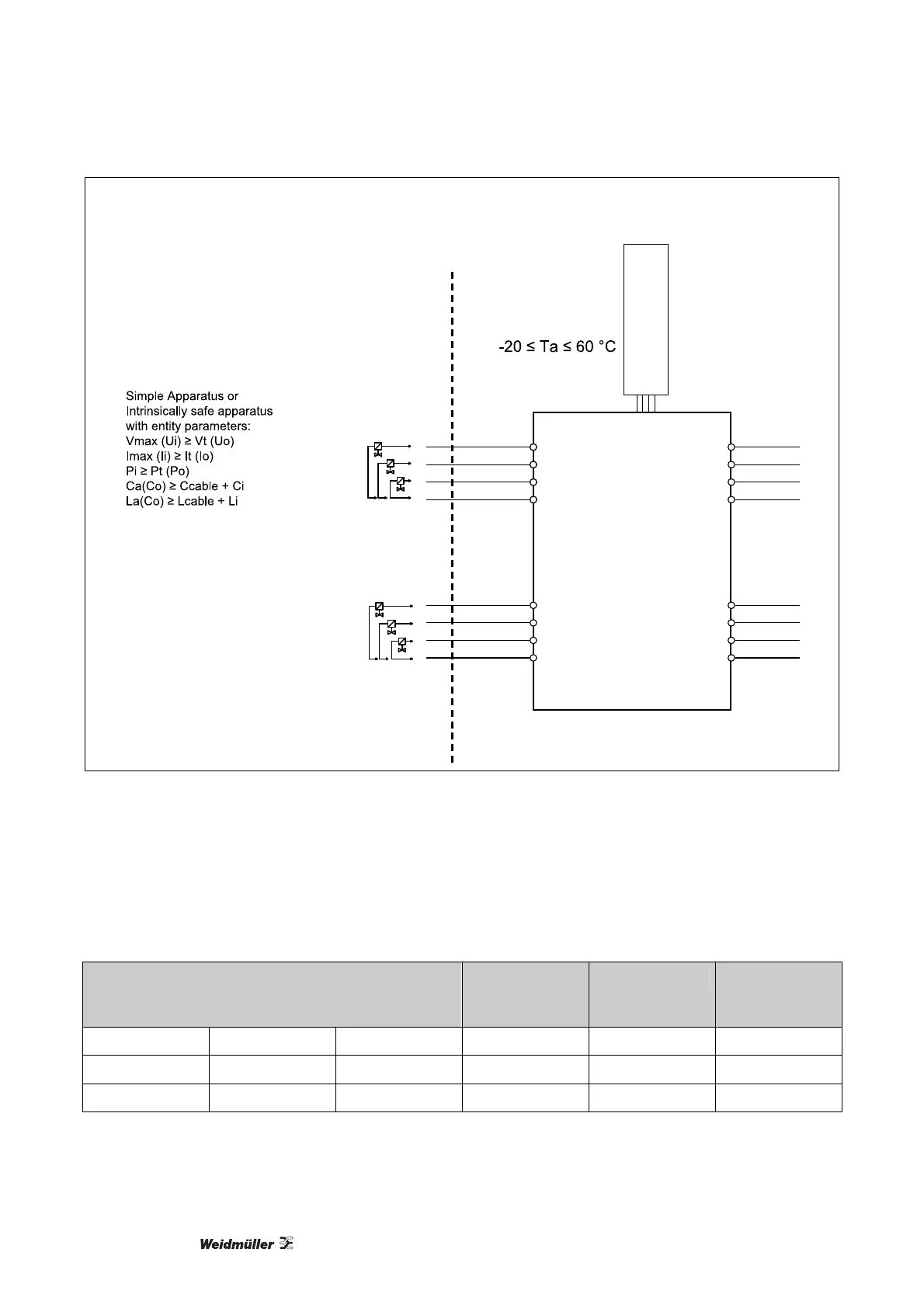

Illustration 7-26: FM Installation Drawing
Supply / Input
CH1 (terminal 41, 42, 43, 44)
CH2 (terminal 51, 52, 53, 54)
U
m
: 253 V, max. 400 Hz
896540 (ACT20X-SDI-HDO-L-S),
896542 (ACT20X-2SDI-2HDO-S),
Terminal 11–12 / 21–22
Co / Ca Lo / La Lo / Ro
Uo / VT 28 V IIC / A, B 80 nF 4.2 mH 54 µH/Ω
Io / Isc 93 mA IIB / C 640 nF 16.8 mH 218 µH/Ω
Po / Pt 0.65 W IIA / D, E, F 2.1 µF 32.6 mH 436 µH/Ω
