FEED BUCKET

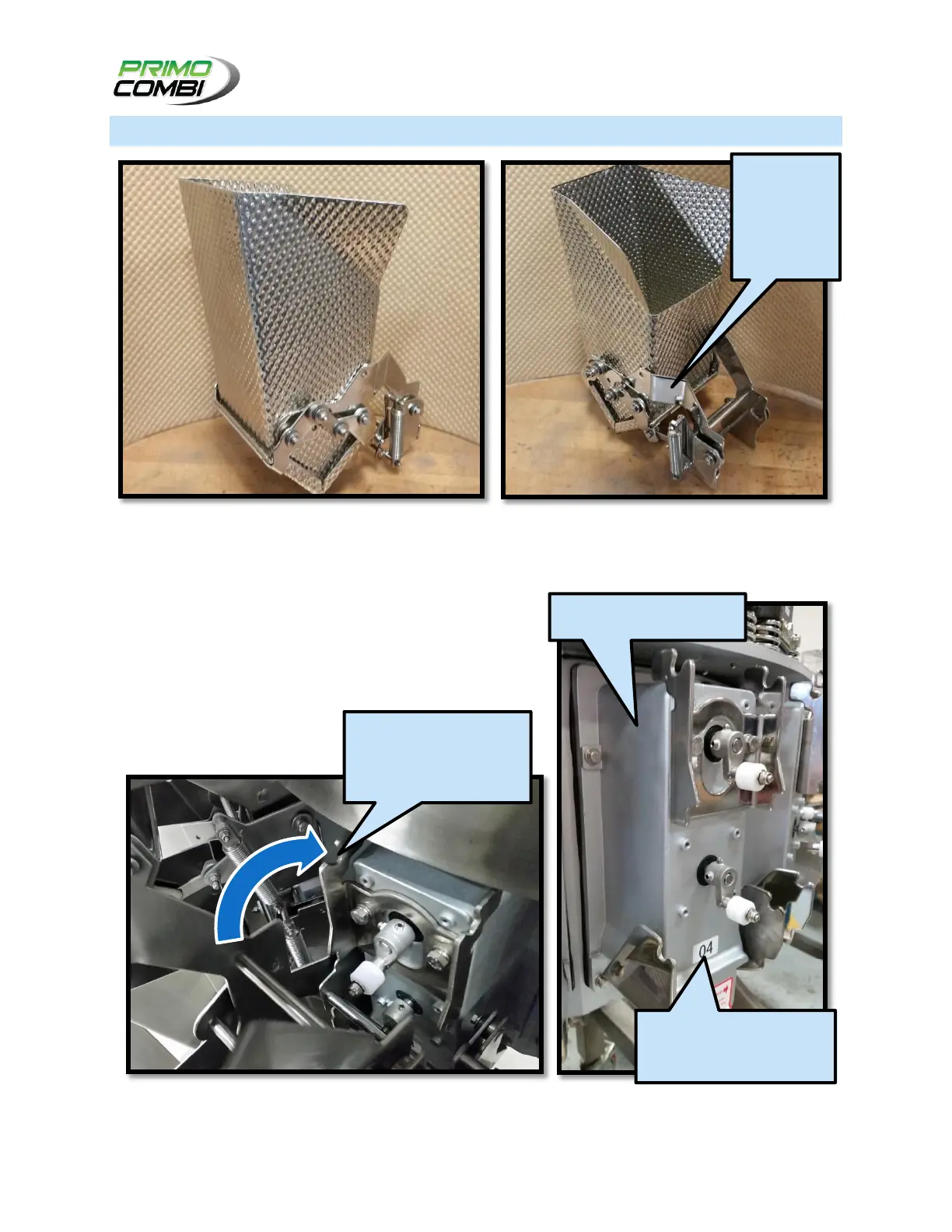

The Feed Buckets are designed to fit onto a series of matching slots on the Load Cells of the Scale.
To remove a Feed Bucket, tilt the Feed Bucket away from the Scale then slip the Feed Bucket off of the
mounting slots. To install a Feed bucket, tilt the Feed Bucket at an angle and slip it down onto the
mounting slots of the Tower.
SLIP THE BARS OF THE
FEED BUCKET INTO
SLOTS OF THE STEP
MOTOR LOAD CELL
STEP MOTOR HEAD WITH
INTEGRATED LOAD CELL
STEP MOTOR HEAD HAS A
NUMBER MATCHING THE
LANE IT BELONGS TO
EACH WEIGH
BUCKET HAS
A NUMBER
MATCHING
THE LANE IT
BELONGS TO
