WEIGH BUCKETS

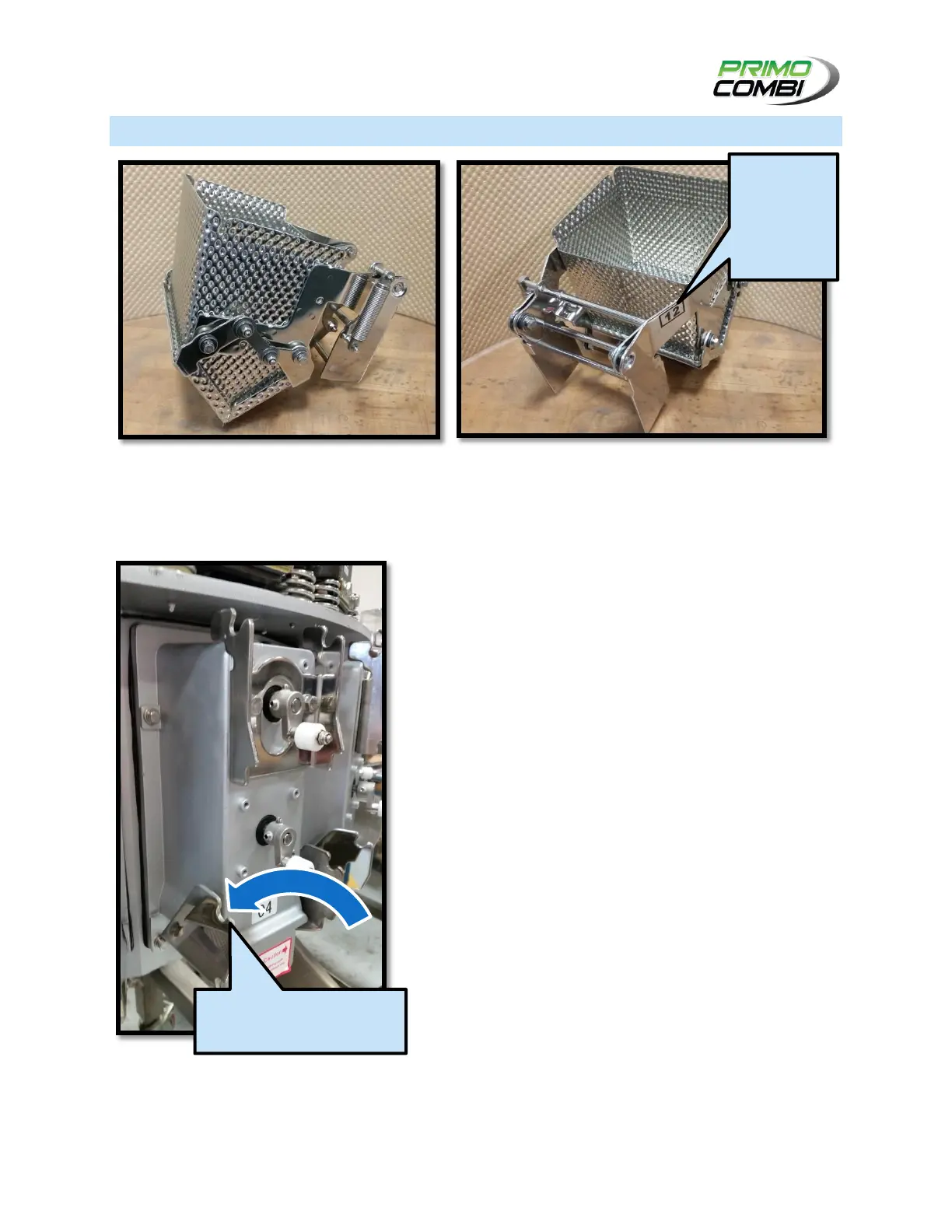

The Weigh Buckets are designed to fit onto a series of matching slots on the Tower of the Scale.
To remove a Weigh Bucket, tilt the Weigh Bucket away from the Scale then slip the Weigh Bucket off of
the mounting slots. To install a Weigh bucket, tilt the Weigh Bucket at an angle and slip it down onto the
mounting slots of the Tower.
SLIP THE BARS OF THE FEED
BUCKET INTO SLOTS OF THE
STEP MOTOR LOAD CELL
EACH WEIGH
BUCKET HAS
A NUMBER
MATCHING
THE LANE IT
BELONGS TO
