SCALE SET-UP / CALIBRATION
With the scale off (powered down) install the weigh buckets, feed buckets, vibratory pans, and
center cone back to the appropriate scale respecting proper lane position.
Power up the scale.

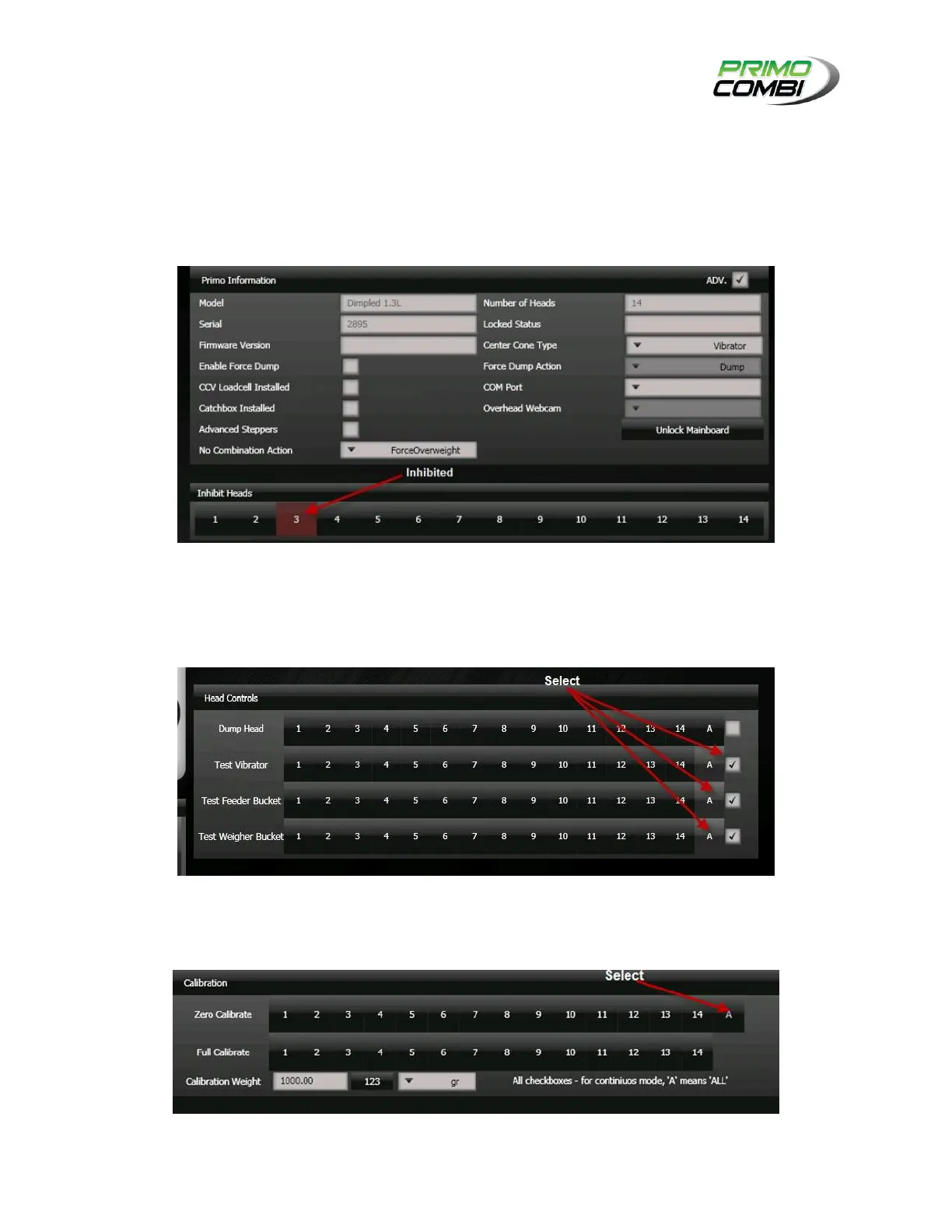

Ensure there are no heads inhibited by going to the “Settings, Hardware settings” page (head will
be highlighted in red).
Un-inhibit the head if inhibited and “Save” the change.
Load a recipe under the “Operate“ page.
Under the “Tools / Diagnostic” screen cycle the feed buckets, weigh bucket and vibrators (check
the box at the end and select “A” for all under the appropriate item).
Physically examine scale to ensure there is no obstruction / interference while the scale is cycling
in the diagnostic mode.
Stop the cycling of the scale and ZERO ALL BUCKETS from the calibration screen.
