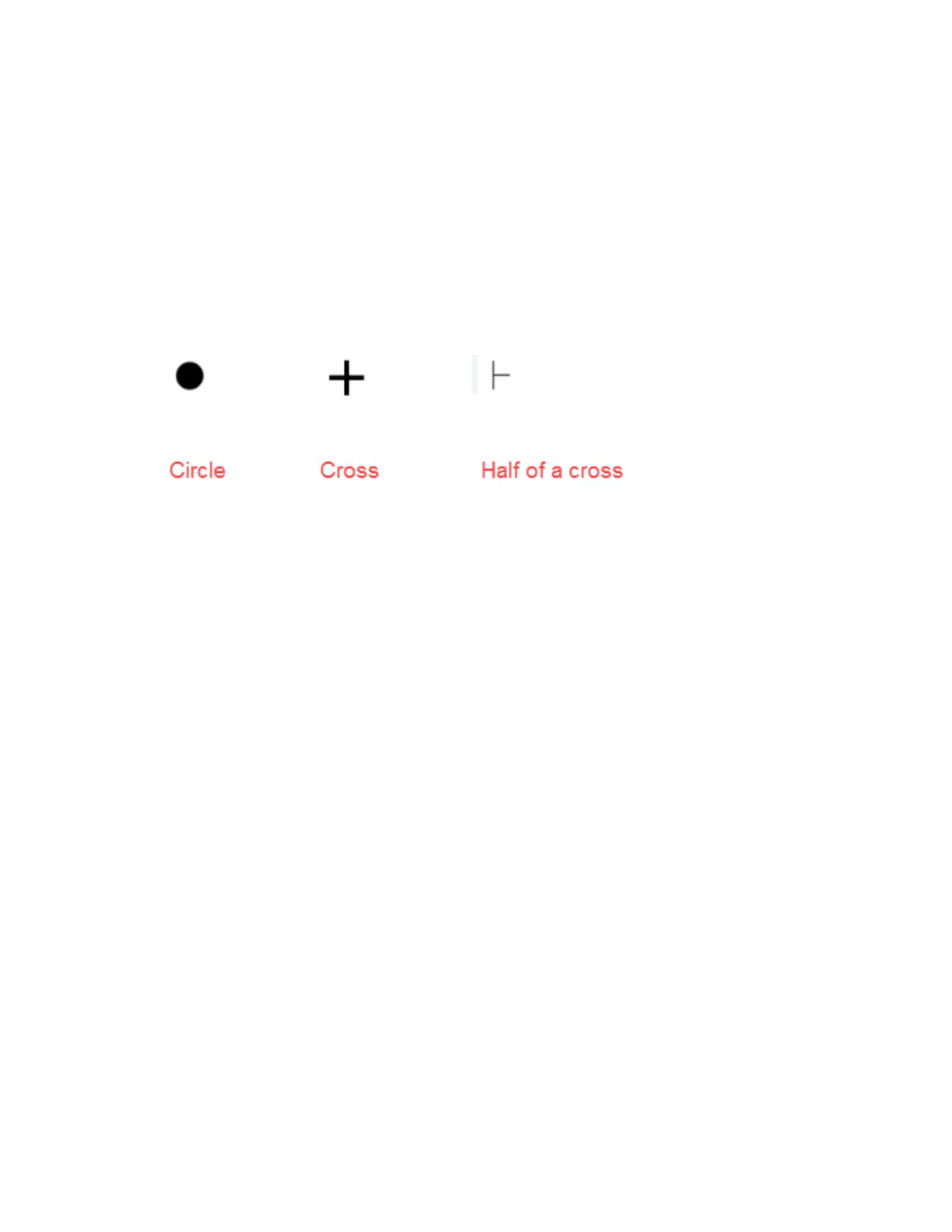

All patterns can be used as templates. For different patterns, steps to take the

template may differ.

• If the marking point (or called shooting point) is a circle:

Move the CCD center to the circle point, and click Mark button.

• If the marking point is a cross or half of a cross:

Move the CCD center to the center point of the cross or half of a cross, and click

Mark button.

WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.

- 18 -
