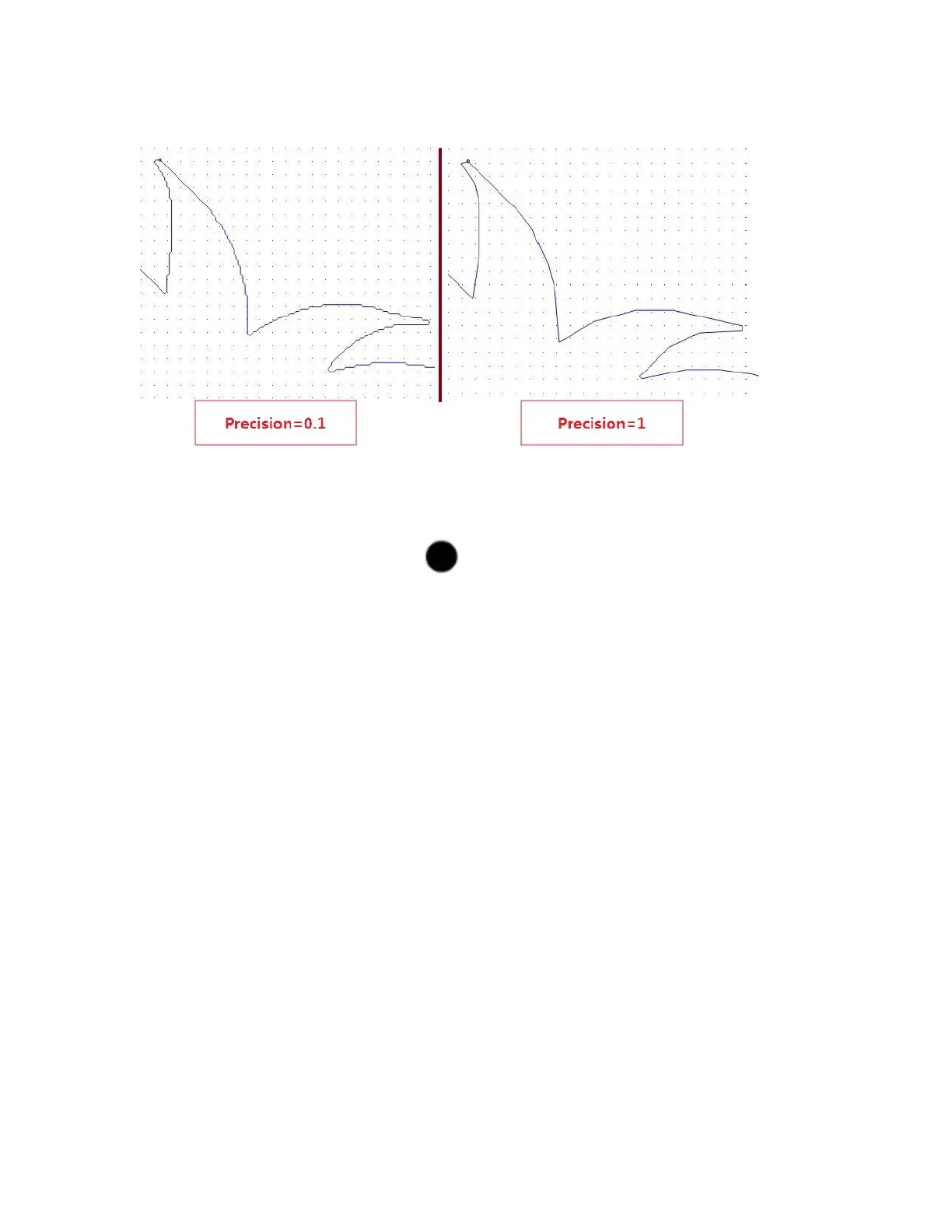

See figure below for comparison.
Marking Point Diameter
At present, the system can automatically recognize marking points of circular type.
For marking points of circular type , the system will do the following:
1. Calculate the contour area of the circle.
Area = πr² //r represents circle diameter, namely, setting value of
Mark point diameter parameter
2. Make a threshold according to the result of circle area.
Threshold: [-(20%*Area), +(20%*Area)]
3. According to the threshold, pick out all circles whose diameters are within the
range and make them marking points.
For circles whose diameters are smaller than the minimum value of the
threshold, they will be recognized as useless points and be ignored in retrieving
process.
Editing Toolpath
After retrieving contour from a JPG file, users can edit the contour and convert it to
toolpath that is ready for machining.
Users need to do followings when editing toolpath:
1. Setting workpiece origin.
2. Setting machining direction.
3. Setting tool compensation.
