WEIHONG ELECTRONIC NcStudio V10 CCD System User Manual

• For images with light color background, set low greyscale.
• For images with dark color background set high greyscale.

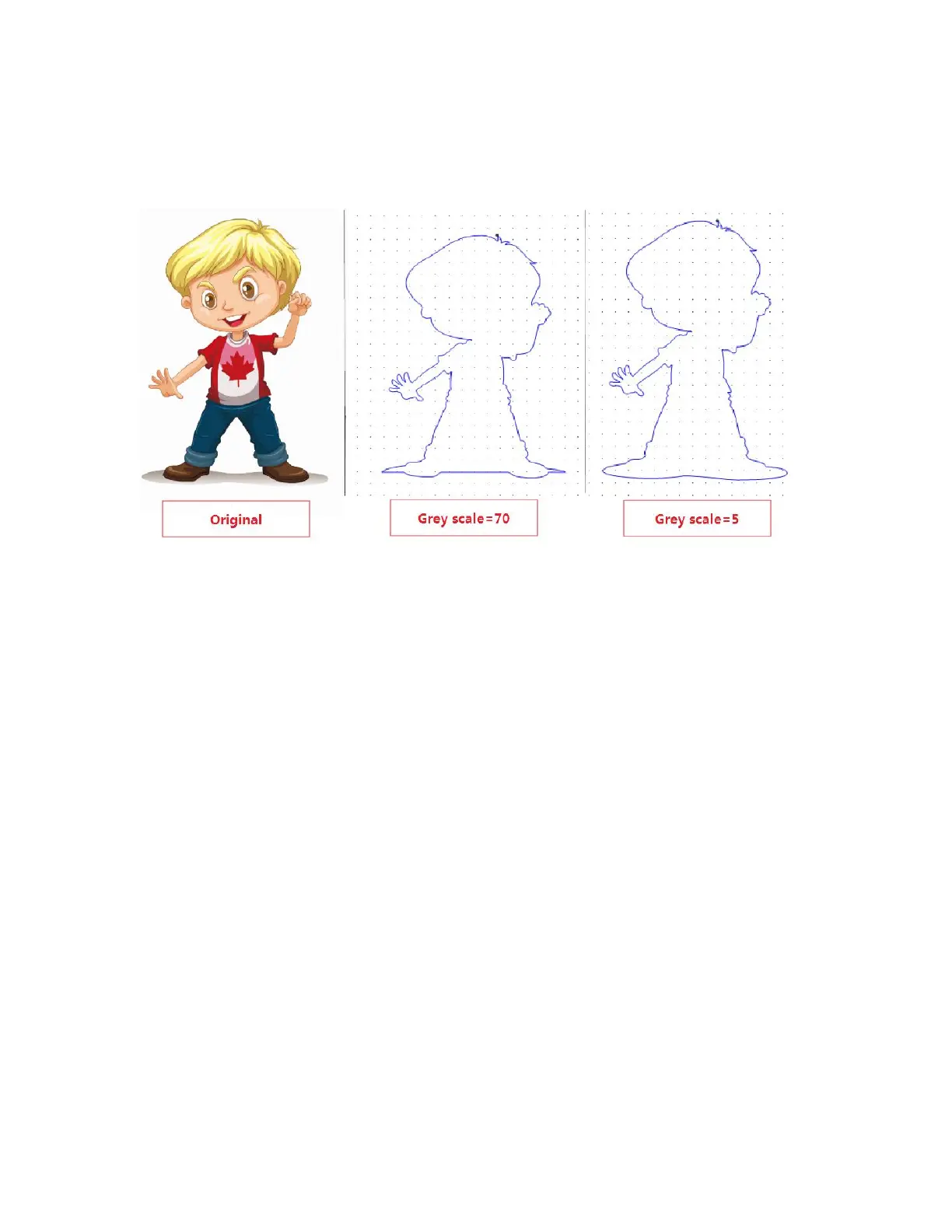

See figure below for comparison.
Precision
Default value is 1.
Precision will affect the distance between two marking points and how many
marking points can be retrieved.
Relationship among precision, distance between marking points and number of
marking points are:
• Higher precision, larger marking points distance, less marking points.
• Lower precision, smaller marking points distance, more marking points.
WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
- 25 -
