2. [Set Station Address](../topic_ls6000/set_driver_para_en.md#set-station-address)
3.4.2.1 Set Common Drive Parameters
Two methods are available for you to set the drive parameters:
Drive front panel. For details, see the drive user manual.
NcStudio software.
Follow the steps below to set drive parameters in NcStudio:

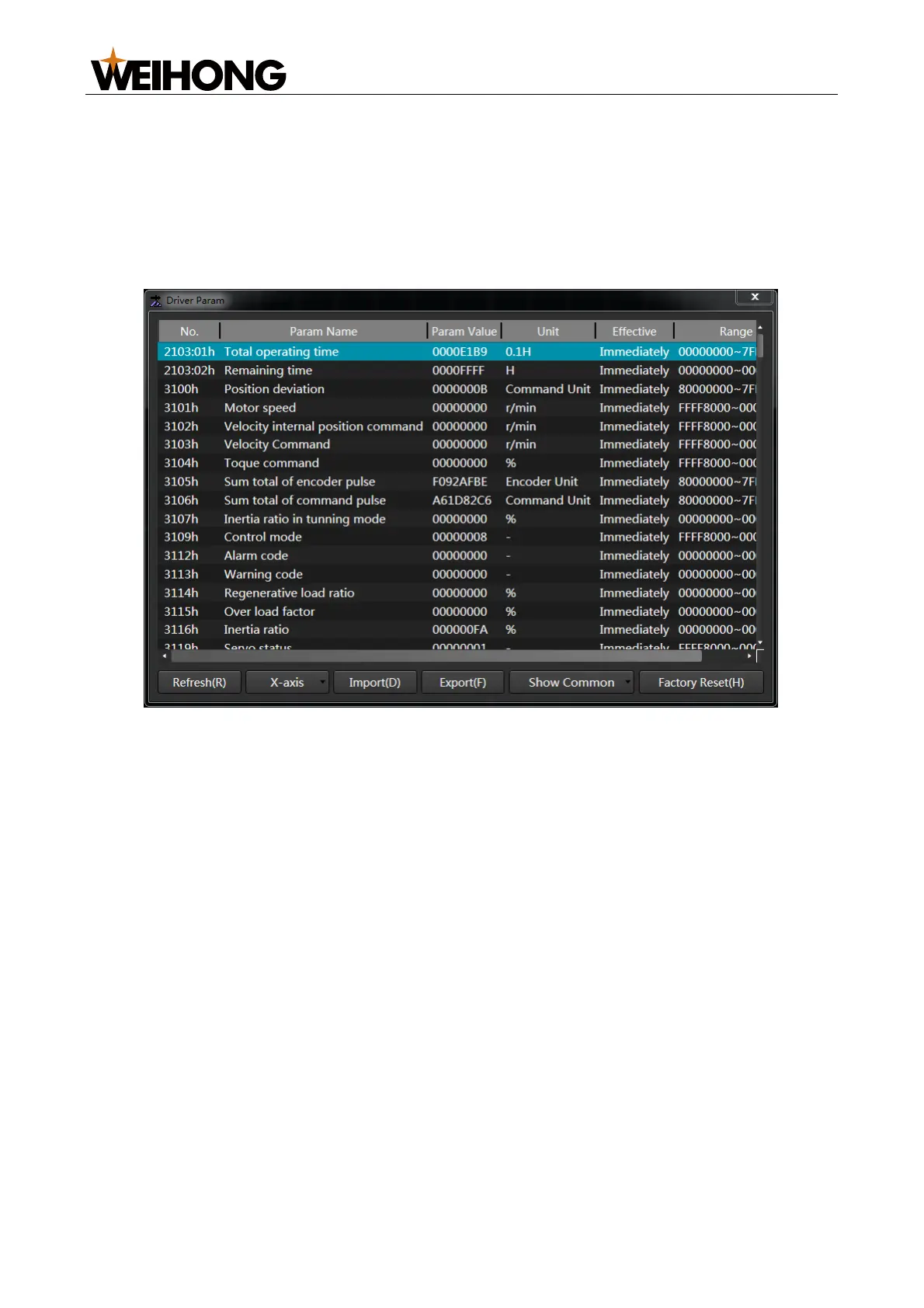

1. In the menu, click System > Drive Parameters to open the Driver Param window:
2. Click Refresh to update the drive parameters.
3. Double-click the target parameter to set it.
Basic parameters that need setting in NcStudio are shown below. Refer to the user
manual of the drive brand to set other parameters.
Yaskawa drives:
Pn00B function selection basic switch B: 0000 (three-phase)/0100 (single-phase)
Pn50A input signal selection 1: 8881
Pn50B input signal selection 2: 8888
Pn50E output signal selection 1: 0000
Pn50F output signal selection 2: 0100
Pn510 output signal selection 3: 0000
Pn514 output signal selection 4: 0000
WISE drives: Pr001 Control mode setting: 1 (position control)
3.4.2.2 Set Station Address
By setting the station address, information can be transferred between the software,
Lambda controller, and drive.
Station address of each axis drive is unique and has to be consistent with the value of the
corresponding station address parameter in NcStudio for V15. If its station address
parameter is set to 0, the communication function is disabled.
