3.4.2.2.1 Set Station Address for Yaskawa Drives
Set the station addresses for Yaskawa drives by using two types of switches on the drive:
Flip switches: Four small switches numbered 1–4 for setting of ON/OFF.
Rotation switch: Rotate the switch to select from 0–9.
Follow the steps below to set station addresses for Yaskawa drives:
1. Set flip switch 1–4 to ON, ON, OF, and OFF respectively to enable bus functions.
2. Rotate the rotation switch to select a number as the station address.
Note: Select station addresses for the axes in sequence (for example, 1 for X axis,
2 for Y axis, and 3 for Z axis, etc.).
3. Open NcStudio. Set the axis station address parameters to the values set by the
drive rotation switch.
3.4.2.2.2 Set Station Address for WISE Drives
Set the station addresses for WISE drives by using the drive front panel.
Follow the steps below to set station addresses for WISE drives:
1. Set Pr001 Control mode setting to 1.

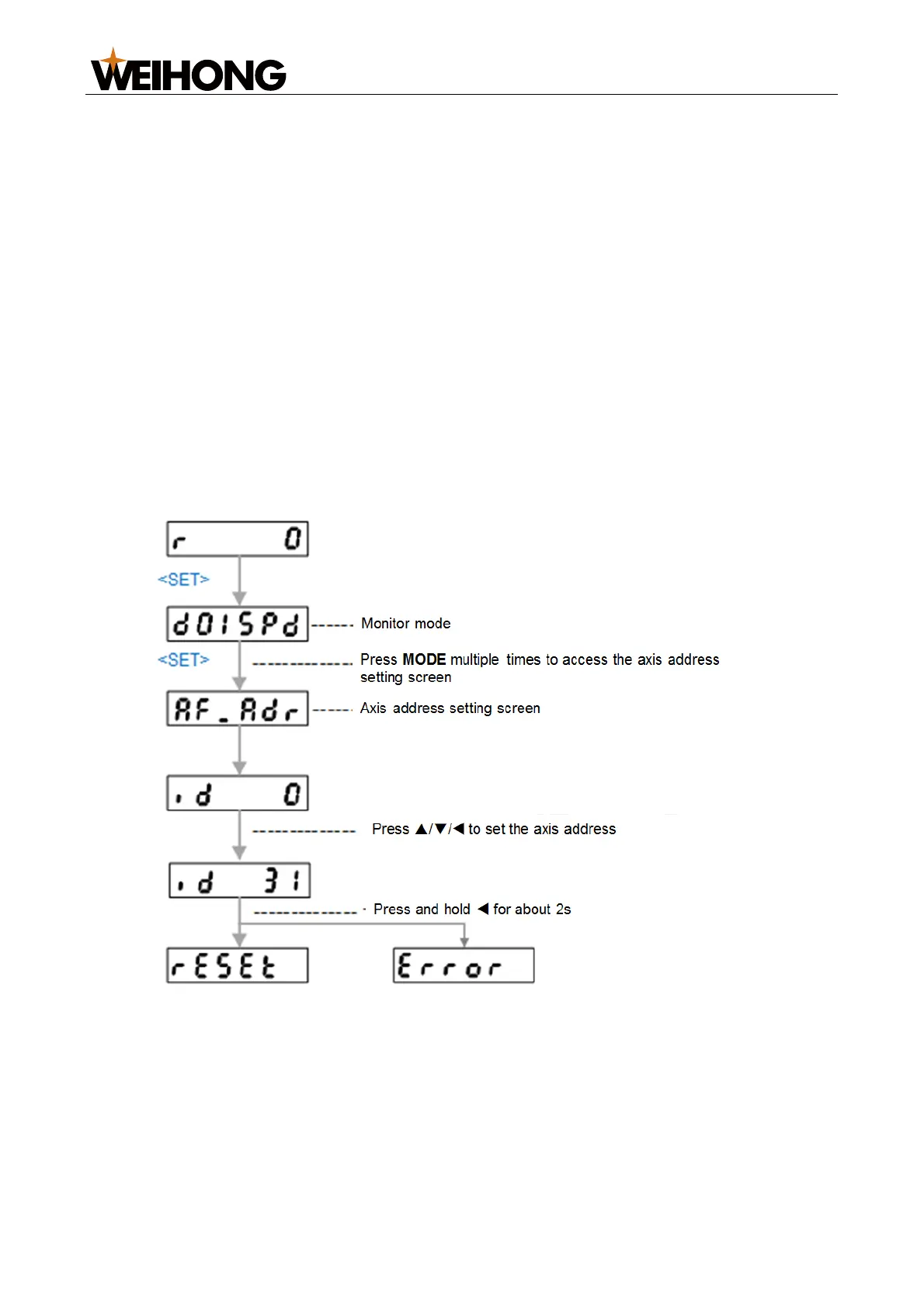

2. Set the station addresses:
o If reset is displayed, the station address is set successfully.
Power off and restart the drive to make the setting take effect.
o If Error is displayed, the station address setting has failed. Restart the drive
and try again.
3. Open NcStudio. Set the axis station address parameters to the values set by the
drive front panel.
