3. Open NcStudio. Set the axis station address parameters to the values set by the
drive front panel.
3.5 Set Bus System Parameters
If you are using a bus system, set the bus system parameters.
Follow the steps below to set the bus system parameters:
1. In the function bar, click Set.
2. Click the System Parameters tab:
3. Click the pull-down menu in the lower-left corner and select Manufacturer.
4. Double-click and set the following parameters:
o Drive station address (X/Y1/Y2): The values need to be the same as those
set by the drive rotation switch. 0 is ineffective.
o Encoder Digits (X/Y1/Y2): The digit number of the servo motor encoder.
o Numerator of Electronic Gear Ratio: Set it to the numerator of the axis
electronic gear ratio.
o Denominator of Electronic Gear Ratio: Set it to the denominator of the axis
electronic gear ratio.
o Axis direction
o Encoder direction
3.6 Set Speed Parameters
You can set basic speed parameters to adjust machining speeds.

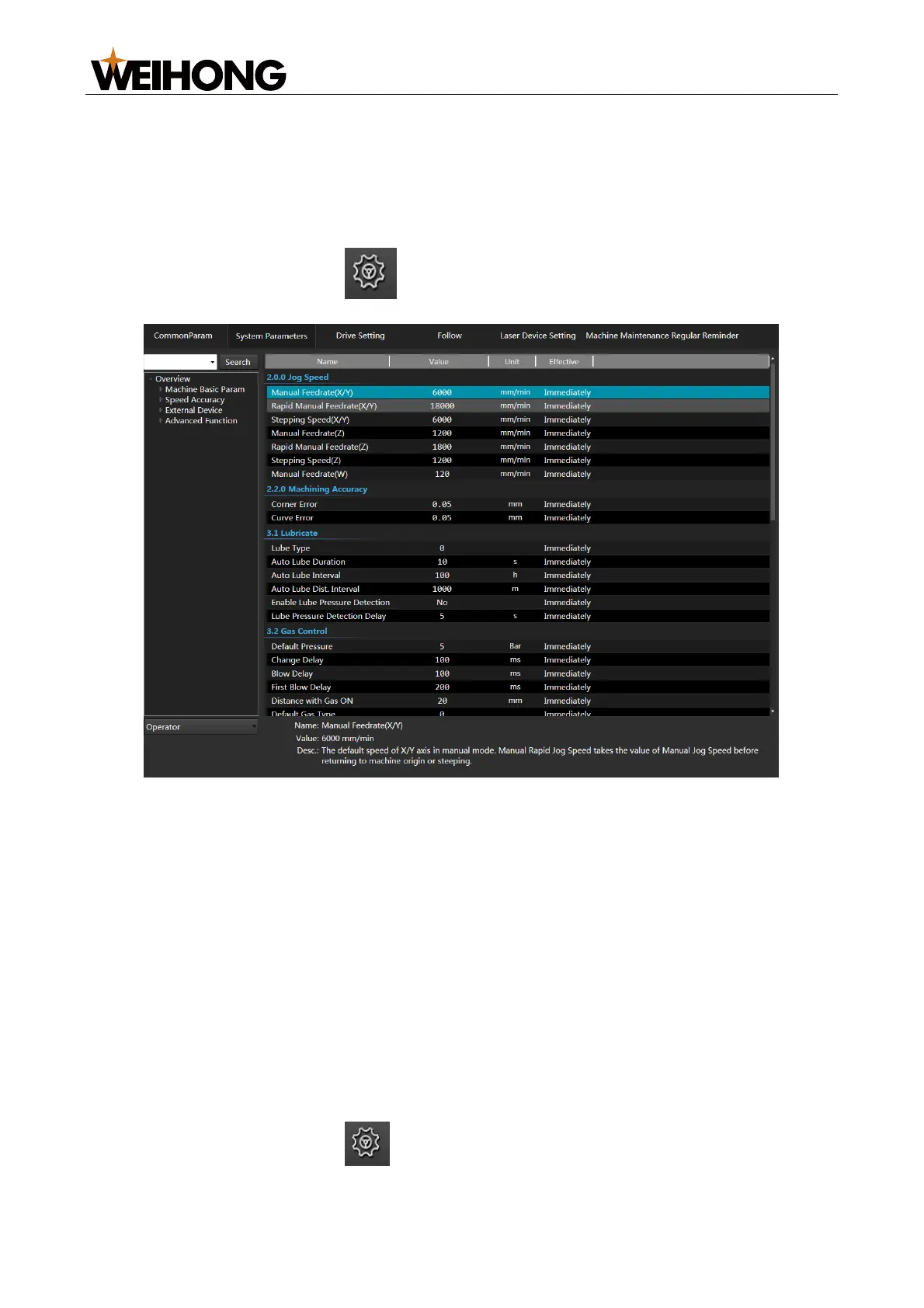

Follow the steps below to set speed parameters:
1. In the function bar, click Set.
