上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
40 / 116

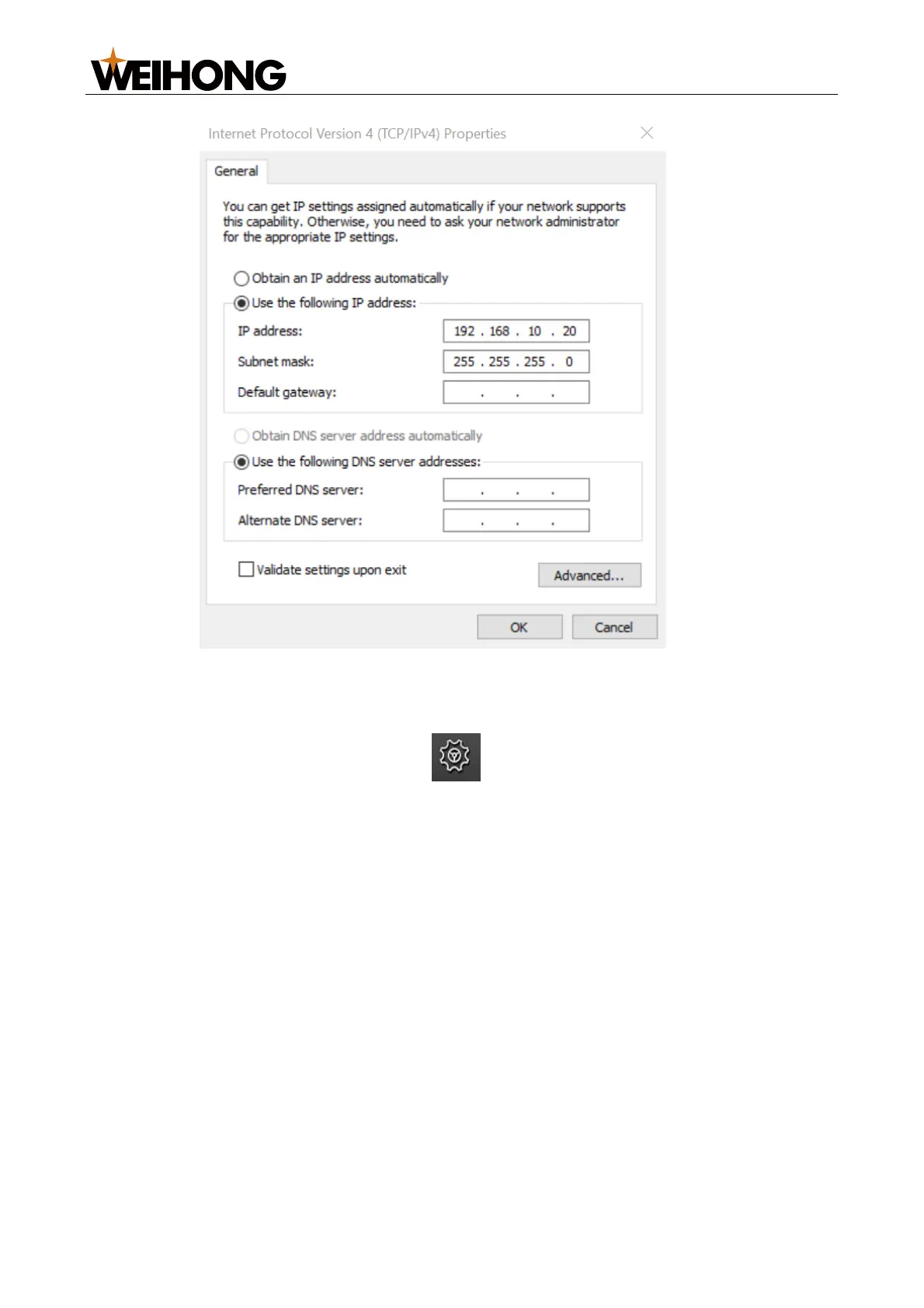

The IP address first three sections, subnet mask, and default gateway need
to be the same as those for the camera. The last section of the IP address
needs to be different from that of the camera IP address.
2. In the NcStudio function bar, click Set > System Parameters. In the
External Device > 3.0 Monitoring category, set Enable Camera to Yes.
3. In the camera monitor area, click login in the right-click menu:
4. Select the camera type, camera IP address, port number, username, and password.
After logging in, the camera image will be displayed in the camera monitoring area.
Double-click in the camera monitor area to switch between different numbers of cameras.
If the camera is replaced in the future, click Logout in the right-click menu in the camera
monitor area and repeat the previous steps to log in again.
3.13.2 Modify the Camera IP Address
Taking Dahua cameras as an example, follow the steps below to change the camera IP
address (those for Hikvision cameras are the same):
1. Open the browser and enter the camera IP address. The camera login screen will
be displayed.
2. Contact the camera manufacturer to acquire the initial password and log in:
Note: You need to change the password after initial login.
3. Follow the steps below to open the TCP/IP dialog box:
a. Click the Settings tab.
b. In the left list, click Network Setting > TCP/IP.
To Next Page
