 HFB 1000-1500W laser
 GW SMATLas 3S laser
Note: All MOD pins of EX33A extension terminal boards shown in the following diagrams
are MOD(24V).
5.2.1 IPG-YLR Series Laser

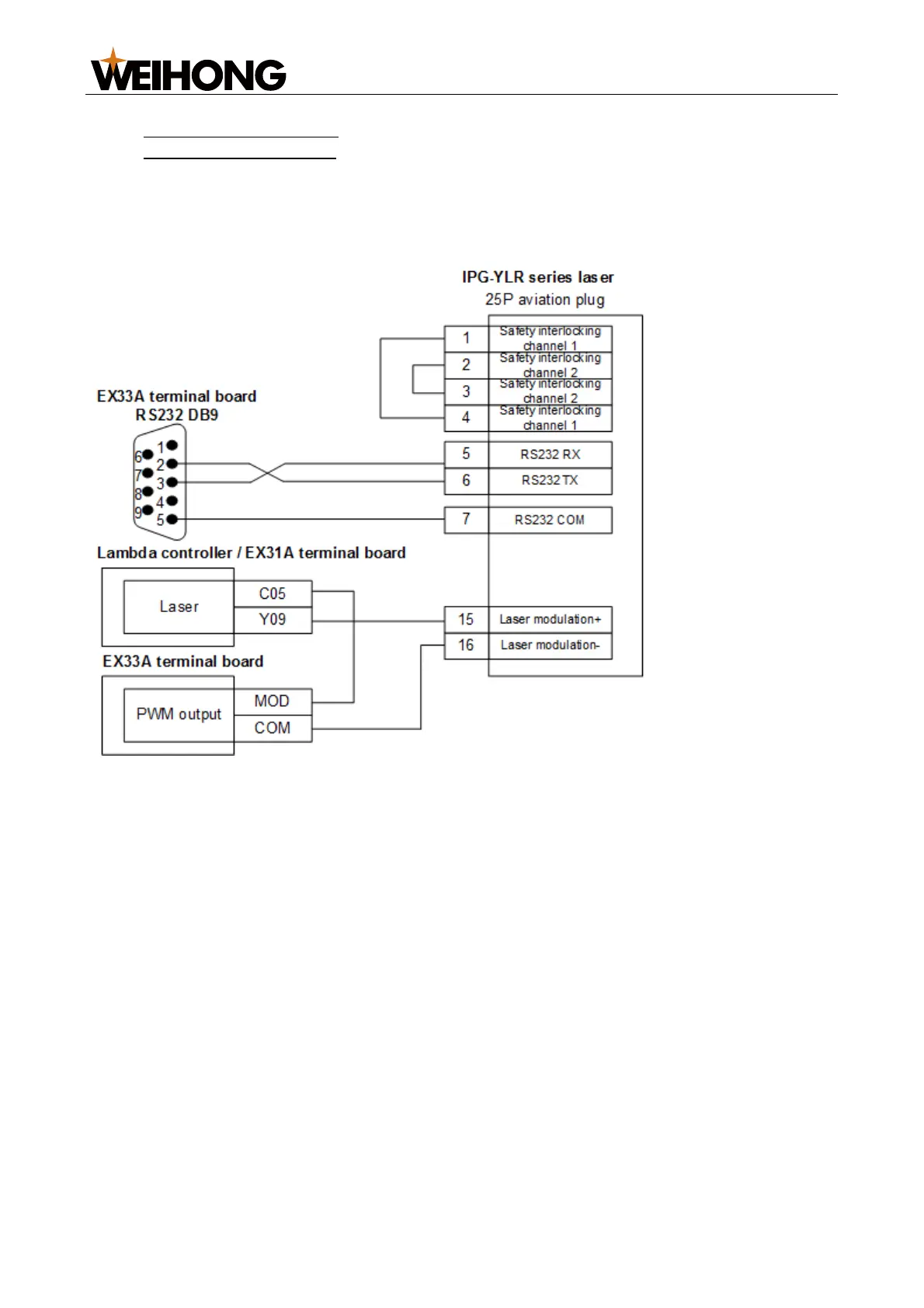

The wiring diagram is shown below:
5.2.2 Feibo MARS-500W Laser
The wiring diagram is shown below:
