Weishaupt W-FM 200 User Manual

Installation and operating instruction
Combustion manager W-FM 100 und W-FM 200
6 Operation
83054802 1/2018-07 La
132-228
6.12.12.2 Multi-stage switch threshold
Param & Display LoadController ControlParam ThreshStage2On
ThreshStage3On

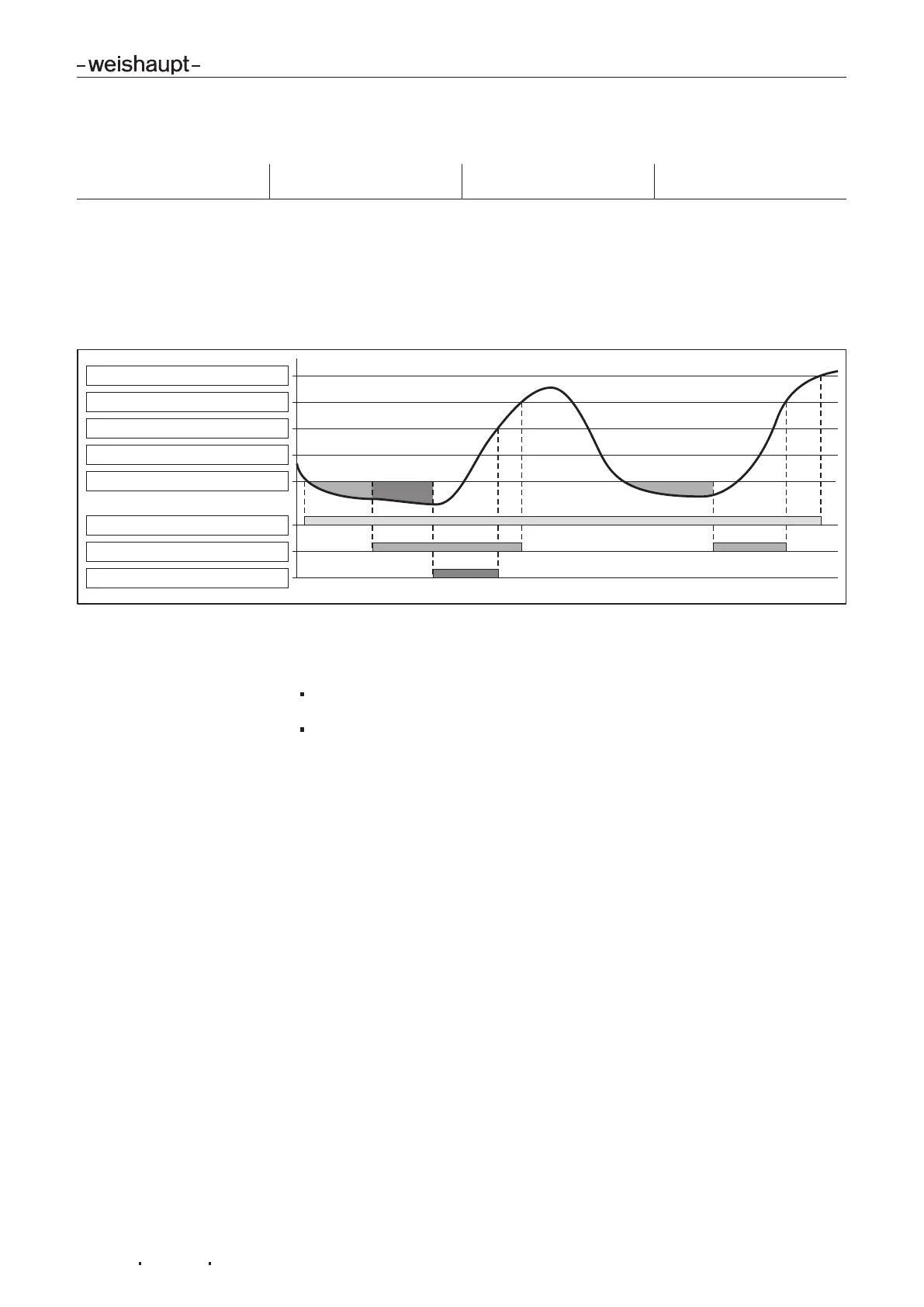

Parameter ThreshStage…On stipulates the switch threshold for stage2 and
stage3. The switch threshold influences the switching of the stages.
If the actual value drops below Sd_Stage1On the W-FM forms the integral from
control deviationxtime. When the value reaches ThreshStage2On (Q2)
stage2 switches.
If the value reaches ThreshStage3On (Q3) before Sd_Stage1On is not
achieved, stage3 switches.
Q2 Q2Q3
Sd_Stage1Off
Sd_Stage2Off
Sd_Stage3Off
Setpoint (W)
Sd_Stage1On
Stage 1 (controller ON)
Stage 2
Stage 3
6.12.12.3 Low impact start
If a three stage burner is to be operated two stage with low impact start:
Set parameter Sd_Stage2Off and Sd_Stage1Off to the same value.
When Sd_Stage2Off is reached, the W-FM initiates a shutdown.
Set parameter ThreshStage2On to 0.
if the W-FM releases the load control, stage2 switches immediately. Stage3
only switches once the switch threshold (Q3) has been reached.
