Rotary indexing ring TR
Technical data
Product type: TR2200A

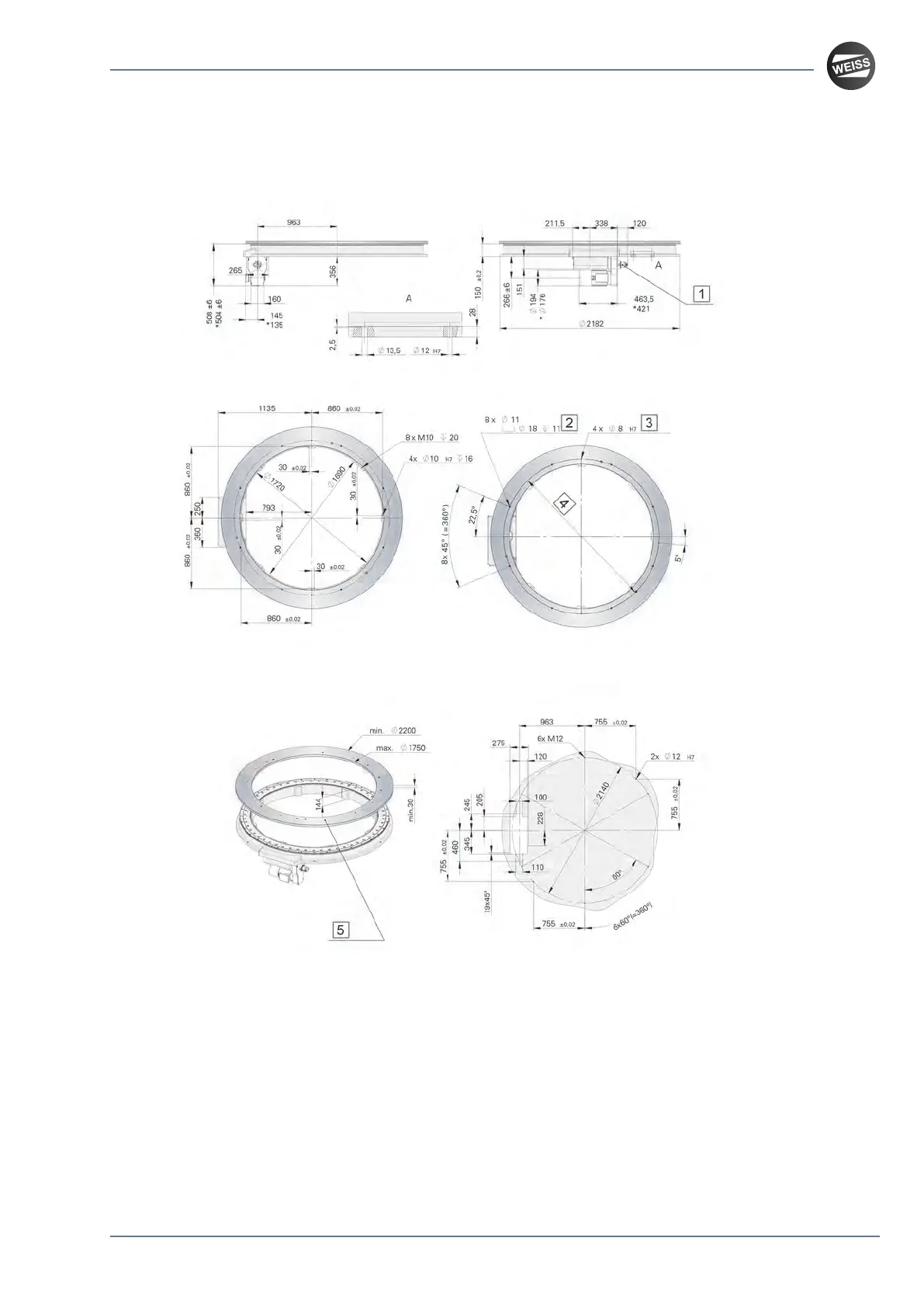

Figure 5: Lengths and diameters in mm
* Dimensions with motor size 90
1 DRIVE-CLiQ encoder (optional) 4 Ø 1880 ± 0.1; ± 0.02 at Ø 8 H7
2 Through hole 5 Plate is customer-specific. Do not drill through the
plate in the minimum area/maximum area.
3 Through hole
Mounting instructions_062019_4.0_en
25 / 79
