Page 11

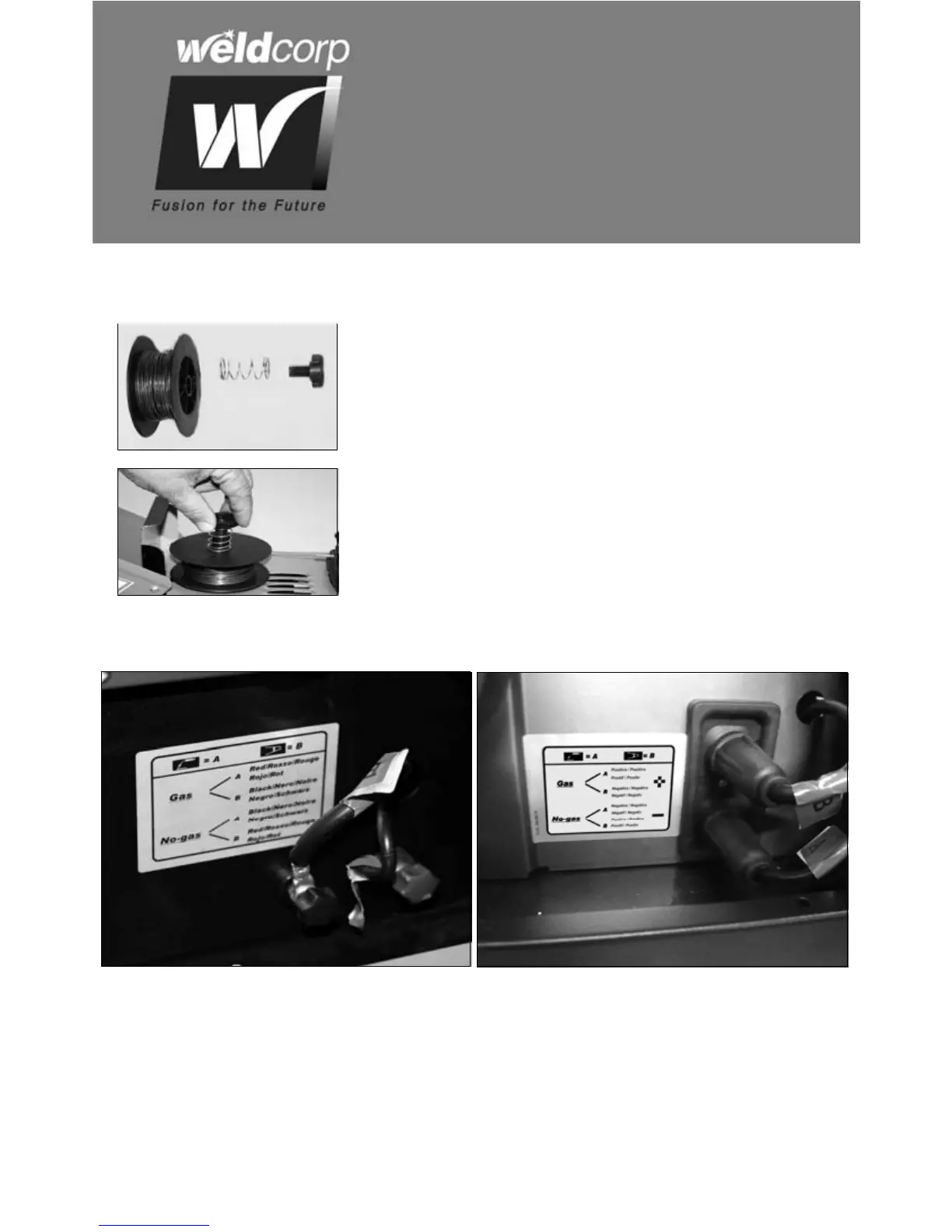

OPERATION–Mounting of the Refill Wire
spool
For the MIG 100, MIG 120 and MIG 160
Remove empty spool and replace with refill spool as
pictured to the left.
Set the wire reel onto the spool and ensure that the
turns are not crossed on one another on the reel and
that they can easily unwind. Fit the washer, spring
and knob back into place as pictured to the left.
NOTE: Larger capacity gas bottles and regulators can be used with MIG 120 and
MIG 160 Welders. Contact your nearest Industrial Gas Dealer.
OPERATION–Gas or No Gas Application
NOTE: Ensure that the correct Gas or No Gas cable position is selected for the
MIG 120 or for the MIG 160 Welders. This is located inside the cabinet below the
wire feed.
