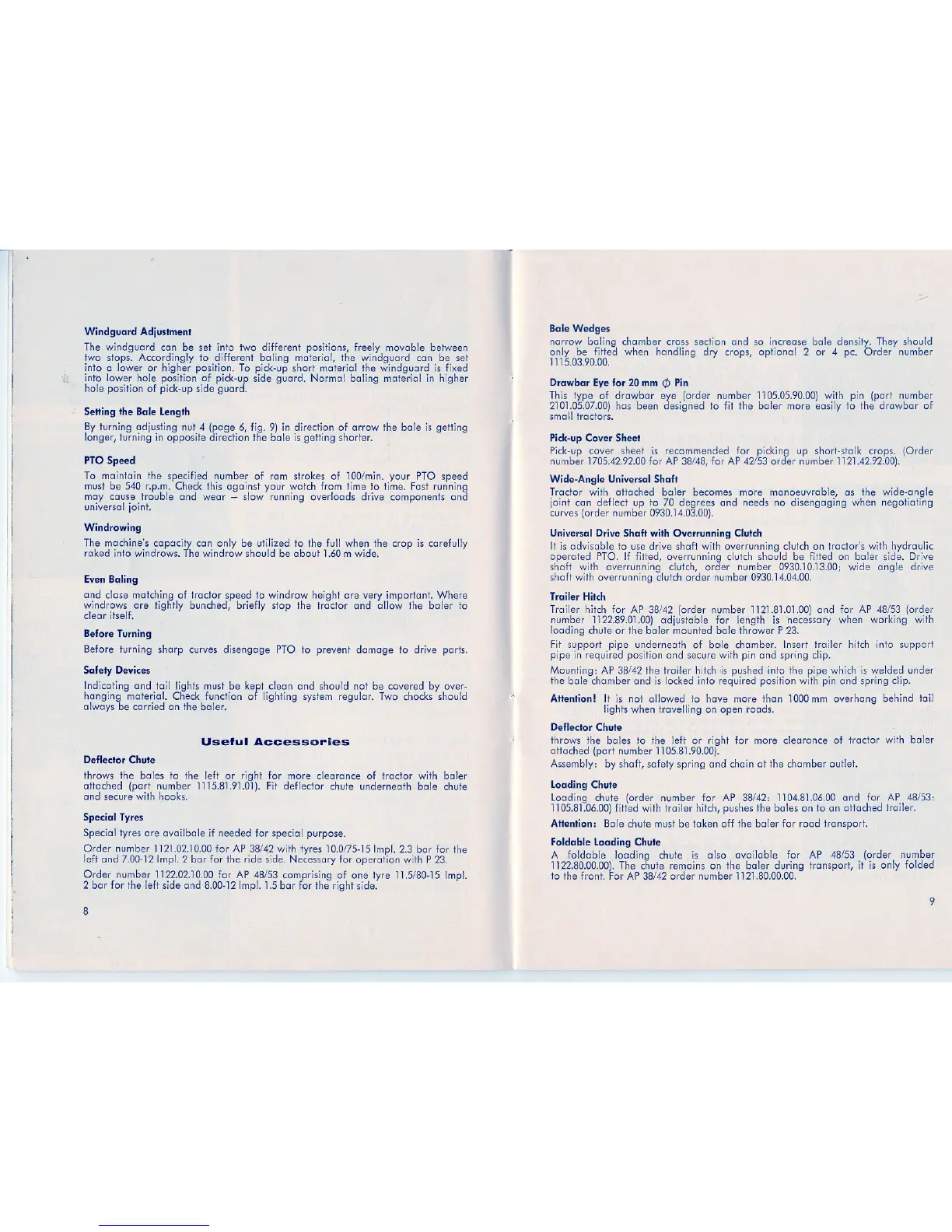

Windguard Adjusfmenf
The windguard can be set info two different positions, freely movable between
two stops. Accordingly to different baling material, the windguard can be set
info a lower or higher position. T0 pick-up short material the windguard is fixed
intb ,tower hole po
.
sition of pick-up side guard. Normal baling material in higher
hole position of pick-up side guard.
, Seffing fhe Bale Lengfh
By turning adjusting nut 4 (page 6, fig. 9) in direction of arrow the bole is getting
Ionger, turning in opposi.te direction the bole is getting shorter.
pro Speed
To maintain the specified number of rem strokes of 100/min. your pro speed
must be 540 r.p.m. Check this against your watch from time to time. Fast running
may causa trouble end wear - slow running overloads drive components end
universal joint.
Windrowing
The machine's capacity can only be lJ.tilized to the full when the crop is carefully
raked info' windrows. The windrow should be about 1.60 m wide.
EvenBaling
end close matching of tractor speed to windrow height are very important. Where
windrows are tigntly bunched, briefly stop the tractor end allow the baler to
clear itself.
Before Turning
Before turning sharp curves disengage pro to prevent damage to drive parts.
Safety Devices
Indicating end teil lights must be kept clean end. shou,ld not be covered by over-
hanging material. Check function of lighting system regular. Two chocks should
always be carried on the baler.
Useful Accessories
Deflecfor Chufe
throws the boles to the left or right for more clearance of tractor with baler
attached (part number 1115.81.91.01). Fit deflector chute underneath bole chute
end secure with hooks.
Special Tyres
Special Irres are availbale if needed for special purpose.
Order number 1121.02.10.00for AP 38/42 with ~yres 10.0/75-15Impl. 2.3 bar for the
left end 7.00-12 Impl. 2 bar for the ride side. Necessary for operation with P 23.
Order number 1122.02.10.00for AP 48/53 comprising of one Irre 11.5/80-15 Impl.
2 bar for the-Ieft side end 8.00-12Impl. 1.5 bar for the right side.
8
/
Bale Wedges
narrow baling chamber cross section end so increase bole density. They should
only be fitted when handling dry crops, optional 2 or 4 pe. Order number
1115.03.90.00.
Drawbar Eye for 20 mm (/) Pin
Thi5 type of drawbar eye (order number 1105.05.90.00) with pin (part number
2101.05.07.00)has been designed to f.it the baler more easily to the drawbar of
small tractors.
~
Pick-upCover Sheef
Pick-up cover sheet i5 recommended for pic~ing up short-stalk crops. (Order
number 1705.42.92.00for AP 38/48, for AP 42/53 order number 1121.42.92.00).
Wide-Angle
Universal Shaft -
Tractor with attached baler becomes more manoeuvrable, as the wide-angle
joint can deflect up to 70 degrees end needs no disengaging when negotiating
curves (order number 0930.14.03.00).
Universal Drive Shaft wifh Overrunning Clufch
It is advisable to use drive shaft with overrunning clutch on tractor's with hydraulic
opemted pro. If fitted, overrunning dutch shou'ld be fitted on baler side. Drive
sllaft with overrunning clutch, order number 0930.10.13.00i wide angle drive
sIlan with overrunning clutch order number 0930.14.04.00.
TrailerHifch
Trailer hitch for AP 38/42 (order number 1121.81.01.00)end for AP 48/53 (order
number 1122.89.01.00) adjustable for length is -necessary when working with
loading chute or the baler mounted bole thrower P 23.
Fit support pipe underneath
of ba,le chamber. Insert trailer h,itch ,info support
pipe in required position end secure with pin end spr,ing clip.
Mounti.ng: AP 38/42 the trai,ler hitch ,is pushed ,info the pipe which is welded under
fhe boJe chamber end i5 locked info required position with pin end spning clip.
Attention! It is not allowed to have more thon 1000mm overhang behind teil
lights villen trave,lIing on open roads.
Deflecfor Chufe
throws the boles to the left or right for more clearance of tractor with baler
attached (part number 1105.81.90.00).
Assembly: by shaft, safety spring end chain at the chamber outtet.
Loading Chute
Loading chute (order number for AP 38/42: 1104.81.06.00 end for AP 48/53:
1105.81.06.00)fitted with trailer hitch,pushes the boles on to an attached trailer.
Attenfion: Bale chute mu~t be laken off the baler for road transport.
Foldable Loading Chufe
A foldable loading chute is also available for AP 48/53 (order number
1122.80.00.00).The chute remains on the baler during transport, it is only folded
to the front. For AP 38/42 order number 1121.80.00.00.
9
~
