Owner’s Manual
HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000
Cool air outlet
Front and Right Side View
Display / Control board
Top fan exhaust flange
Evaporator / filter
Condenser / filter
Figure 27
Figure 26
Figure 28
Figure 29
Back and Le Side View
Condenser / filter
Power cord holder
Caster
Electrical access panel
Drain pump hose connector
Handle
Drain pump included
Figure 30
Figure 31
1. Remove cool air outlet hose(s) from
carton.
2. Place the cool air outlet hose(s) on
the front top of air condioner.
3. Use screws (enclosed inside of box
with cool air outlet hose(s) to install
the cool air outlet hose(s)
on the air condioner as shown in
Figure 29.
1. Take out the cord holder
from the accessory box.
2. Place the cord holder on
the back side of air condioner.
3. Use screws (enclosed inside of
accessory box ith cord
holder)to install the cord
holder on the air condioner
as shown in Figure 28.
EXHAUST FLANGE
1. Remove the top fan exhaust flange from carton.
2. Place the top fan exhaust flange on the top of air condioner.
3. Use screws (enclosed inside of box with the top fan exhaust flange)
to install the top fan exhaust flange on air condioner as shown in Figure 30.
AMBIENT AIR ADAPTERS (Oponal)
Ambient air adapters can be purchased separately. Air
adapter fits over the condenser to duct condenser air to
the unit to improve cooling efficiency.
1. Remove air adapters from cartons.
2. Place air adapters on the both side of air condioner.
3. Use screws (enclosed inside of box with air adapter) to
install the adapter on the air condioner as shown in
Figure 31.
POWER CORD HOLDER
DISCHARGE DUCTS
/SUPPLY AIR DUCT
Component Parts

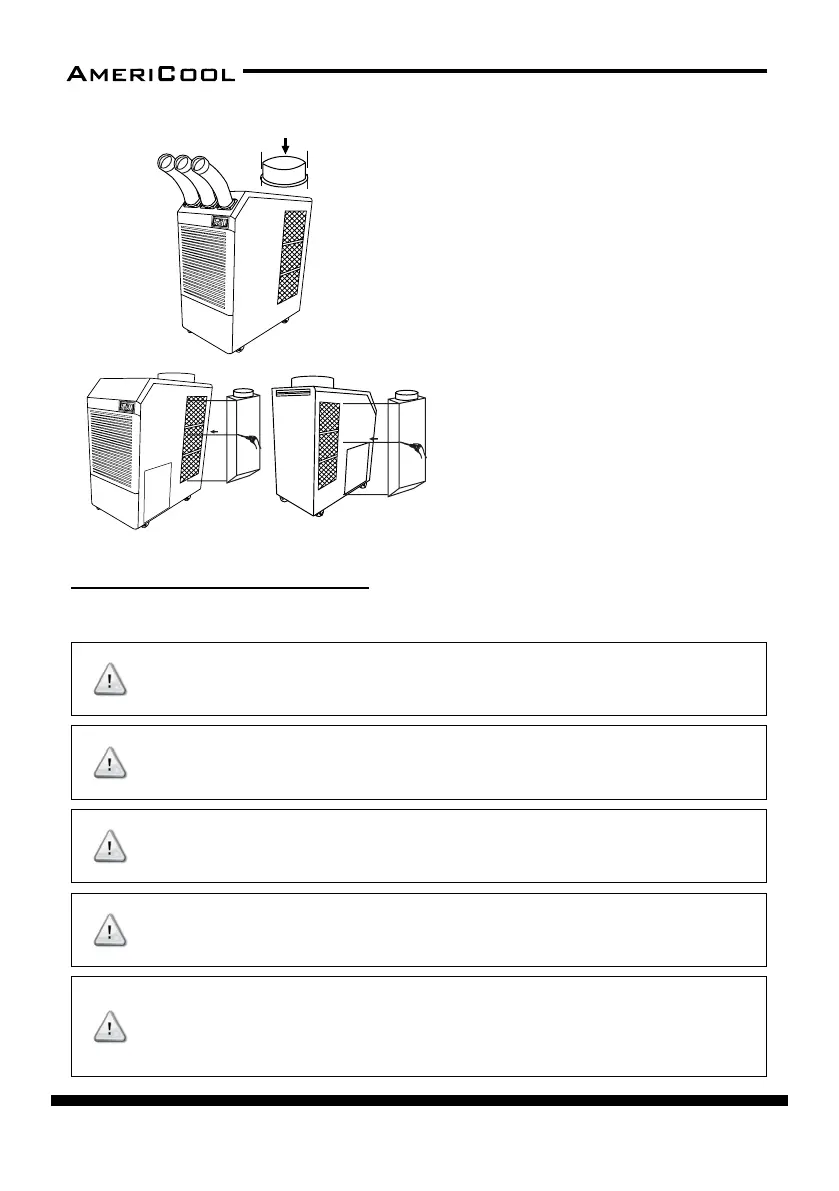

WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION
INSTALLATION GUIDE
DO NOT use the unit in explosive environments or
in areas where ammable gas leakage may occur
DO NOT use the unit in areas where it will be
exposed to rain or water
DO NOT use the unit in a corrosive atmosphere
DO NOT use the unit above 113˚ F (45˚ C)
DO NOT install the unit on uneven or sloping sur
-
face. The unit may roll or topple over even if casters
are set in the locked posion
WARNING
WARNING
WARNING
WARNING
WARNING
