Owner’s Manual
HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000

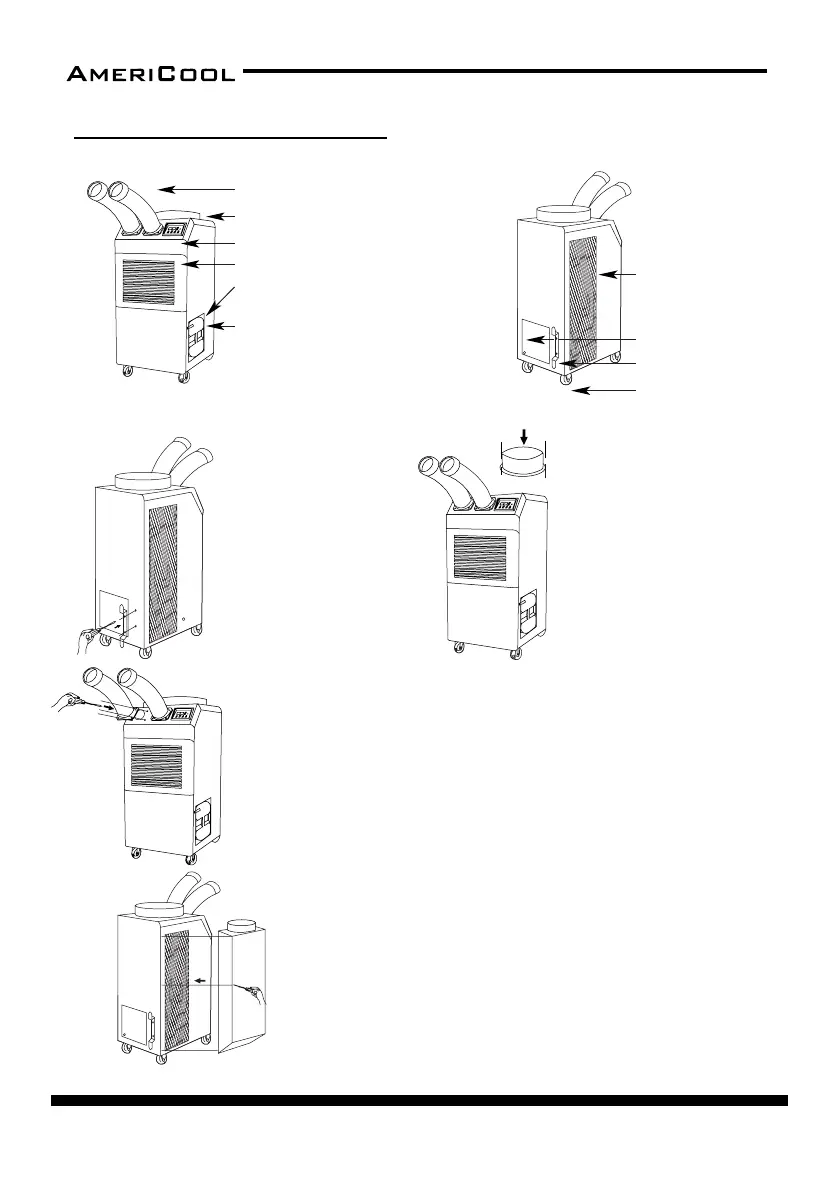

ASSEMBLY(WPC-4000)
COMPONENT PARTS
Cool air outlet hose
Display / Control board
Top fan exhaust flange
Evaporator / filter
Guide bar for condensate water tank
Condensate water tank (Water level is
sensed, and the unit operaon is stopped
when tank is full. An alarm will be
displayed. Empty the tank and replace to
resume operaon)
1. Take out the cord holder from
the accessory box.
2. Place the cord holder on the
back side of air condioner.
3. Use screws (enclosed inside
of accessory box with cord holder)
to install the cord holder on the
air condioner as shown in Figure 9.
1. Remove cool air outlet hose(s) from carton.
2. Place the cool air outlet hose(s) on the front top of air condioner.
3. Use screws (enclosed inside of box with cool air outlet hose(s) to install
the cool air outlet hose(s) on the air condioner as shown in Figure 11.
An ambient air adapter can be purchased separately. Air adapter
fits over the condenser to duct
condenser air to the unit to improve
cooling efficiency.
1. Remove air adapter from carton.
2. Place air adapter on the rear of air condioner.
3. Use screws (enclosed inside of box with air adapter) to install the
adapter on the air condioner as shown in Figure 12.
POWER CORD HOLDER
DISCHARGE DUCTS/SUPPLY AIR DUCT
Figure 8
Back and Le Side View
Figure 7
Front and Right Side View
Figure 9
Figure 11
Figure 12
Condenser / filter
Power cord holder
Caster
Electrical access panel
1. Remove the top fan exhaust
flange from carton.
2. Place the top fan exhaust flange
on the top of air condioner.
3. Use screws (enclosed inside
of box with the top fan exhaust
flange) to install the top fan
exhaust flange on air condioner
as shown in Figure 10.
TOP FAN EXHAUST FLANGE
Figure 10
AMBIENT AIR ADAPTER (Oponal)
