Owner’s Manual
HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000
Wiring Diagram
(TH1)
(TH2)
(TH3)
DRAIN
PUMP

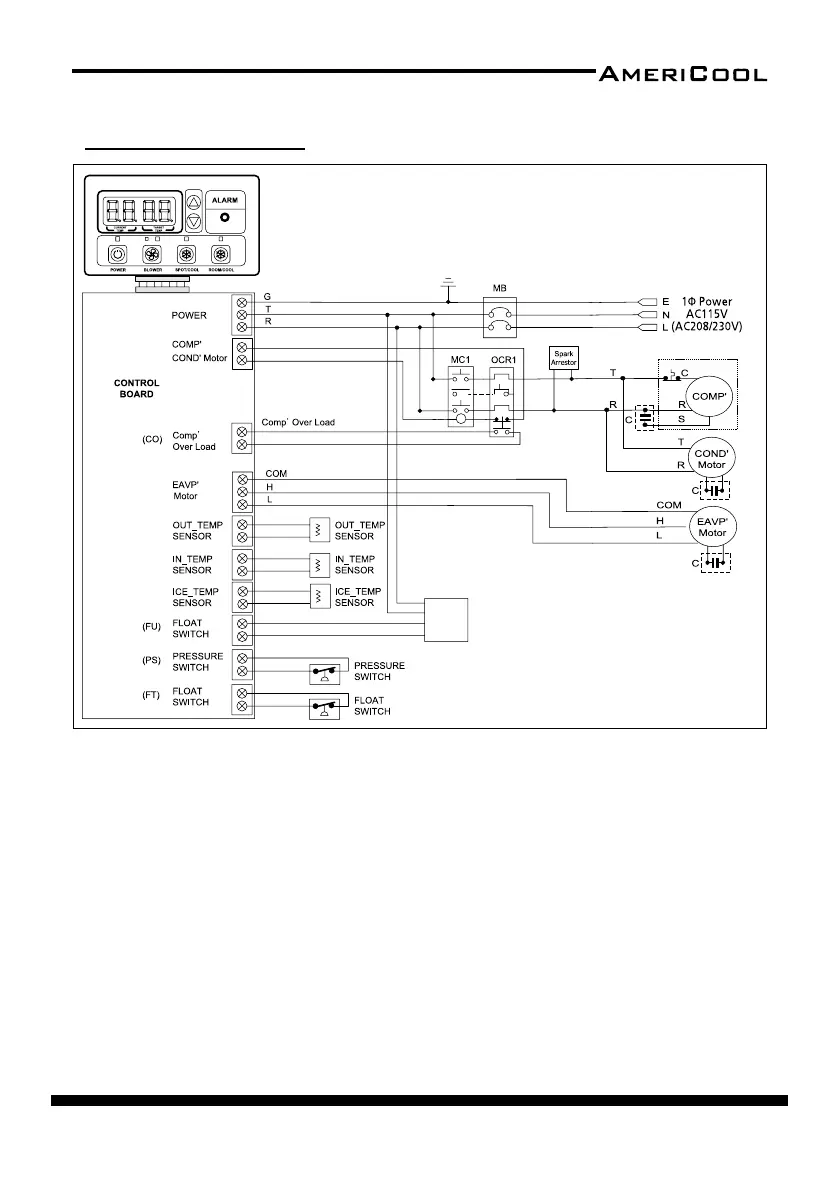

Figure 36 - Circuit Wiring Diagram (Models HPC-3000 / HPC-5000 / HPC-7000)
