12

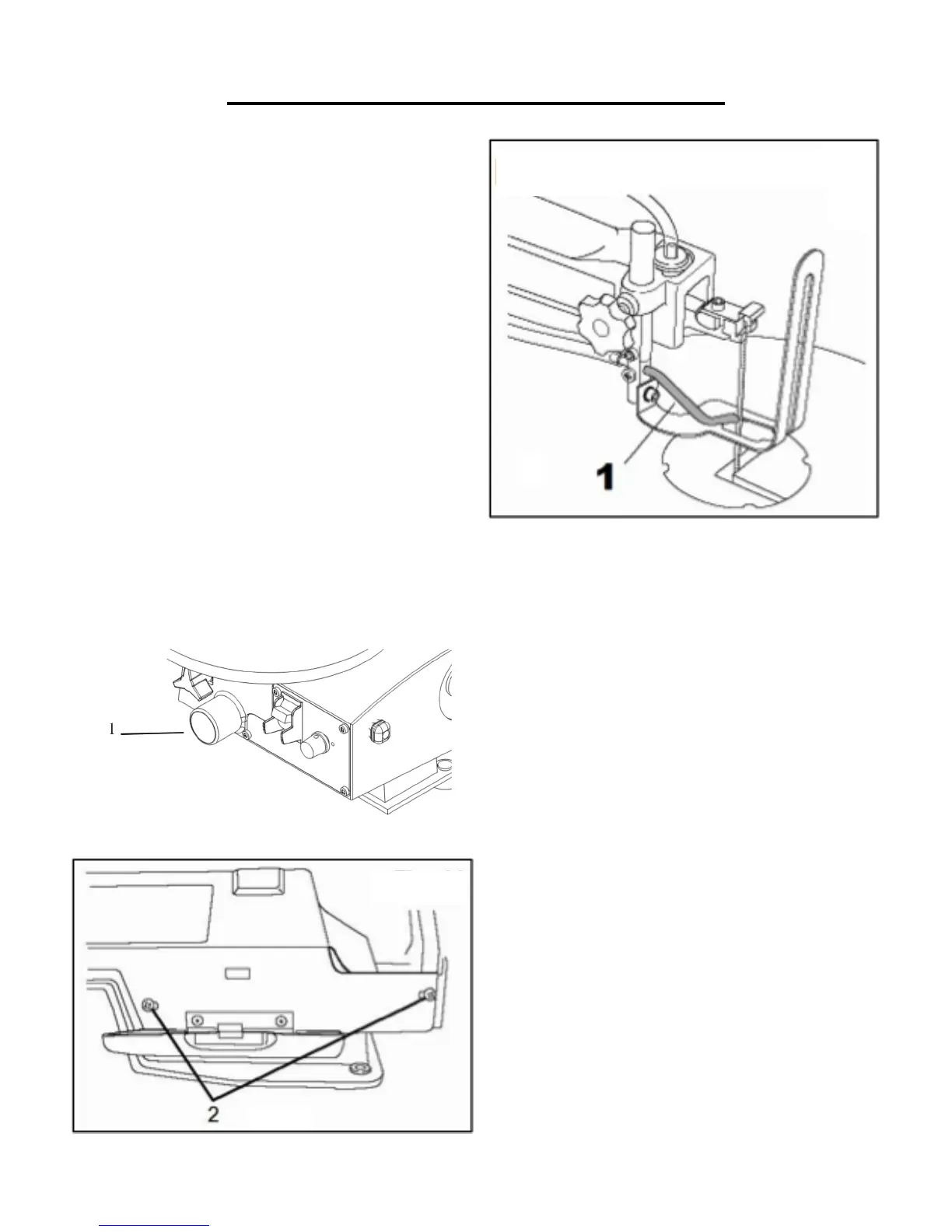

ADJUSTING THE DUST BLOWER (Fig. 9)
For best results, the dust blower tube (1) should
be adjusted to direct air at both the blade and the
work piece.
ASSEMBLY AND ADJUSTMENTS
FIGURE 9
FIGURE 11
SAWDUST COLLECTION PORT (Fig. 10
and 11)
This scroll saw allows a hose or vacuum accessory
(not provided) to be connected to the dust chute
(1). If excessive sawdust buildup occurs inside the
base, use a wet/dry vacuum cleaner or manually re-
move sawdust by removing the screws (2) and metal
plate on the left side of the saw. Reattach the metal
plate and screws before starting the saw. This will
keep your saw cutting efficiently.
FIGURE 10
