ANGLE CUTTING (BEVELING) (Fig. 18)
1. Layout or secure design to work piece.
2. Move the blade guard foot to the highest po-
sition by loosening the height adjustment knob
(1). Retighten.
3. Tilt the table to the desired angle by loosen-
ing the table bevel lock handle (2). Move the
table to the proper angle using the degree scale
and the pointer (3).
4. Tighten the table bevel lock handle (2).
5. Loosen the blade guard screw, and tilt the
blade guard to the same angle as the table. Re-
tighten the blade guard screw.
6. Position the work piece on the right side of
the blade. Lower the blade guard foot against
the surface by loosening the height adjustment
knob. Retighten.
7. Follow steps 5 to 7 under Freehand cut-
ting.
INTERIOR CUTTING (Fig. 19)
1. Lay out the design on the work piece.
Drill a 1/4” hole in the work piece.
2. Remove the blade. See Blade removal
and installation.
3. Place the work piece on the saw table
with the hole in the work piece over the ac-
cess hole in the table.
4. Install a blade through the hole in the
work piece.
5. Follow steps 3-7, under Freehand cutting.
6. When finished making the interior scroll cuts simply turn the scroll saw OFF. Unplug the saw before
removing the blade from the blade holder. Remove the work piece from the table.
OPERATION

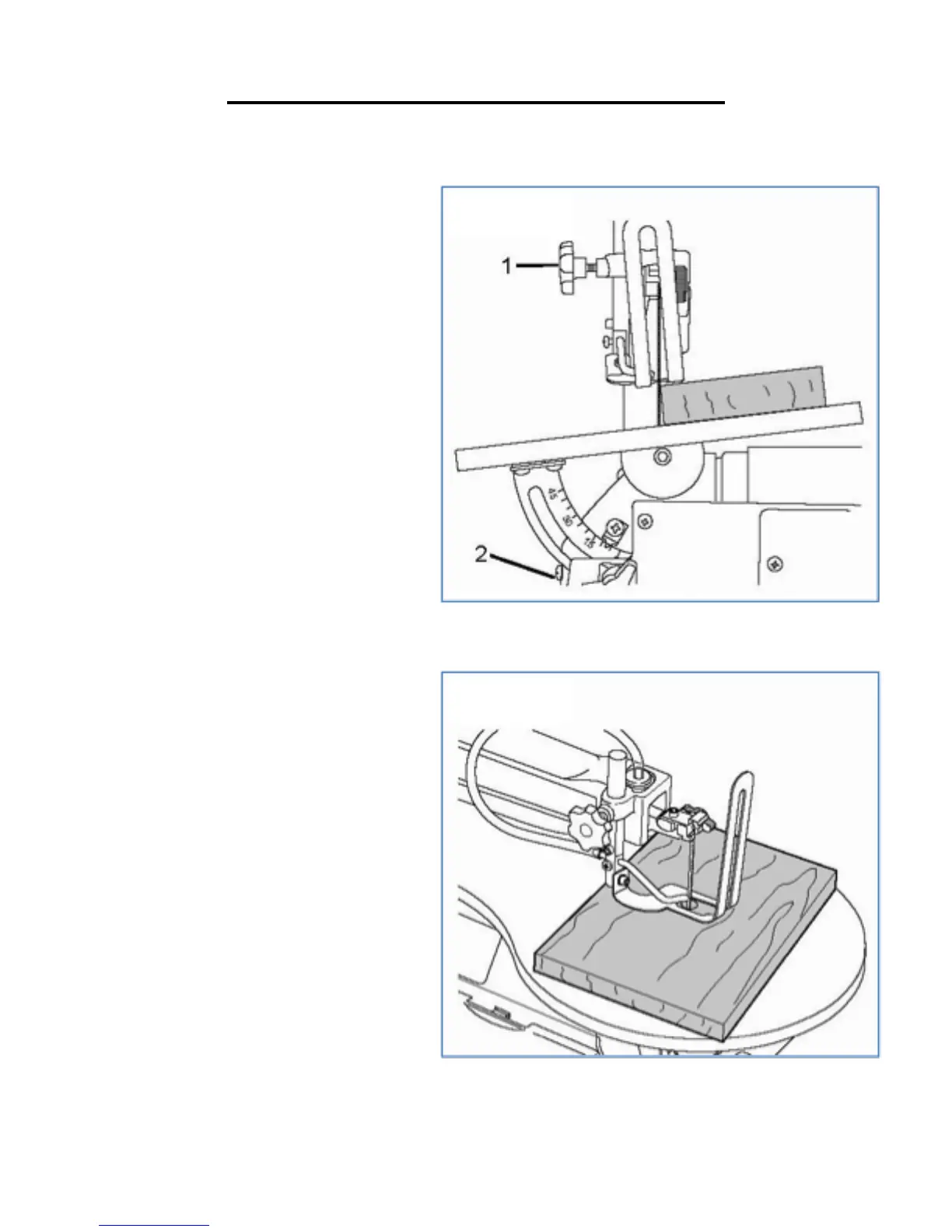

FIGURE 18
FIGURE 19
