KNOW YOUR BAND SAW
TOOL PURPOSE

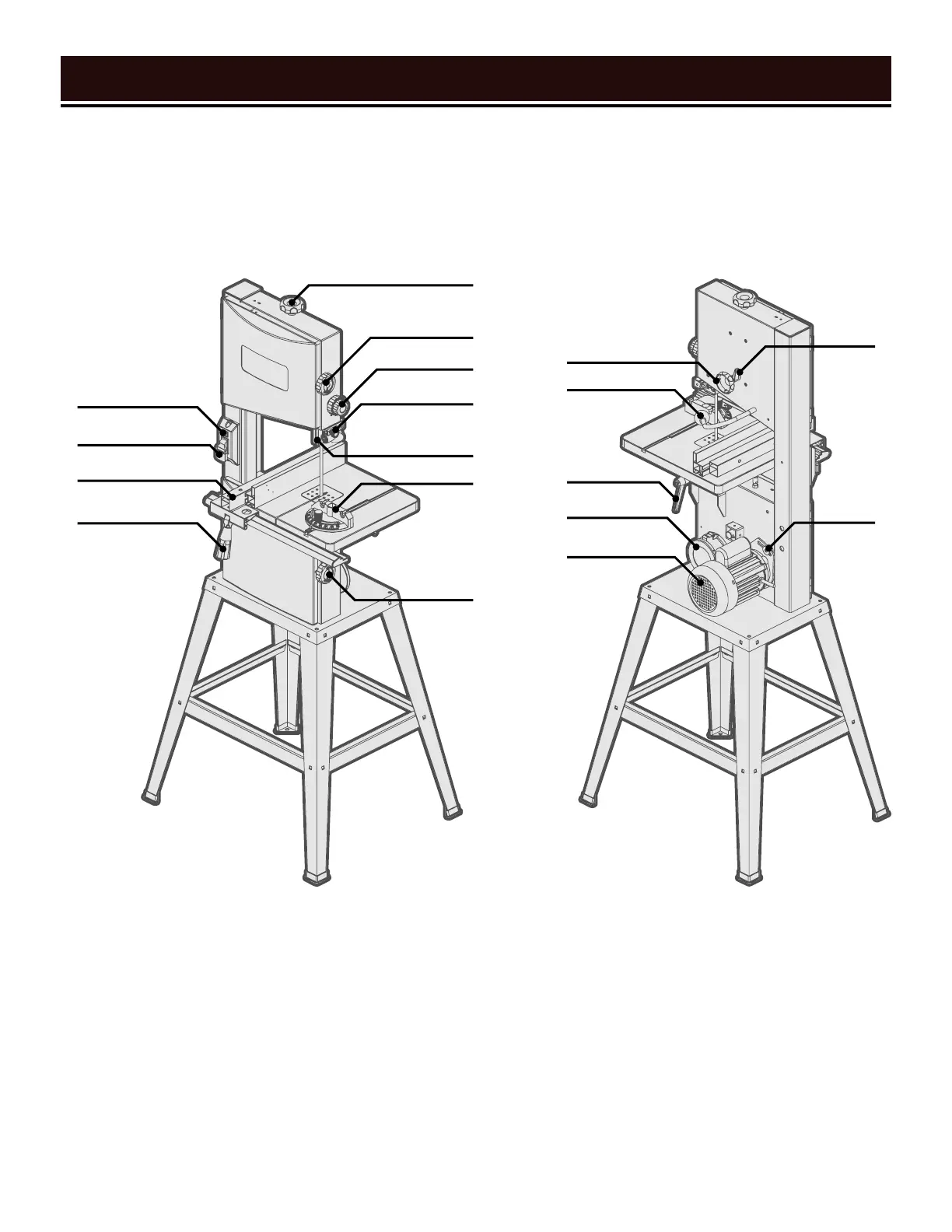

Band saws are used to cut wood. Refer to the following diagrams to become familiarized with all the parts and
controls of your band saw. The components will be referred to later in the manual for assembly and operation
instructions.
A. Light On/Off Switch
B. Power Switch
C. Fence Assembly
D. Fence Locking Lever
E. Lower Housing Knob
F. Miter Gauge
G. Upper Blade Guide
H. Blade Bearing Adjustment Knob
I. Blade Guide Adjustment Knob
J. Upper Housing Knob
K. Blade Tension Knob
L. Blade Tracking Adjustment Knob
M. Work Light
N. Table Bevel Lock
O. Dust Port
P. Motor
Q. Motor Tension Release
(Hex Bolt)
R. Tracking Lock Knob
